Multibrackets 40″ – 86″ 800×400 VESA Universal Tilt Large Wallmount | 7350105216572

• Description
• Specifications
• Downloads

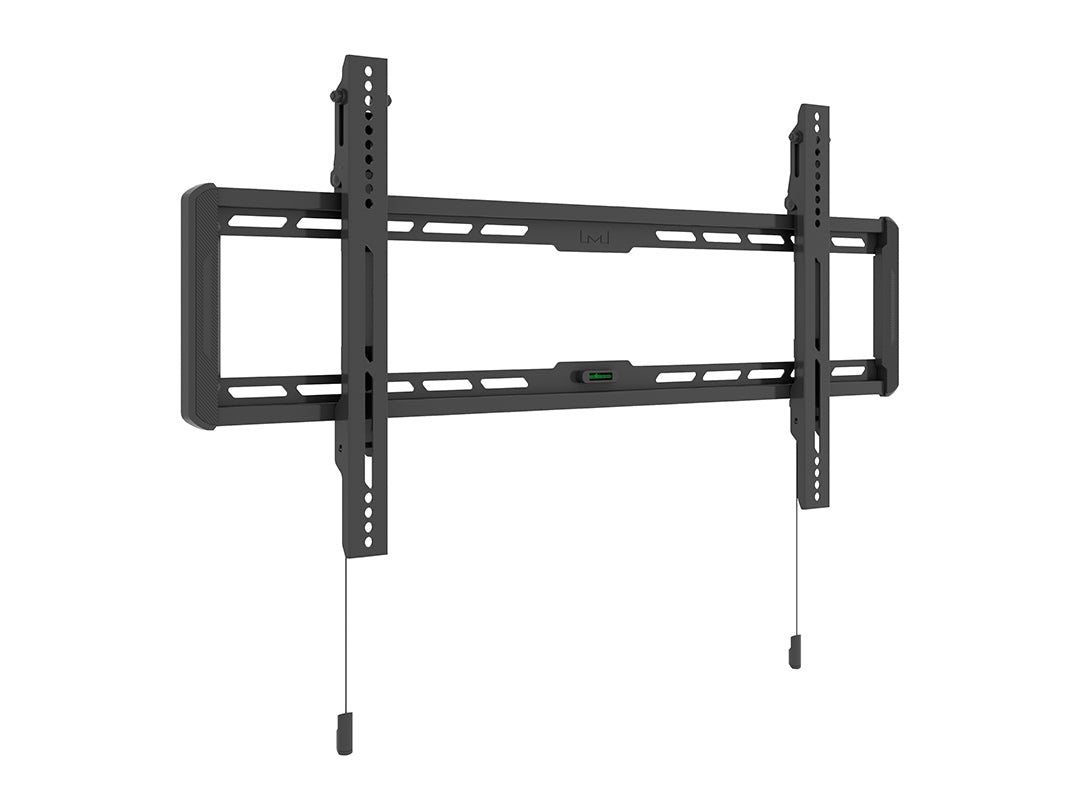

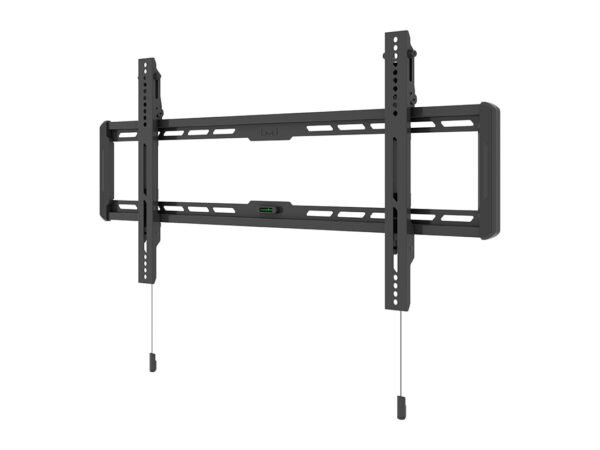

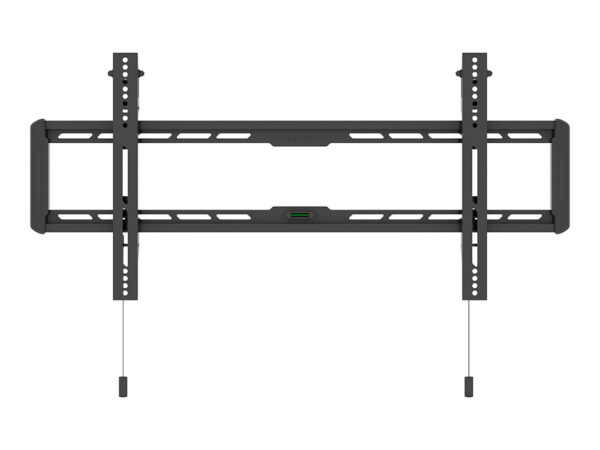

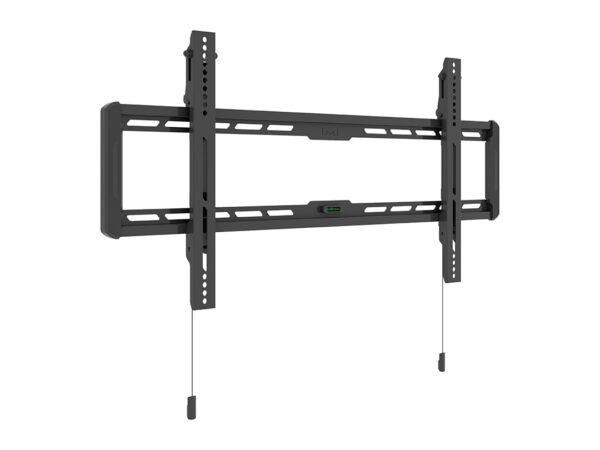

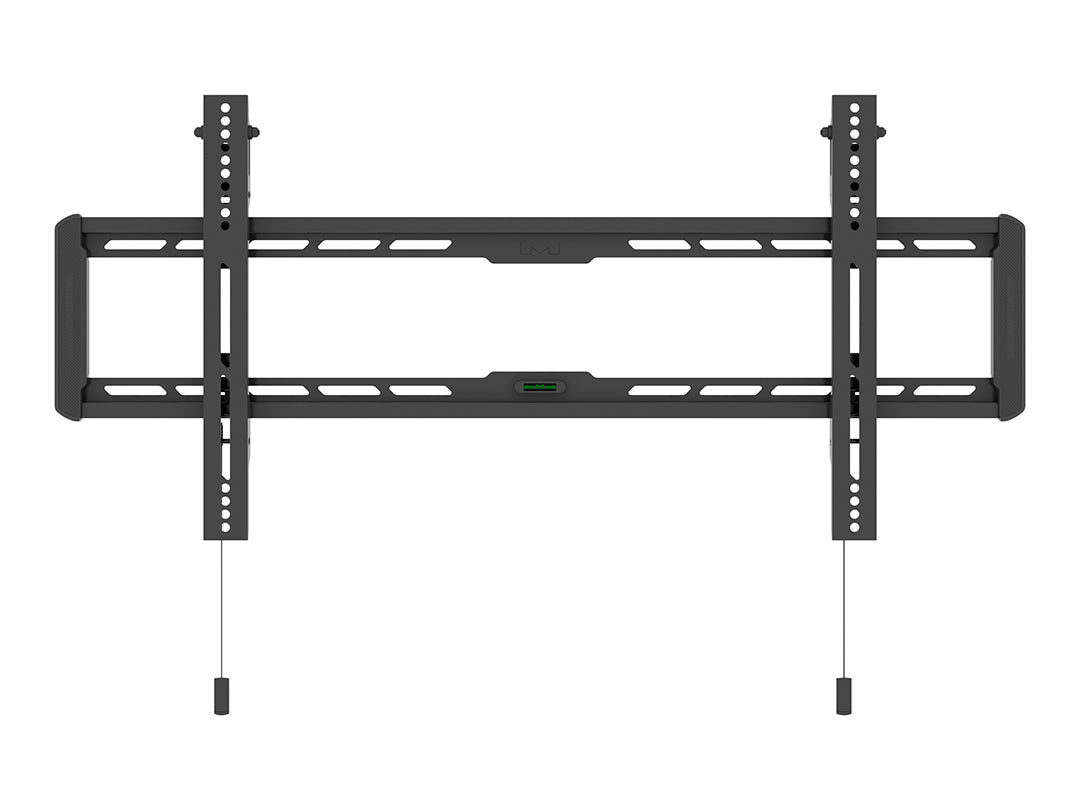

• Multibrackets 40″ – 86″ 800×400 VESA Universal Tilt Large Wallmount


  Multibrackets M Universal Wallmount Tilt Large – Wall mount for LCD/ LED panels – black – screen size: 40″ – 86″ – VESA: 100×100 to 800 x 400mm
  The Multibrackets M Universal Wallmount Tilt Large is a low profile tilt wall mount for 40″ to 86″ flat-panel TVs up to 60 kg. Its flush design allows it to sit just 23mm from the wall focusing looks on your TV and not the mount. Its solid construction of steel is both strong and durable. After installation the TV can slide left and right on wall plate after mounting and thus give the end-user a possibility to perfect position the TV after installing it. The quick release straps on the mounting brackets stays hidden with Multibrackets Smart magnet system, but are when needed easily pulled down to unlock the TV from the wall plate for cable access.

  The Multibrackets M Universal Wallmount Tilt Large includes a 5 year warranty.

  Highlights
  Holds TVs up to 86″ or 60 kg
  Supports VESA up to 800×400
  Low profile design offers sufficient room for cable connections and cooling
  Multibrackets quick release straps with smart magnets makes single-person installation possible
  Open frame provides ample room for power and A/V cutouts behind TV
  Vertical rails slide on wall plate for minor left/right lateral shift after installation
  Full hardware kit included

• Property	Value
  Screen Size	40-86″
  Universal & VESA Standard	200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×300, 600×400, 700×400, 800×400 mm
  Article No	7 350 105 216 572
  Colour	Black
  Max Load	60 kg
  Tilt	Yes
  Gross Weight	2.9 kg
  Warranty	5 years
  Distance to Wall	23 mm
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	0 x 0 x 0 cm
  Package Weight	0 kg
  Distribution Package Specification
  Retail Package Parcels	1 pcs
  Package Measurements	0 x 0 x 0 cm
  Package Weight	0 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Manual	Downloads
