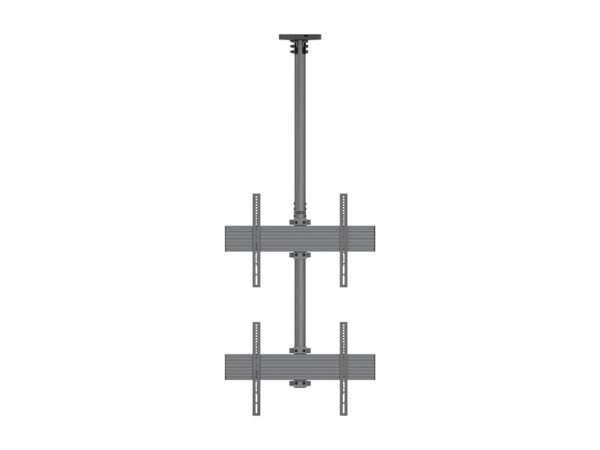

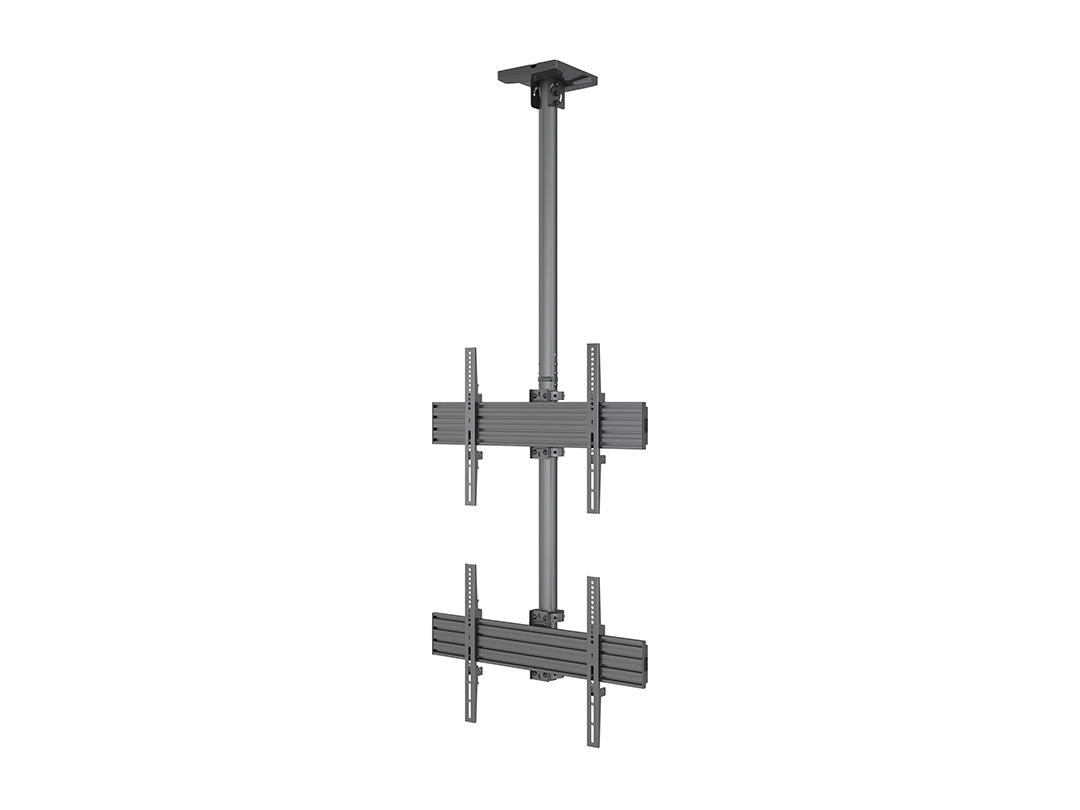

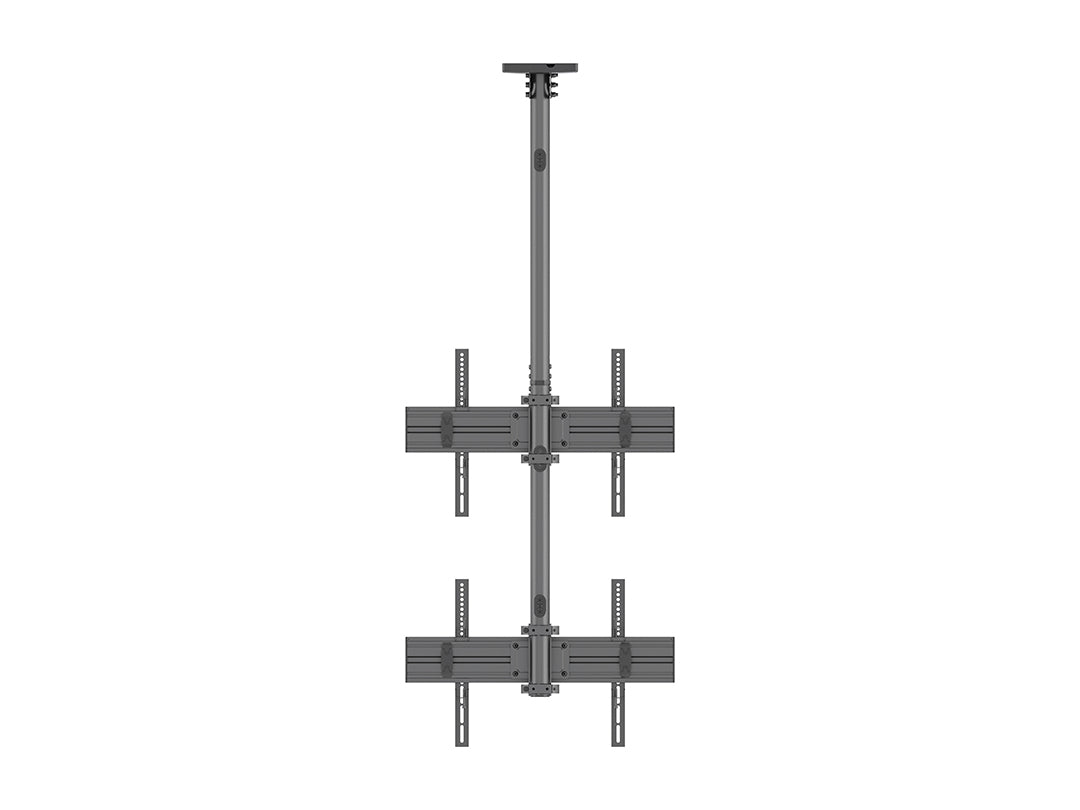

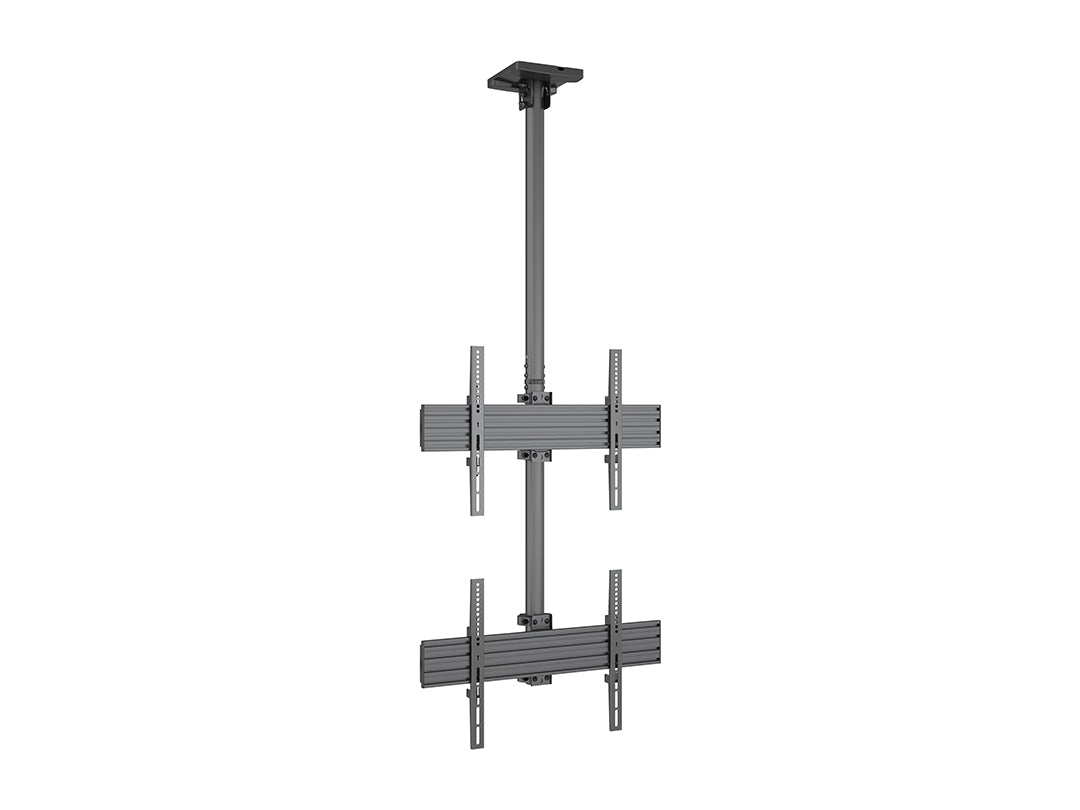

• Multibrackets MB3545/MBC2U

  Dual Display Menu Board Ceiling Mount Pro

  M Ceiling Mount Pro MBC2U – Ceiling mount for LCD display, steel, 3m length, 2 screens, single side, fixed arms, VESA Max 600×400 – screen size: 40″-65″ – black
  Multibrackets Pro Series M Ceiling Mount Pro MBC2U is our innovative – ready to be installed Single-Display Ceiling Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC2U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

  With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

  Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

  Highlights
  A professional, flexible and modular product
  Includes VESA adapters for compatibility up to VESA 600×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast and safe installation
  Ceiling plate included
  Portrait or landscape position of screen possible
  Hardware kit included

• Attribute	Value
  Article No	7 350 073 733 545
  For Screen Size	40”-65″
  Type	Single Side MBC2U
  Universal & VESA Standard	Adjustable from 100×100 to 600×400 max
  Optional VESA	800×600
  Material	Steel, Aluminium
  Color	Black
  Surface Finish	Powder Coating/Anodic Oxidation
  Weight	17 kg
  Measurements	69x338x20 cm
  Max Load	50 kg per screen (TUV approved at 30 kg per screen)
  Pillar Length	Min: 580mm to Max: 1550 mm from ceiling to VESA plate center
  Extension Pipes	3m (800mm*4pcs) included
  Fixed	Yes
  Swivel	Yes, 360°
  Rotate	No
  Cable Management	Yes
  Options	Extension Pipes: 0.8m, 1.5m, 3.0m
  Certifications	CE
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	83 x 21 x 18 cm
  Package Weight	17.00 kg
