Multibrackets 40″ – 100″ MBC1USD Display Ceiling Mount Pro | 7350105214660

• Description
• Specifications
• Downloads

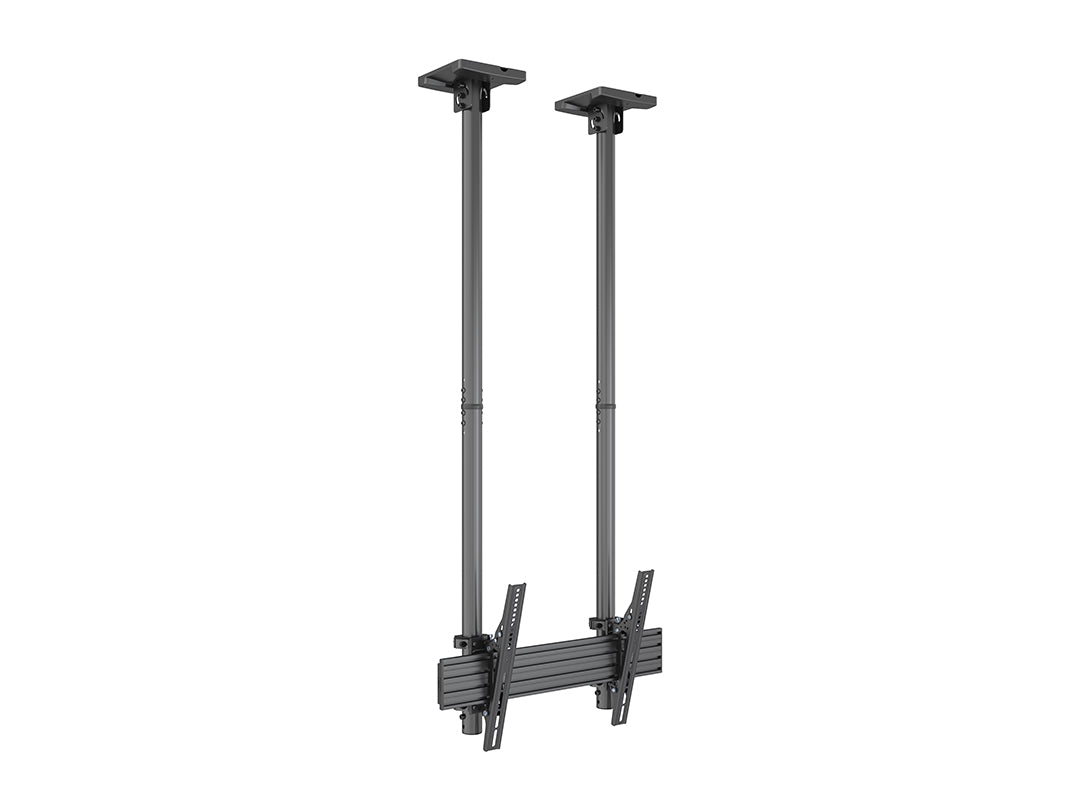

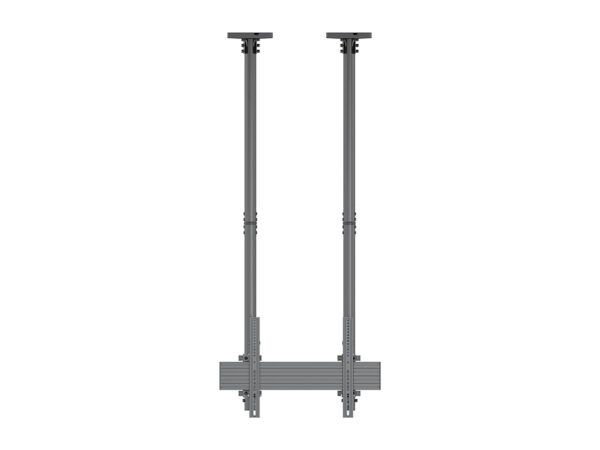

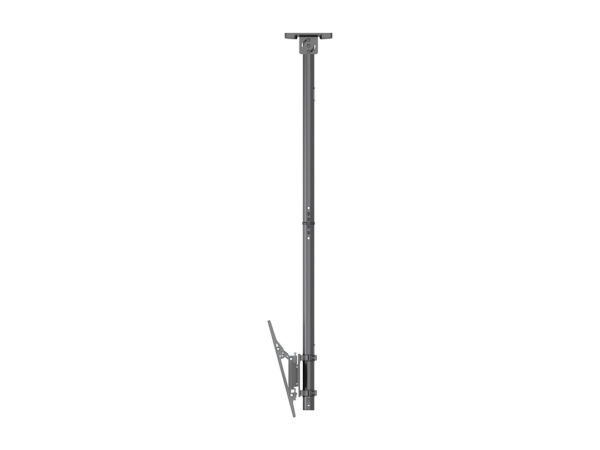

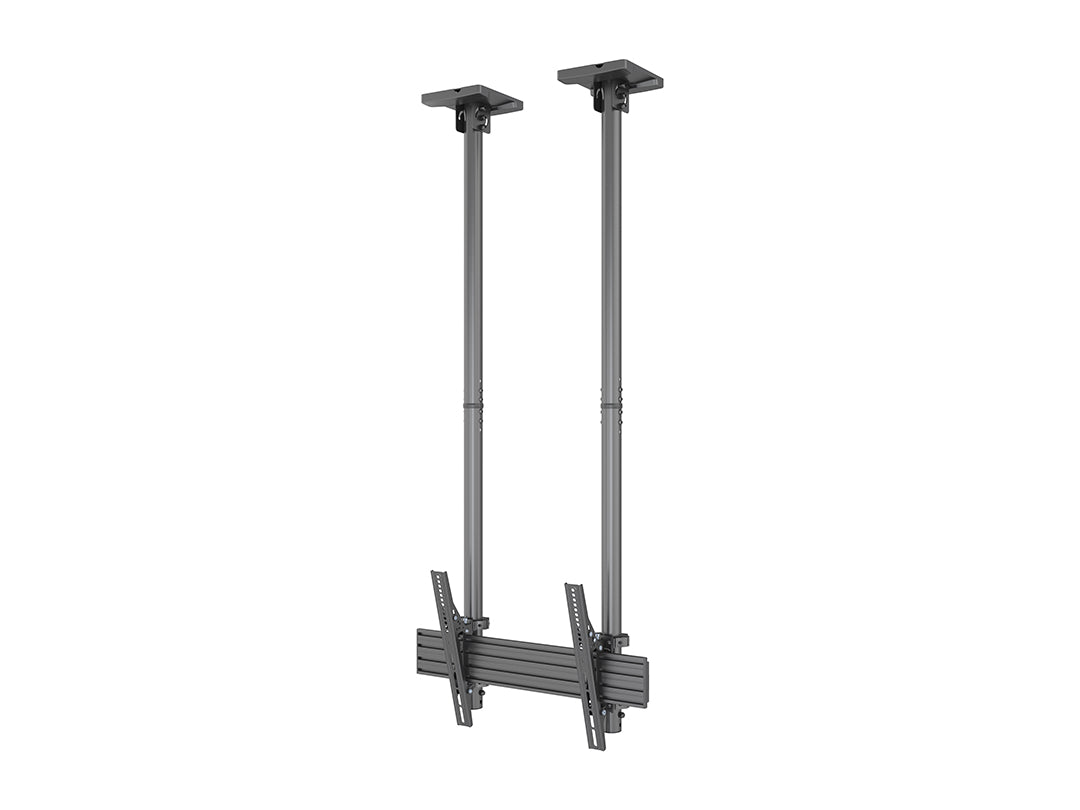

• Multibrackets 40″ – 100″ MBC1USD Display Ceiling Mount Pro

  M Ceiling Mount Pro MBC1USD 600 – Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, VESA Max 600×400 – screen size: 40″- 100″ – black
  Multibrackets Pro Series M Ceiling Mount Pro MBC1USD 600 is our innovative – ready-to-be-installed Single-Display Ceiling Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1USD 600 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

  Its modular construction installers have vast possibilities to change, update, and reconfigure its design if ideas change over time then the Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice are vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so a basic installation should not be a hassle.

  Multibrackets Pro Series Ceiling Mounts are ideal for any large-screen digital signage ceiling application.

  Highlights
  Up to 100″ displays
  A professional, flexible, and modular product
  Includes VESA adapters for compatibility up to VESA 600×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  Portrait or landscape position of the screen possible
  Hardware kit included

• Article No	7 350 105 214 660
  For screen size	40″-100″
  Type	Single Side
  Universal & VESA standard	100×100, 200×200, 300×300, 400×400, 600×400
  Material	Steel, Aluminium, Plastic
  Color	Black
  Surface Finish	Powder coating
  Weight	14.4 kg
  Measurements	85 x 20.0 x 14.6 cm
  Max Load	120 kg per screen
  Pillar length	580 mm to 1550 mm
  Tilt	Yes, -6°~+15°
  Swivel	Yes, 360°
  Rotate	0°
  Cable Management	Yes
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	0 x 0 x 0 cm
  Package Weight	0 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  PDF Catalogue	Downloads
