Multibrackets 40″-100″ MBC1UPSD Display Ceiling Mount Pro | 7350073736133

• Description
• Specifications
• Downloads

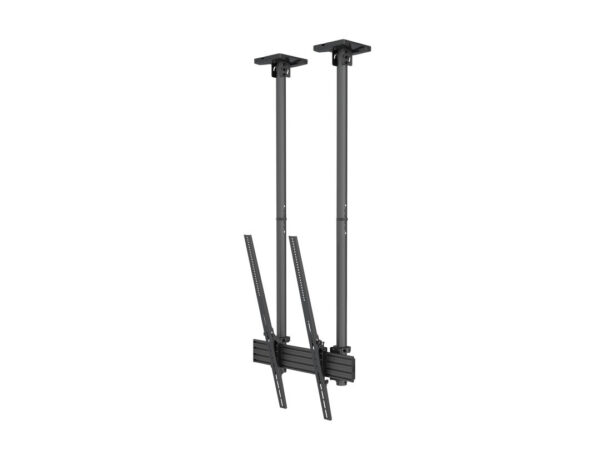

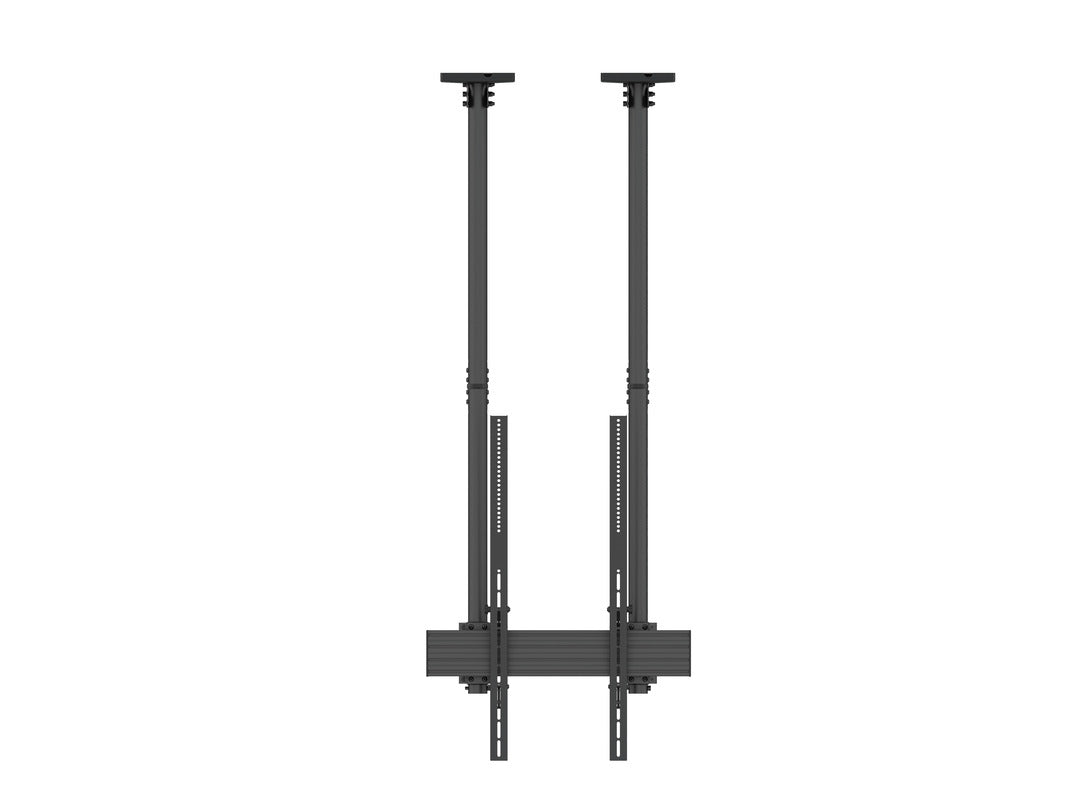

• Multibrackets 40″-100″ Display Ceiling Mount Pro

  M Ceiling Mount Pro MBC1UPSD – Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, max load 180kg, VESA max 600×900 – screen size: 40″-100″ – black
  Multibrackets Pro Series M Ceiling Mount Pro MBC1UPSD is our innovative – ready-to-be-installed Single-Display Super Duty Ceiling Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1USD is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

  Its modular construction installers have vast possibilities to change, update, and reconfigure its design if ideas change over time then the Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice are vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so a basic installation should not be a hassle.

  Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

  Highlights
  Suitable for larger screens
  Holds 180kg max load
  A professional, flexible, and modular product
  Includes VESA adapters for compatibility up to VESA 600×900
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  Ceiling plate included
  Portrait or landscape position of the screen possible
  Hardware kit included

• Article No	7 350 073 736 133
  For screen size	40”-100″
  Type	Single Side MBC1U
  Universal & VESA standard	Adjustable from 100×100 to 600×900 max
  Material	Steel, Aluminium
  Color	Black
  Surface Finish	Powder coating/Anodic Oxidation
  Weight	12 kg
  Measurements	69x178x20 cm
  Max Load	180 kg
  Pillar length	Min: 580mm to Max: 1550 mm from ceiling to VESA plate center
  Extension pipes	1.5m (800mm*4pcs) included
  Tilt	Yes, -6°~+15°
  Swivel	Yes, 90°
  Rotate	Yes, ±4°
  Cable Management	Yes
  Options	Extension pipes: 0.8m, 1.5m, 3.0m
  Certifications
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	96 x 20.5 x 19.8 cm
  Package Weight	13.00 kg
