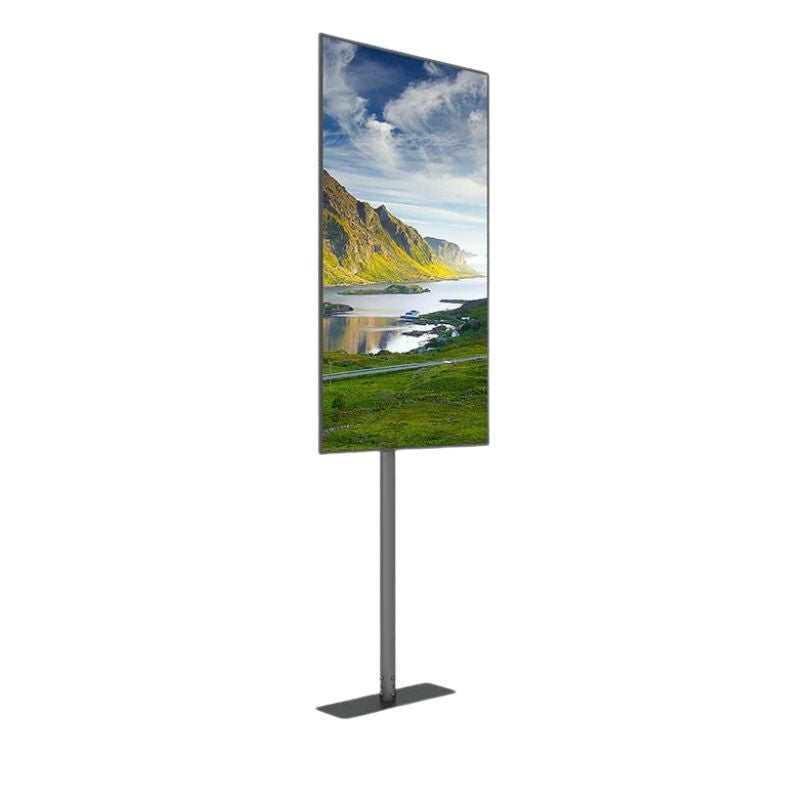

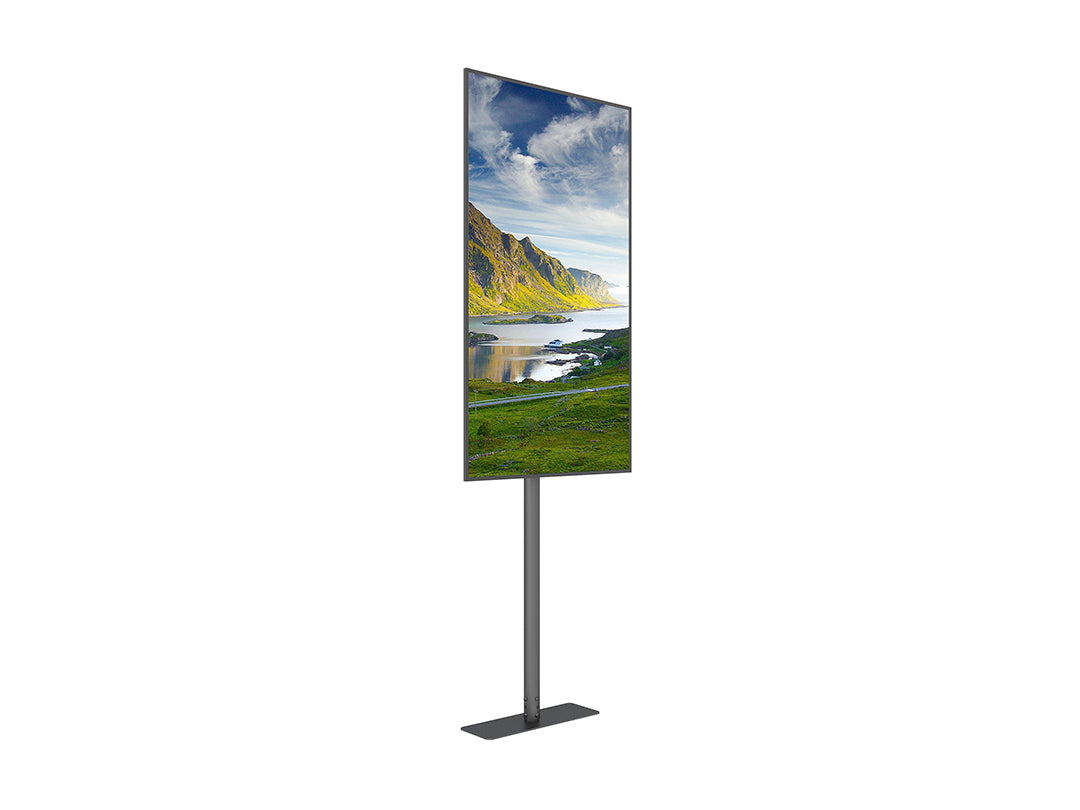

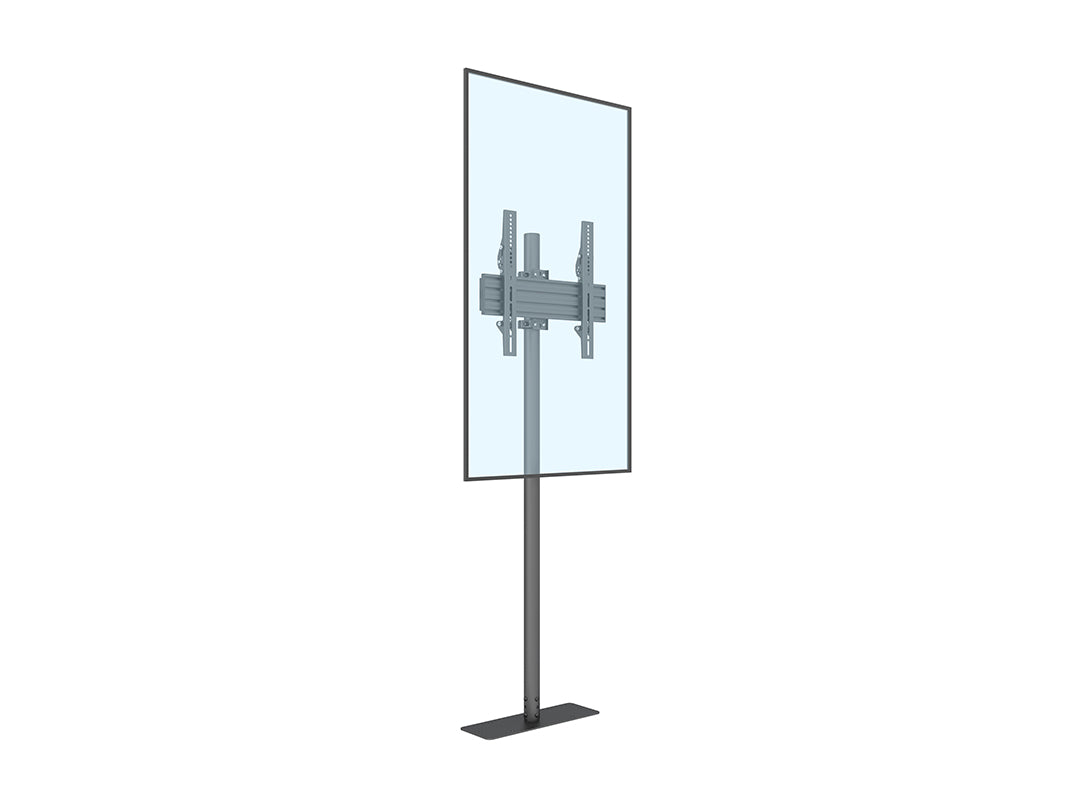

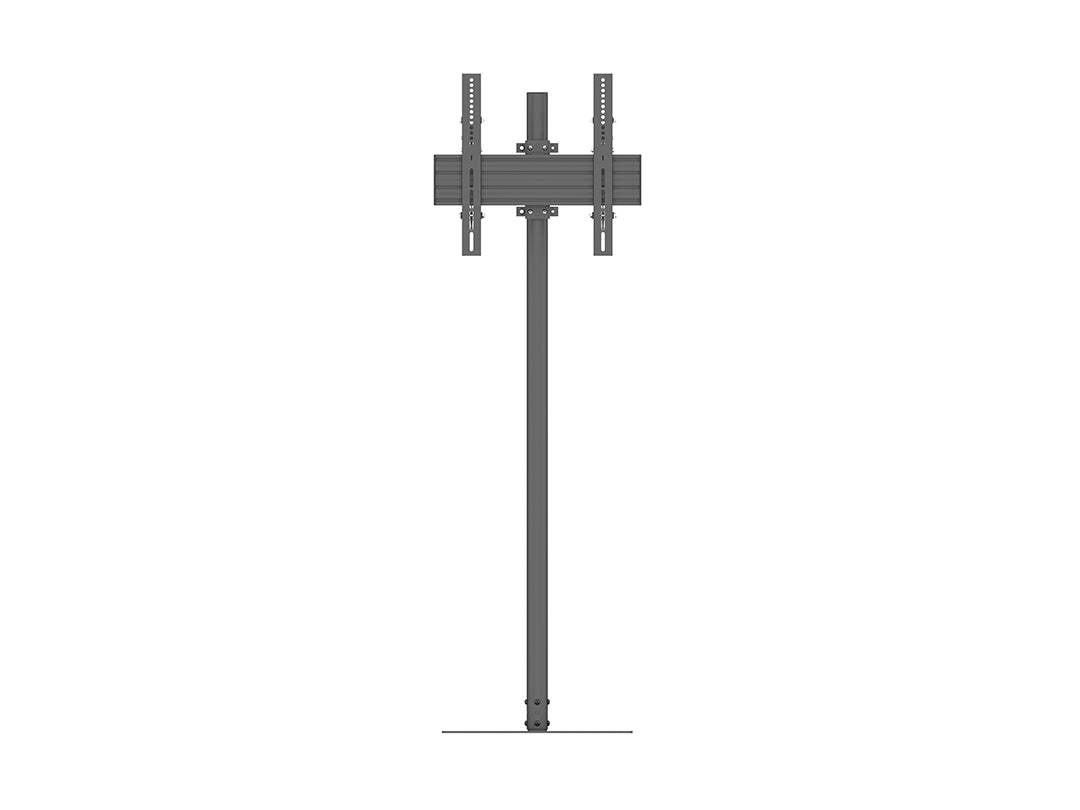

Multibrackets 32″-65″ Landscape / Portrait 1.5m Pole Floor Mount Pro Display

• Description
• Specifications
• Downloads

• Multibrackets 32″-65″ Landscape / Portrait 1.5m Pole Floor Mount Pro Display

  Floorstanding Bracket for Fixed Pole Floormount Pro up to 32″-65″ – Multibrackets Floorstand mount for Digital signage display, steel, 1.5m length, 1 screen, single side, VESA Max 400×400 – screen size: 32″-65″ – black
  Multibrackets Pro Series M Single Pole Floormount Pro 32″-65″ is our innovative – ready to be installed as a Single Side-Display Floorstand Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Single Pole Floormount Pro 32″-65″ is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

  With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

  Multibrackets Pro Series Public Floor Mounts is ideal for any large screen digital signage floor application.

  Highlights
  A professional, flexible and modular product
  Includes VESA adapters for compatibility up to VESA 400×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast and safe installation
  Floor plate included
  Portrait or landscape position of screen possible
  Hardware kit included

• Attribute	Details
  Article No	7 350 073 738 939
  Color	Black
  For Screen Size	32″-65″
  Universal & VESA Standard	100×100 200×200 300×300 400×400
  Material	Steel, Aluminium, Plastic
  Surface Finish	Powder Coating
  Weight	11 kg
  Measurements	1601815 cm
  Max Load	50 kg per screen
  Height	10 mm Height Adjustment
  Tilt	-6°~+15°
  Swivel	0°
  Rotate	0°
  Installation	M Pro Series
  Cable Management	N/A
  Options	Article no: 7350073738939
  Warranty	5 Years
  Retail Package Specification	Parcel 1: 50.5×18.4×15.8cm 8kg, Parcel 2: 154.5×6.0x6.5cm 3.5kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
  PDF Catalogue	Downloads
