Multibrackets 30″ – 42″ MBC4X1U Display Ceiling Mount Pro | 7350105212277

• Description
• Specifications
• Downloads

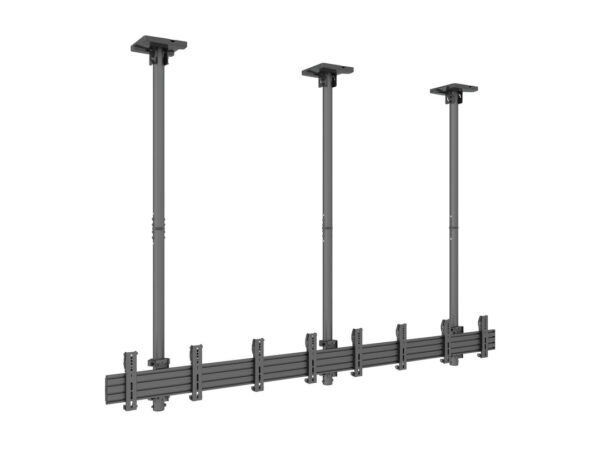

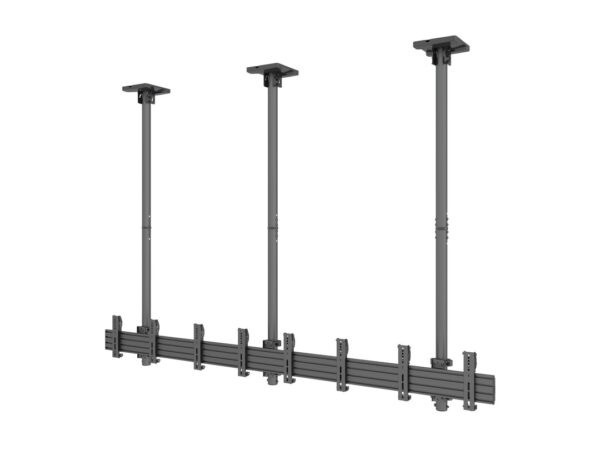

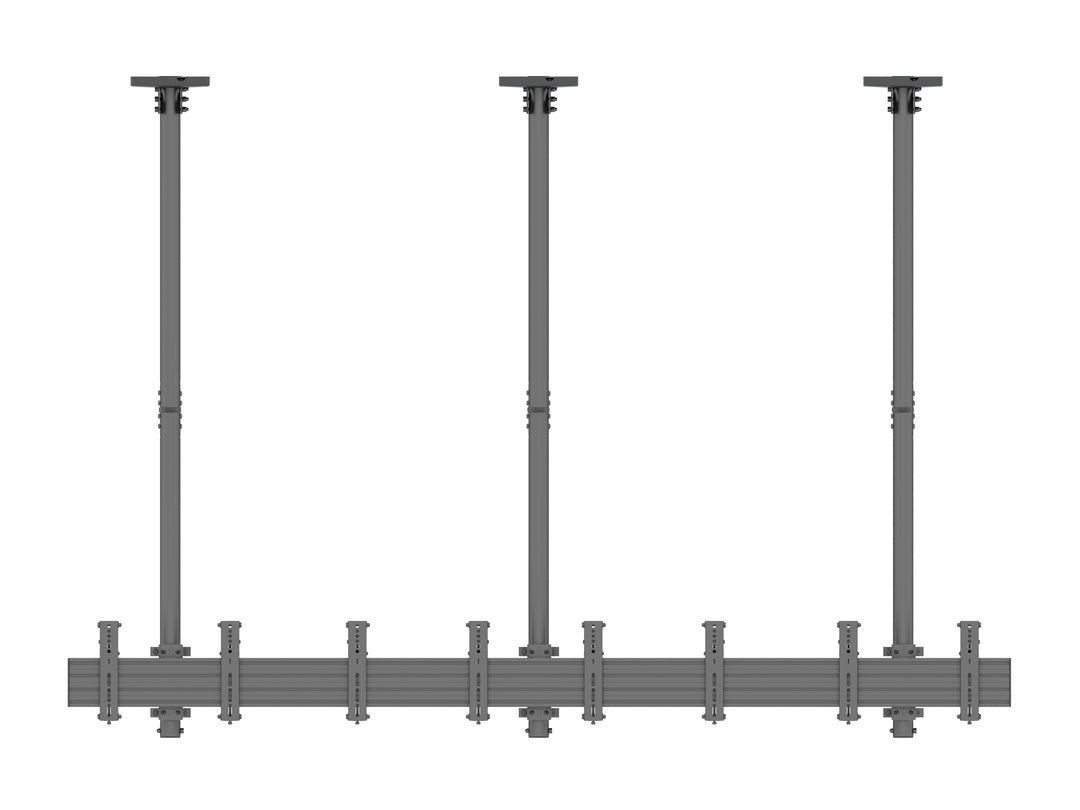

• Multibrackets 30″ – 42″ MBC4X1U Display Ceiling Mount Pro

  M Ceiling Mount Pro MBC4X1U, VESA 200 – Ceiling mount for LCD display, steel, 3m length, 4 screens, single side, tilt arms, VESA Max 200×200 – screen size: 30″-42″ – black
  Multibrackets Pro Series M Ceiling Mount Pro MBC4X1U, VESA 200 is our innovative – ready-to-be-installed Single-Display Ceiling Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC4X1U, VESA 200 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

  Its modular construction installers have vast possibilities to change, update, and reconfigure its design if ideas change over time then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice are vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so a basic installation should not be a hassle.

  Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

  Highlights
  A professional, flexible, and modular product
  Includes VESA adapters for compatibility up to VESA 200×200
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  Ceiling plate included
  Portrait or landscape position of the screen possible
  Hardware kit included

• Article No:	7 350 105 212 277
  For screen size:	30″-42″
  Type:	Single Side MBC4X1U
  Universal & VESA standard:	Adjustable from 75×75, 100×100, 100×200, 200×100 to 200×200 max
  Optional VESA:	800×600
  Material:	Steel, Aluminium
  Color:	Black
  Surface Finish:	Powder coating/Anodic Oxidation
  Weight:	36 kg
  Measurements:	530x338x20 cm
  Max Load:	30 kg per screen
  Pillar length:	Min: 580mm to Max: 1550 mm from ceiling to VESA plate center
  Extension pipes:	1.5m (800mm*2pcs) included
  Tilt:	Yes, -6°~+15°
  Swivel:	Yes, 360°
  Rotate:	Yes, ±4°
  Cable Management:	Yes
  Options:	Extension pipes: 0.8m, 1.5m, 3.0m
  Certifications:	CE, TÜV Nord
  Warranty:	5 years
  Retail Package Specification:
  Package Parcels:	1 pcs
  Package Measurements:	0 x 0 x 0 cm
  Package Weight:	0.00 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
  PDF Catalogue	Downloads
