Moove Tilting 32″ – 70″ Screen Floor Trolley | AS02B04T01NT

• Description
• Specifications
• Downloads

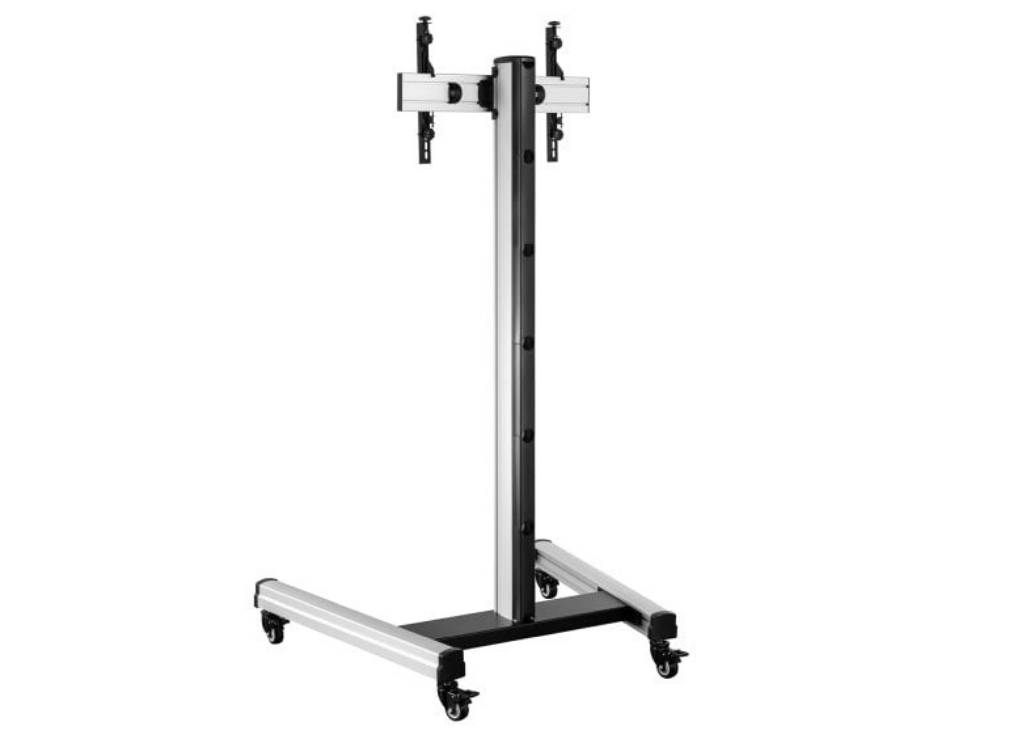

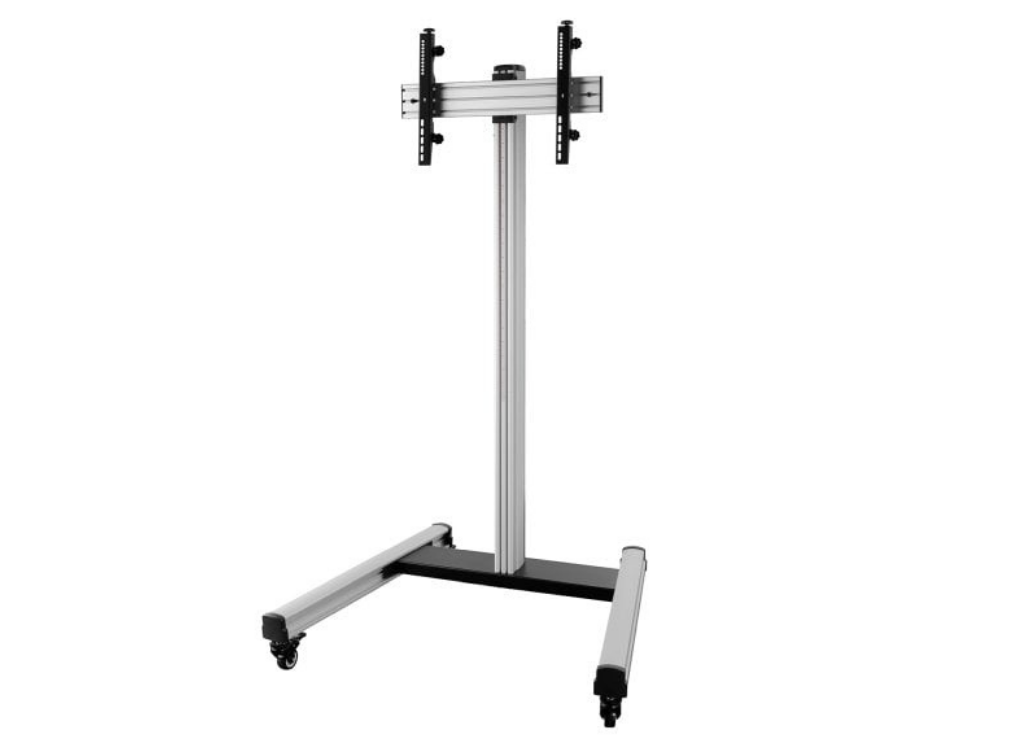

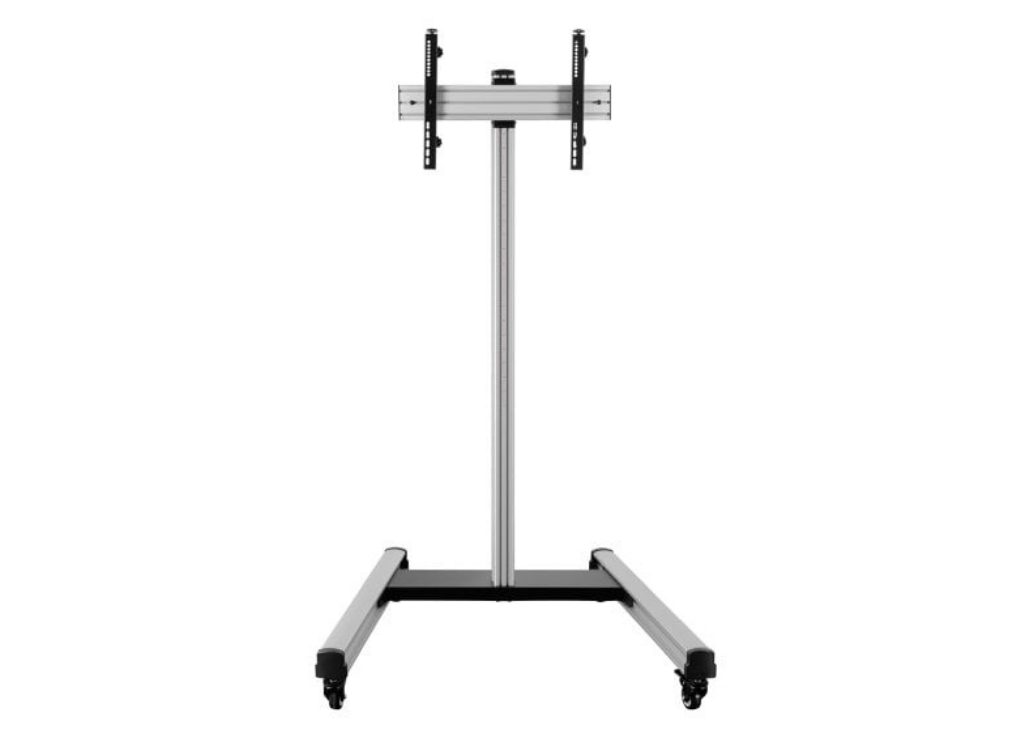

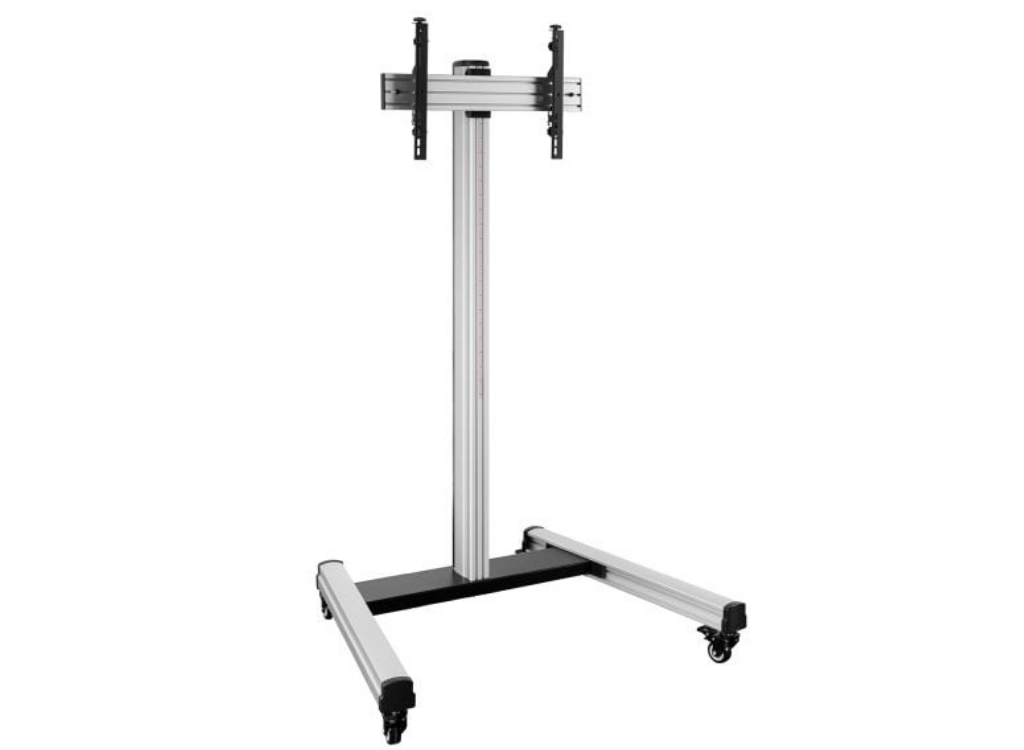

• Moove Tilting 32″ – 70″ Screen Floor Trolley

  Designed for commercial use and public spaces
  Stylish and lightweight for easy mobility
  Suitable for most 32”-70” screens
  Tilting range of -2° to +2°
  Maximum VESA pattern: 600x400mm
  Maximum weight capacity: 65kg/143lbs
  Integrated cable management design
  Castors with brakes for increased stability
  Powder coated and oxidized finish

• Feature	Details
  Mount Type	Tilting Floor Trolley
  Mounting Pattern	Universal
  Material	Aluminium, Steel, Plastic
  Material Finish	Powder coated and oxidized
  Recommended Screen Size	32″-70″
  Weight Capacity	65kg/143lbs
  Load Tested	3 times weight capacity approved
  Maximum Hole Pattern (WxH)	610x408mm
  Compatible VESA Patterns	200x200mm, 300x200mm, 300x300mm, 400x400mm, 600x400mm
  Maximum VESA Pattern (WxH)	600×400
  Tilt	-2° to +2°
  Swivel	0°
  Rotation	0°
  Level Adjustment	0°

• Description	Downloads
  Data Sheet	Downloads
  Technical Drawing	Downloads
