• Moove 75″ Freestanding PCAP Outdoor Touch Screen Poster


  PCAP Touch Screen
  State-of-the-art projected capaciti ve technology provides the most responsive and sensiti ve touch experience available, as well as off ering superior opti cal quality. Unlike other touch technologies, PCAP is not aff ected by dust or debris on the surface of the screen.


  Vandal Proof
  With a 2mm thick mild steel enclosure and 5mm thermally-toughened glass front, these IK10 rated displays are designed to withstand damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.


  Direct Sunlight Readable
  Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.


  Weatherproof
  Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.

  No Ghost Touch
  The electrodes that control the interactivity are sandwiched between two layers of special protective glass to prevent phantom touches. This ensures ultimate accuracy and a seamless touch experience.


  Easy Maintenance

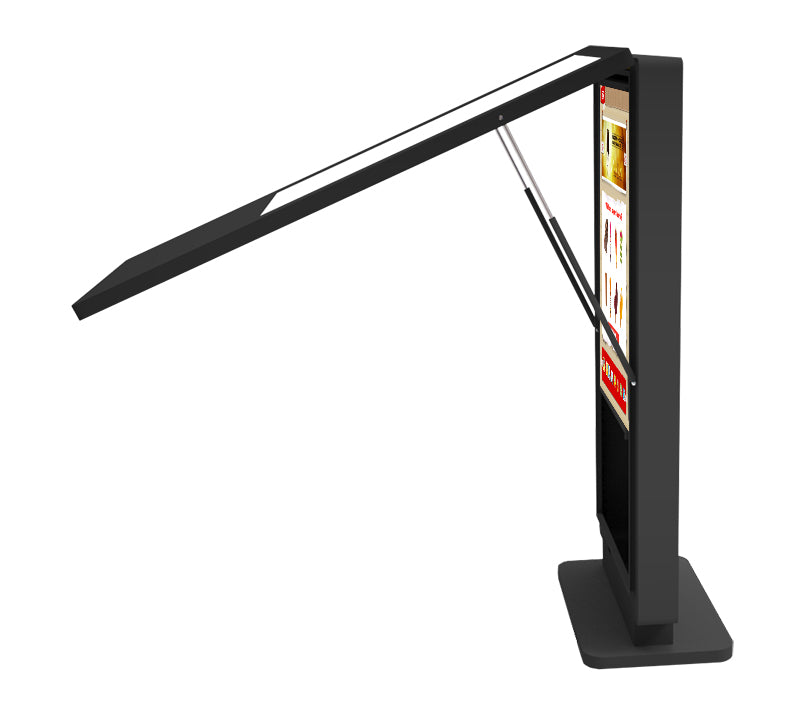

  These displays use hydraulic cylinders to allow easy front access to the internal components, ensuring that maintenance is simple and straightforward.


  Internal Locker
  Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.


  Advanced Temperature Control System
  To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.


  Anti-Reflective Glass
  The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.


  Ultimate UV Protection
  The front glass of the display utilises a special UV treatment that reduces the internal heat of the enclosure by up to 71%; reducing the number of cooling fans needed and increasing the life of your display

• Category	Details
  Panel
  Resolution	3840×2160
  Display Area (mm)	928×1650
  Aspect Ratio	16:9
  Brightness (cd/m2)	2,500
  Colour	16.7 Million
  Viewing Angle	178°
  Contrast Ratio	8000:1
  Touch
  Touch Technology	Projected Capacitive
  Touch Points	10
  Glass Hardness	7H Minimum
  AV Inputs
  Video	HDMI, VGA
  Power
  Power Consumption (W)	750
  Input Voltage	AC110240V (50Hz60Hz)
  Mechanical
  Unit Size (WxHxD mm)	1230×2422.5×247
  Package Size (WxHxD mm)	To be confirmed (TBC)
  Footprint (WxHxD mm)	1260×600
  Net Weight (kg)	To be confirmed (TBC)
  Gross Weight (kg)	To be confirmed (TBC)
  IK Rating	IK10
  Environmental
  Operating Temperature	-20 °C to 50 °C
  Operating Humidity	10% – 80%
  Storage Temperature	-30°C – 60°C
  Storage Humidity	5% – 90%
  Enclosure Protection	IP65
  Computer
  Media Formats	Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
  Media Resolution	1920×1080/1080×1920
  Internal Memory	6GB
  CPU	Quad-Core Cortex-A17 @1.61GHz
  GPU	Mali-T760 MP4 @600MHz
  RAM	2GB DDR3
  Internal Storage	8GB NAND
  USB	USB2.0 HOST (x2)
  LAN	10/100M Ethernet
  Wi-Fi	802.11b/g/n/ac
  OS	Android 5.1.1
  Graphic Engine	OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
  Accessories	Included AC Power Cable, Remote Control
  Optional	Network Upgrade, Camera
  Warranty
  Warranty Period	3 Year Warranty
  Technical Support	Lifetime

• Description	Downloads
  Spec Sheet	Download
  Technical Drawing	Download
