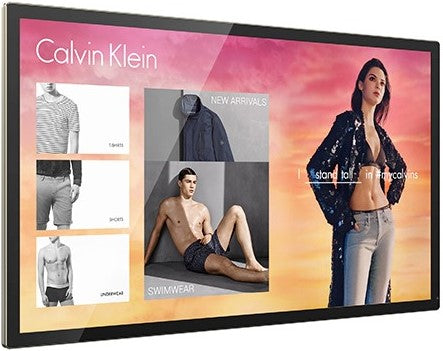

Moove 50″ PCAP Open Frame Touchscreen Monitor
- Description
- Specifications
- Warranty
- Downloads
-
Commercial Open Frame Touch Displays with Windows OPS PC Slot
PCAP TOUCH SCREEN MONITORS
(22”-55”) Other sizes available on request
Interactive touch solution with open frame and integrated Windows options available; ideal for kiosk integration or wall-mounted applicationsOpen Frame Option
These open frame touch screen monitors are ideal for system integrators. With an underside mounting bracket included at no extra cost, this flexible solution can be mounted into any kiosk, table or cabinet in any direction or orientation. The bracket also features micro-adjustment in all three directions to enable flush-fit surface integration. Alternatively, these monitors can be wall or stand mounted thanks to their complete enclosure.Optional Integrated Windows PC
Easily transform this solution from an interactive touch monitor into a fully integrated all-in-one Windows touch screen simply by inserting an OPS PC into the built-in slot, with no cables required. To prevent theft or damage, this can be secured with a hex security screw.
10-Point PCAP Touch
Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out – much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.
Surface Plasma Treatment
A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures. Unlike other touch screens on the market, this glass is not etched, which vastly enhances the optical clarity.
24/7 Commercial Use
These monitors are designed for continuous use in public spaces, able to be used 24/7 for over 70,000 hours. Built using true commercial grade components and having undergone rigorous quality control testing, they offer a reliable and cost-effective solution.
500cd/m² IPS Panel
With a brightness of 500cd/m², these monitors are ideal for brightly-lit public spaces. Plus, commercial grade IPS technology ensures accurate image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientation.
Complete Monitor Solution
Giant Tablet Styling
A stylish edge-to-edge glass face, rounded corners, aluminium surround with unique concave indent profile, and thin black border deliver a captivating tablet-like aesthetic. The protective tempered glass face and mild steel enclosure also increase the durability of the display, protecting the LCD panel and other internal components from potential damage in public spaces.
Budget Friendly Touch Monitor
For projects where interactivity is required but costs need to be kept to a minimum these displays are perfect. If you have your own PC or media player and need to add a stylish touch screen monitor, look no further. Simply connect your media source via HDMI and USB and away you go.
Integrated Speakers
For applications that require an audio element, these monitors feature two integrated slimline speakers. -
Feature Specification Display Size 50 Inch Model Name WP50A Resolution 3840×2160 Display Area (mm) 1075.8×606 Unit Size (mm) 1135.2×665.4×62.7 OPS PC Specification (mm) 200x119x30 (OPS) Package Size (mm) 1235x765x162 VESA Holes 400×400 Power Consumption (W) 55 Net Weight (kg) 30 Gross Weight (kg) 32 Contrast Ratio 1,000:1 Aspect Ratio 16:9 Brightness (cd/m²) 500 Viewing Angle 178° Colour 16.7M Touch Technology Projected Capacitive Touch Points 10 Glass Hardness 7H minimum Inputs HDMI Input Voltage AC220V Operating Temperature 0°C to 40°C Storage Temperature -20°C to 60°C Operating Humidity 10% to 80% Storage Humidity 5% to 95% Included Accessories Open Frame Mounting Bracket, Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial Optional Accessories Windows Slot-in OPS PC, Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand -
Warranty
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
-
Spec Sheet Download Link 50″ PCAP Touch Screen Monitors – Spec Sheet Download Technical Drawings Download Link 50″ PCAP Touch Screen Monitors – Technical Drawing Download User Manual Download Link PCAP Touch Screen Monitors – Open Frame Installation Guide Download OPS PC Spec Sheets Download Link Economical OPS Slot-in PC Intel® Celeron – Spec Sheet Download Premium OPS Slot-in PC Intel® Core™ i5 – Spec Sheet Download Photos Download Link PCAP Touch Screen Monitors – Images Download
