Portable Battery-Powered High Brightness Digital Signage Solution

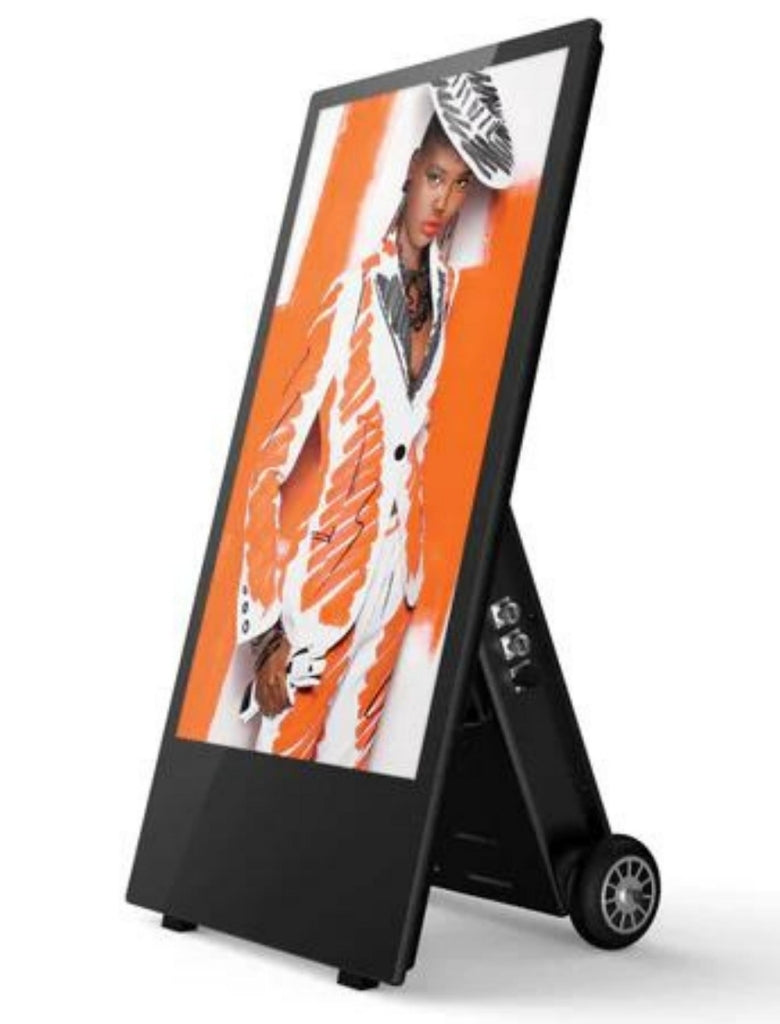

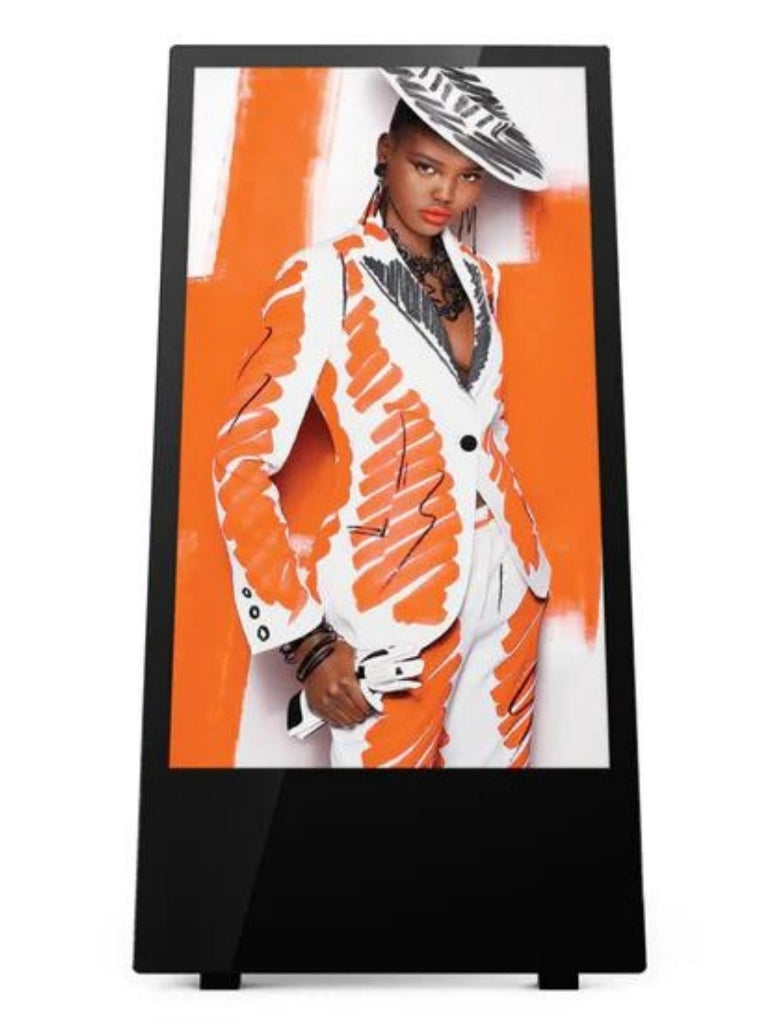

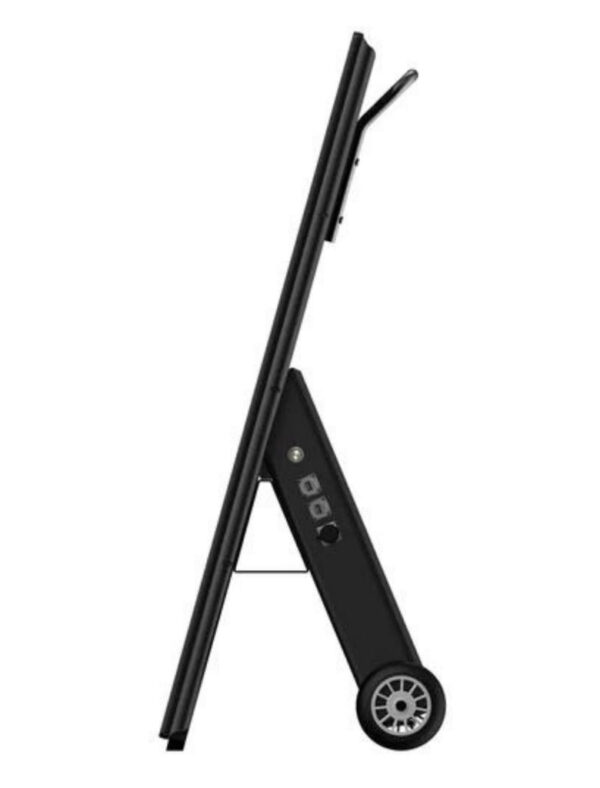

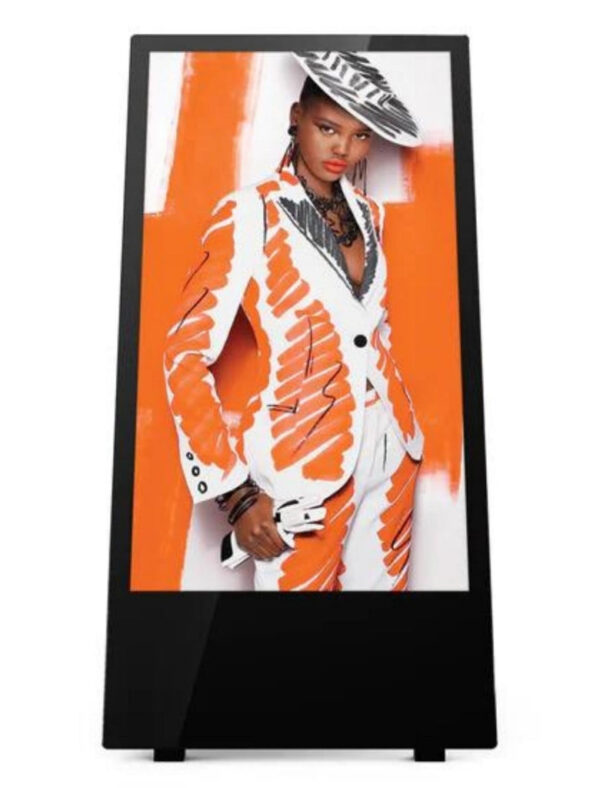

43″ OUTDOOR DIGITAL ANDROID BATTERY A-BOARDS
Fully portable solution for any space; display content all day and night on a single chargeFully Portable

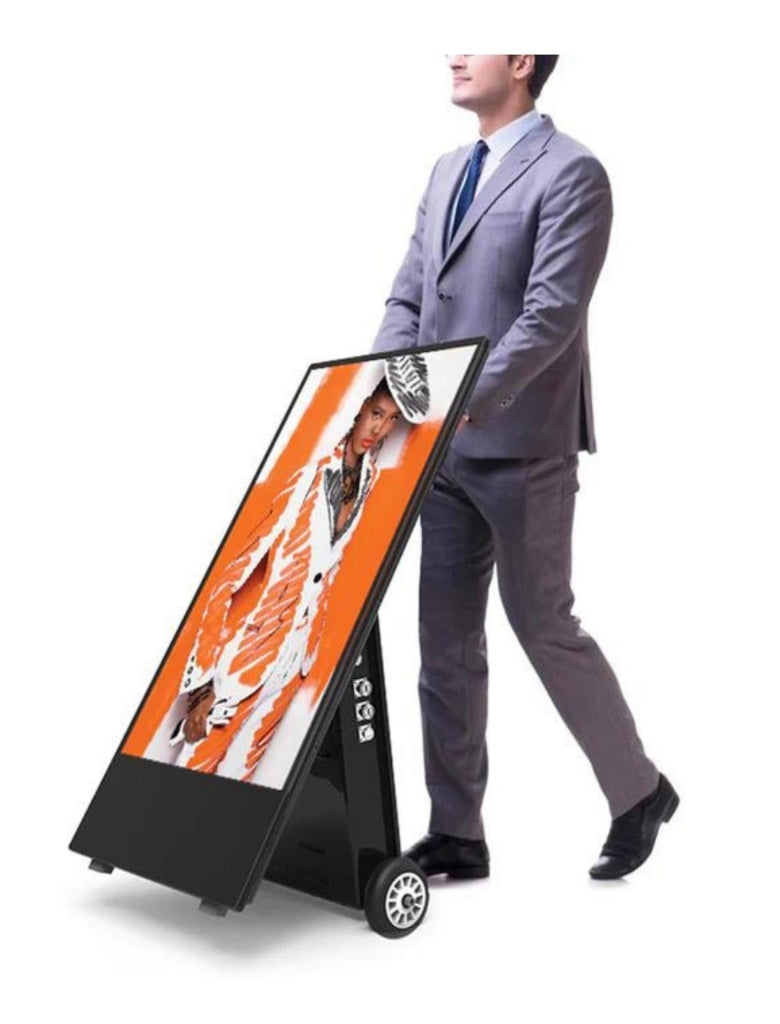

With a moulded polymer rear these displays are incredibly lightweight and this, along with their rugged castors, means they can easily be moved by one person. The specialised castors are designed to minimise vibrations on uneven surfaces, protecting the internal components for a longer product lifespan.
Tempered Anti-Glare Glass
These displays feature a tempered glass front that has been specially treated to give an anti-glare finish. This completely diffuses external light reflections without reducing the brightness of the screen, improving the readability of on-screen content.
Battery-Powered Display
The integrated lithium-polymer battery offers an amazing 27 hours run time from a single charge*, allowing you to display messaging all day and night without needing to recharge. A secure housing safely isolates this commercial grade battery from other components for total peace of mind.
*Excludes degradation and user damage caused by sulphation, deep cycling and overcharging
Fully Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65-rated outer casing. This means they can be used in any environment, come rain or shine.
700cd/m² High Brightness
These displays strike the perfect balance between brightness and battery life. With a high brightness panel which is up to three times brighter than a domestic TV, the screen is clearly visible in outdoor spaces without compromising on running time or battery lifespan.
Robust Fixed Design
Unlike traditional A-boards, these displays have a sturdy non- foldable design for ultimate durability and extended lifespan. This is further enhanced by the tempered glass front, which protects the panel and internal components from damage.
Secure Locking Bar
Once in position, the rugged castors can be locked in place with the built-in locking bar. For additional security, a padlock can be used to lock the bar in place.
Charge Level Indicator
The smart meter on the rear of the display tells you exactly how much charge the left battery has left, including an estimation of running time remaining, so you can rest assured that the battery will never die unexpectedly.
Integrated Android Media Player
The integrated Android media player allows you to easily update on-screen content via USB plug and play. Alternatively, upgrade your screen to be networked without needing any additional hardware to unlock our cloud-based CMS software. Third-party software can be installed instead if required.
multiple colours
White Version Available
As well as the classic piano black model, you can also order a modern and stylish white version if required. -
Feature Details Model 43 Inch – OAB43HD8-D Display Display Area (WxH mm) 531.4×943.2 Unit Size (WxHxD mm) 1194.9×604.7×478 Package Size (WxHxD mm) 1310x745x645 Net Weight (kg) 38.1 Gross Weight (kg) 53.9 Footprint (WxH mm) 604.7×478 Panel Resolution 1080×1920 Aspect Ratio 16:9 Brightness (cd/m²) 700 Contrast Ratio 5000:1 Viewing Angle 178° Colour 16.7M Audio Speaker Type 5W, 8Ω (x2) Battery Battery Technology Integrated lithium polymer Charging Time 7 hours Battery Life 27 hours Battery Capacity 38000mA Power Supply Power Supply 29.2V – 21.2V Power Consumption 73W Environmental Operating Temperature -20°C to 70°C Storage Temperature -30°C to 60°C Operating Humidity 10% to 80% Storage Humidity 5% to 95% Computer Media Formats Video (MPG, AVI, MP4, RM, RMVB, TS) Audio (MP3, WMA) Image (JPG, GIF, BMP, PNG) Media Resolution 1920×1080/1080×1920 CPU Quad-Core ARM Cortex A17, 1.6GHz GPU Quad-Core ARM Mali-T764 RAM DDR3 2GB ROM 8GB eMMC USB 1 x USB (OTG/HOST), 4 x USB (HOST) Wi-Fi 802.11b/g/n (Network version screen only) OS Android 7.1 Graphic Engine OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 Accessories Included: Scheduling Software, Remote Control, User Manual, Charger, Mains Power Cable Optional Network Upgrade, Security Chain -
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
-
Spec Sheet Download Link 43″ Digital Android Battery A-Board – Spec Sheet Downloads Technical Drawings Download Link 43″ Outdoor Digital Android Battery A-Board – Technical Drawing Downloads User Manual Download Link 43″ Outdoor Digital Android Battery A-Board – User Manual Downloads Photos Download Link Outdoor Digital Android Battery A-Board – Photos Downloads Signage Software Download Link Advertising Playlist Editor Downloads
