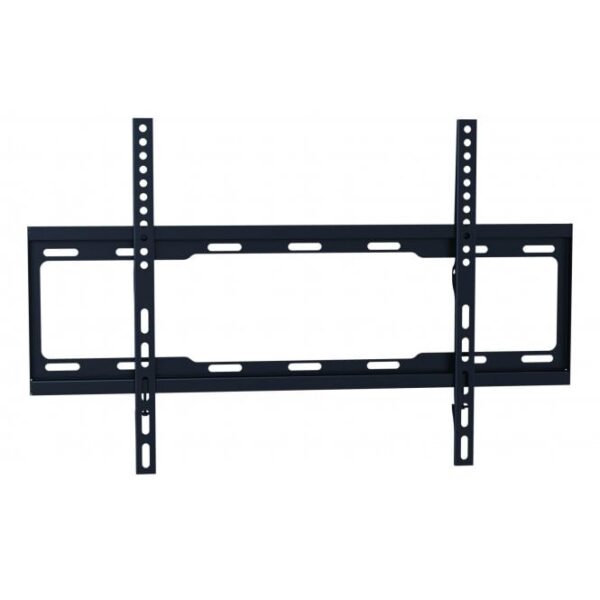

Moove 32″-70” Low-Profile Landscape Wall Mount | AS3446F

• Description
• Specifications
• Downloads

• Moove 32″-70” Low-Profile Landscape Wall Mount

  Suitable for most 32″-70” screens
  Fit mounting patterns up to 650x410mm
  Maximum VESA pattern: 600x400mm
  Mounting profile from wall: 25mm
  Maximum weight capacity: 40kg/88lbs
  Open design for easy cable and electrical access

• Mount Type	Fixed Landscape Wall Mount
  Mounting Pattern	Universal
  Material	Steel
  Material Thickness	1.5mm
  Product Size (WxHxD)	679x435x25mm
  Product Weight	1.44kg
  Recommended Screen Size	32″-70″
  Weight Capacity	40kg/88lbs
  Load Tested	4 times weight capacity approved
  Maximum Hole Pattern (WxH)	650x410mm
  Compatible VESA Patterns	200×200, 400×200, 300×300, 400×400, 600×400
  Maximum VESA Pattern	600×400
  Tilt	0°
  Swivel	0°
  Level Adjustment	0°
  Rotation	0°
  Profile	25mm

• Description	Downloads
  Data Sheet	Download
  Technical Drawing	Download
  Installation Guide	Download
