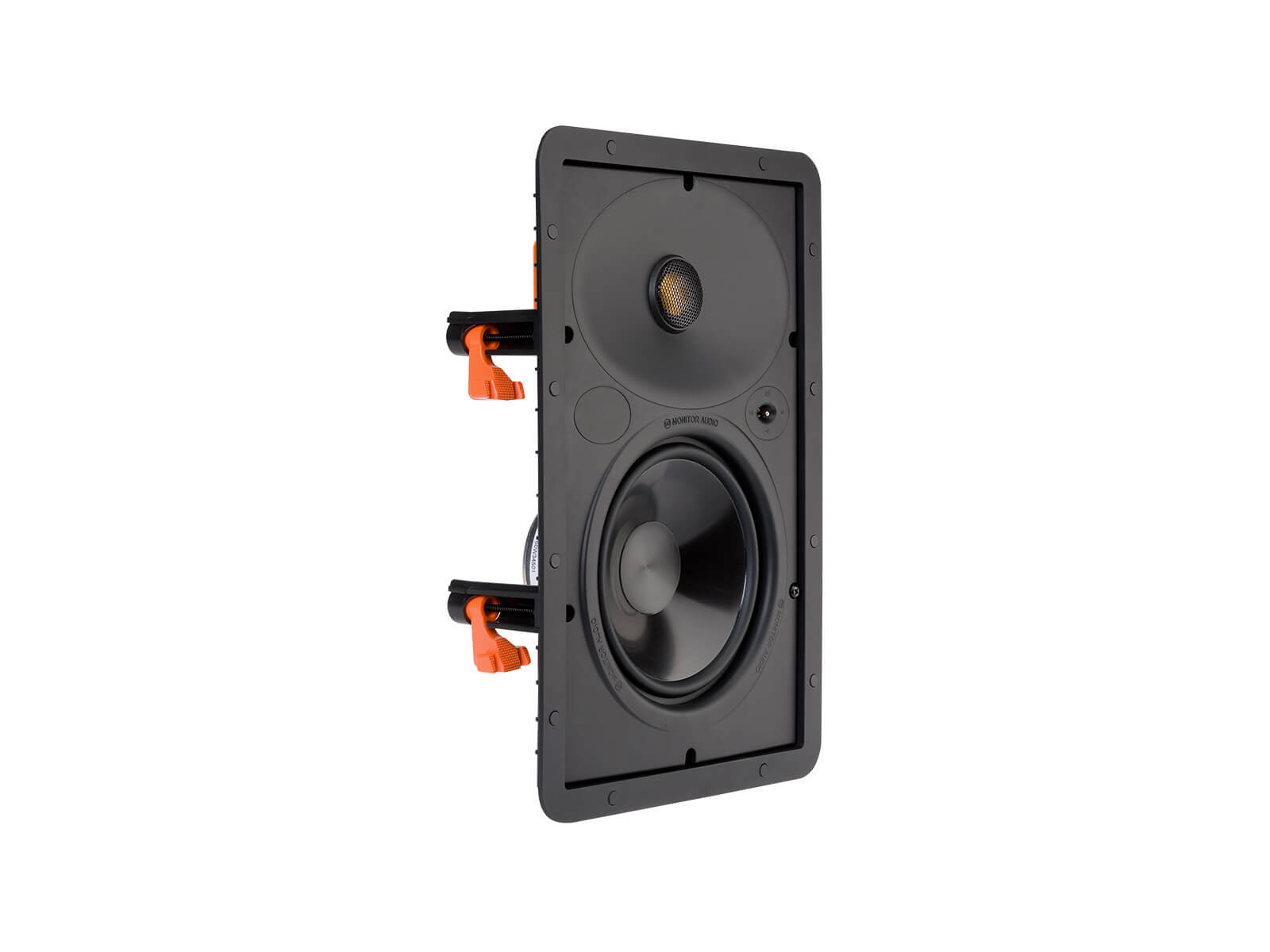

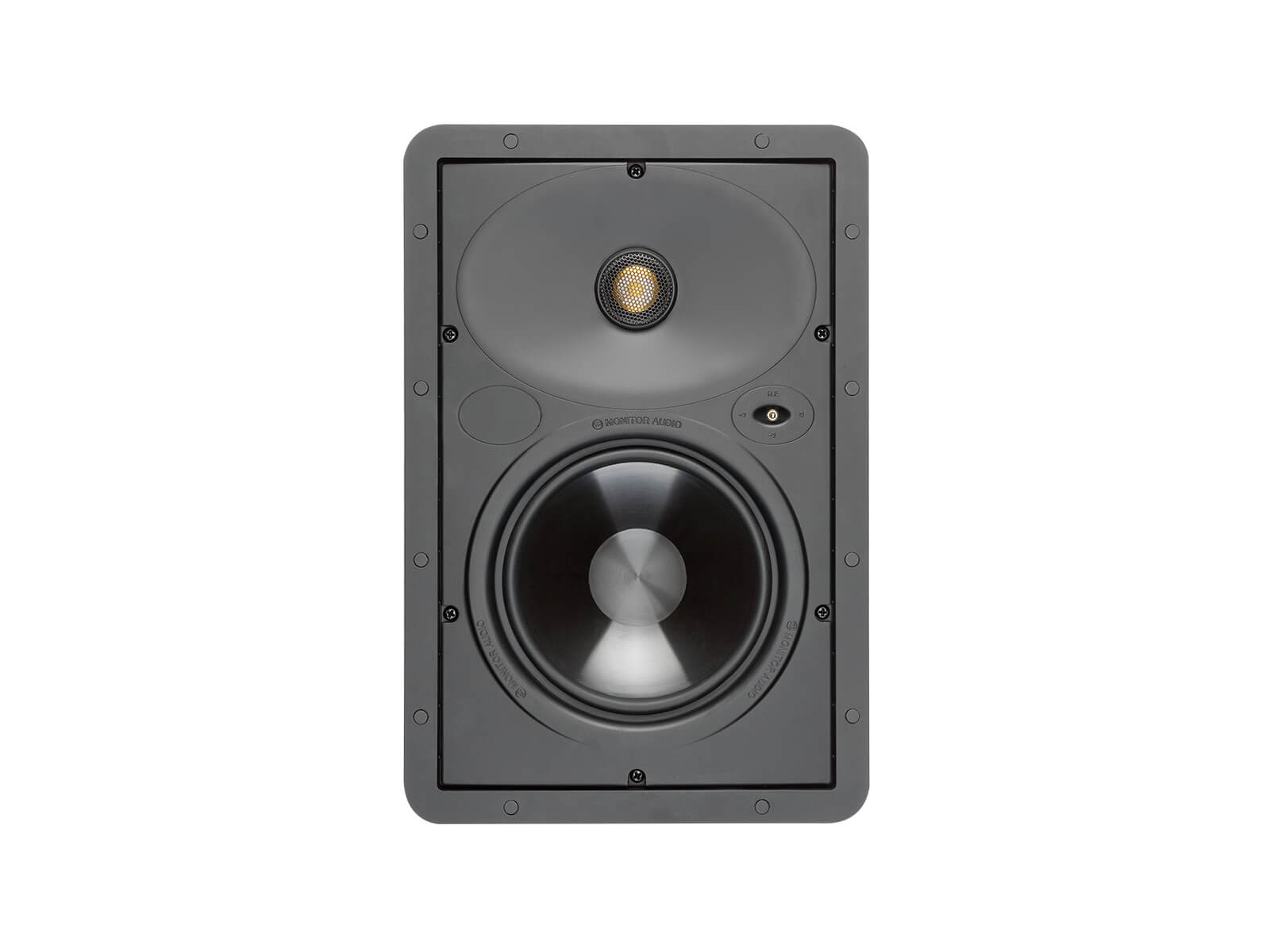

Monitor Audio W165 Single In-Wall Speaker

• Description
• Specifications

• Monitor Audio W165 Single In-Wall Speaker

  Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

• Specification	Details
  Frequency Response	60 Hz – 25 kHz
  Nominal Impedance	6 ohms
  Sensitivity (1W@1M)	88.5 dB
  Maximum SPL	107.4 dBA
  Power Handling (RMS)	65 W
  Recommended Amplifier Requirements	20 – 65 W
  Drive Unit Complement	6 1/2″ MMP II cone bass driver<br>1″ C-CAM pivoting Gold Dome tweeter
  Adjustment Controls	HF Level Switch (+3 dB / 0 dB / -3 dB)
  Overall Diameter (Including Grille)	370 x 250 mm (14 9/16″ x 9 13/16″)
  Overall Depth (Including Grille)	96 mm (3 3/4″)
  Mounting Depth	92 mm (3 5/8″)
  Cut-Out Hole Diameter	332 x 213 mm (13 1/16″ x 8 3/8″)

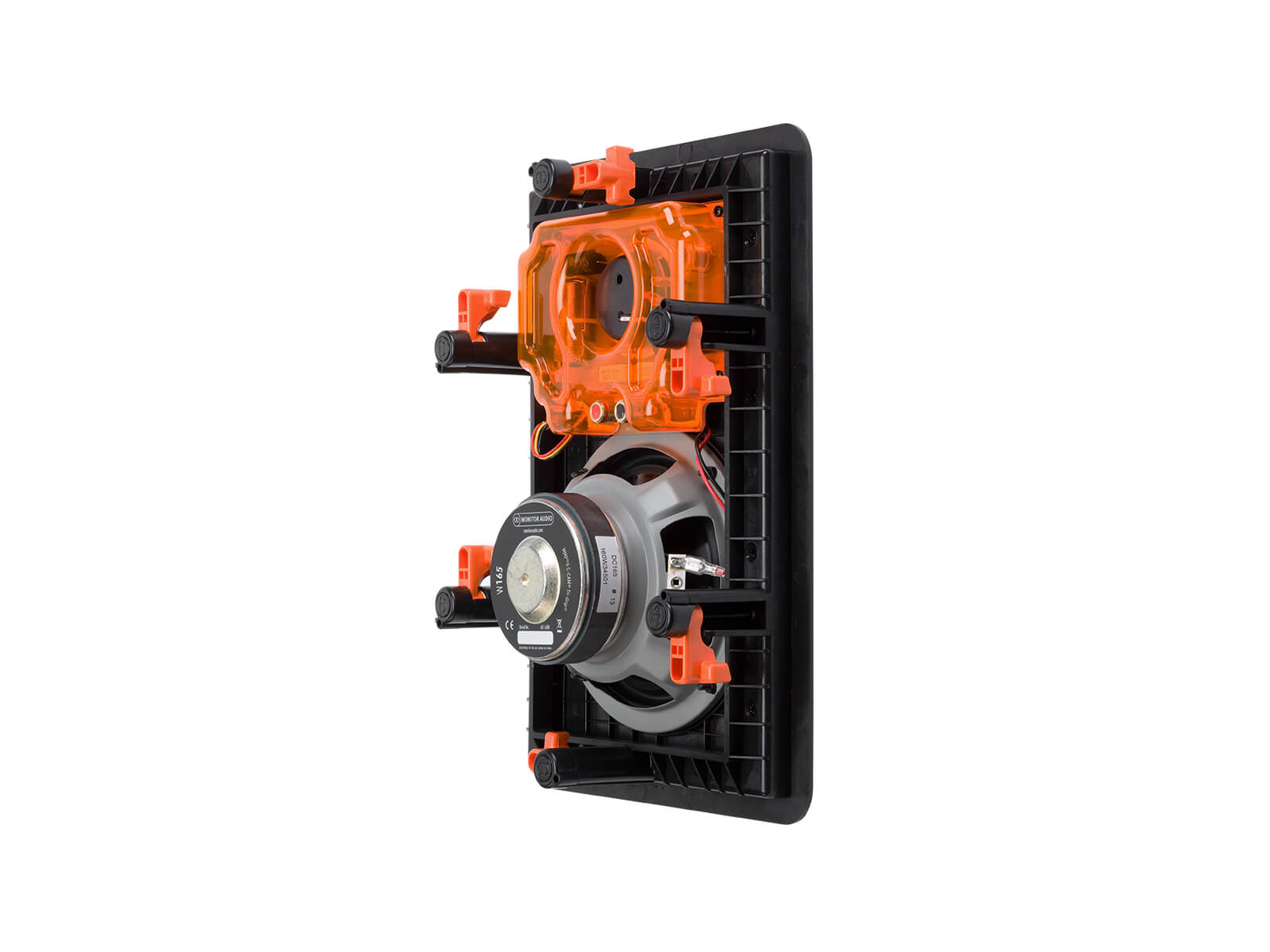

  Fixing Type	6 position Tri-Grip dog fixings
  Construction Material	Mineral filled ABS, RoHS compliant
  Weight	2.21 kg (4 lb 14 oz)
  Pre-Construction Bracket	WB6 Pre-Construction Bracket (Purple)
  Sold As	Single Unit
