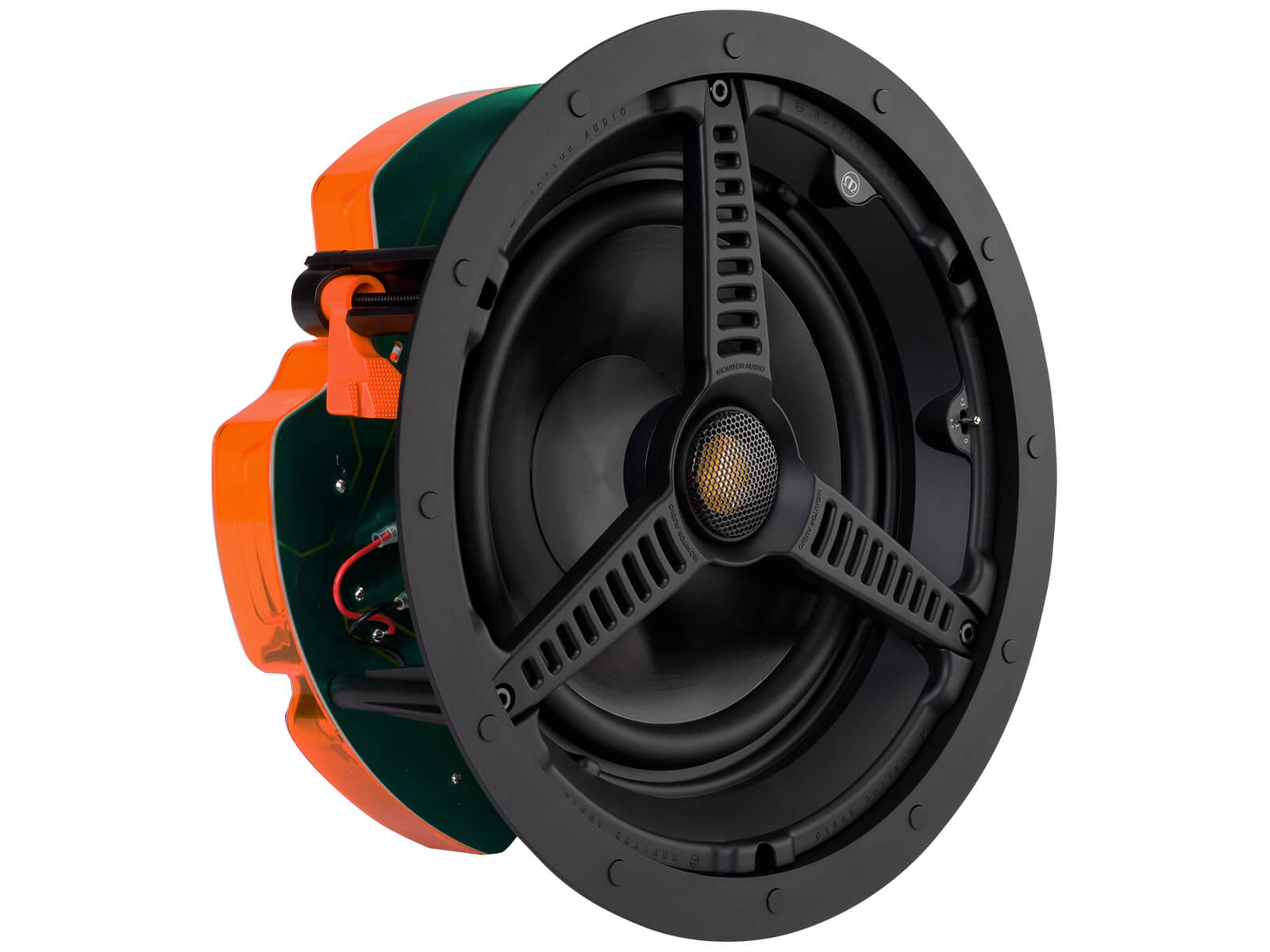

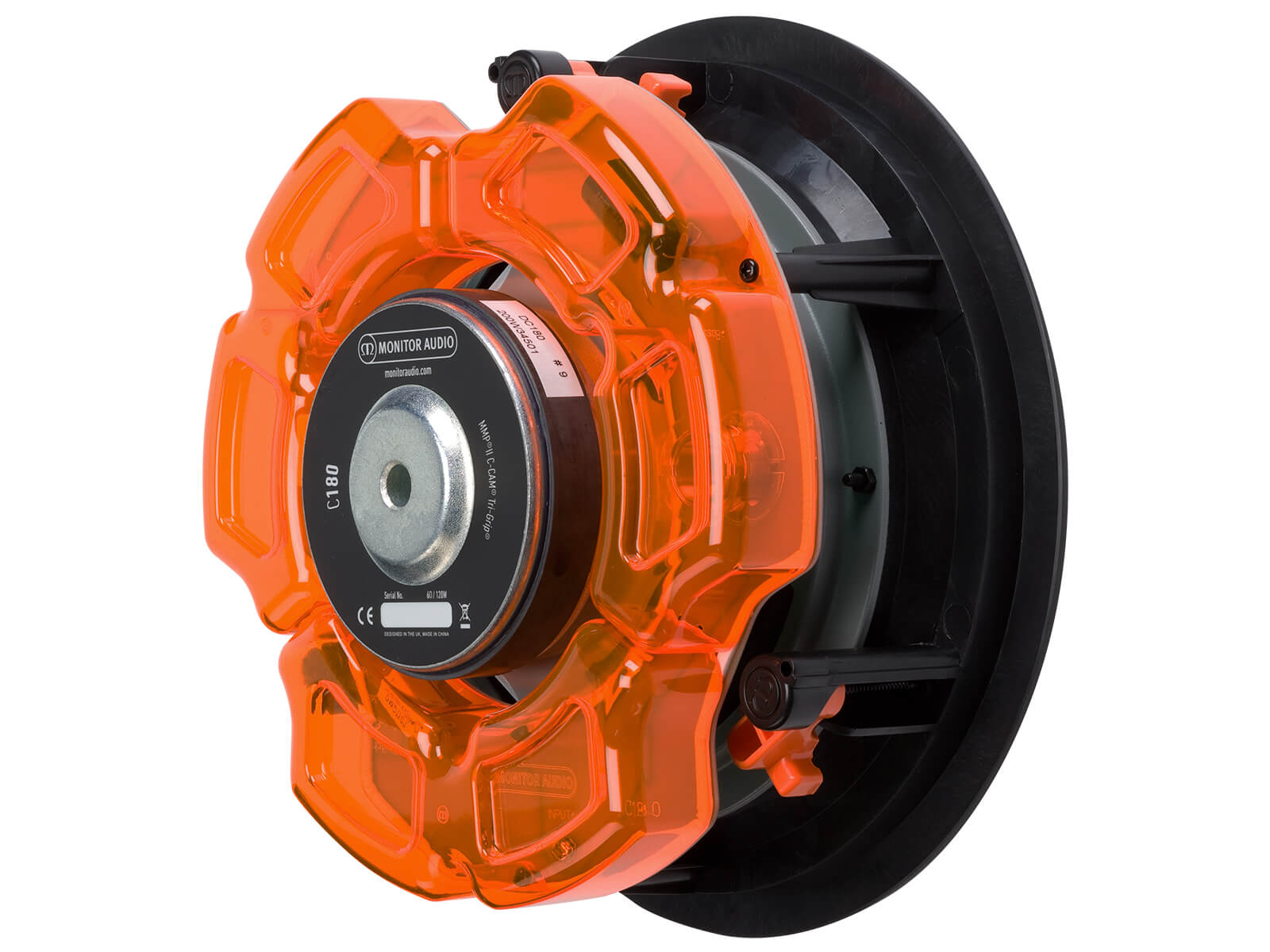

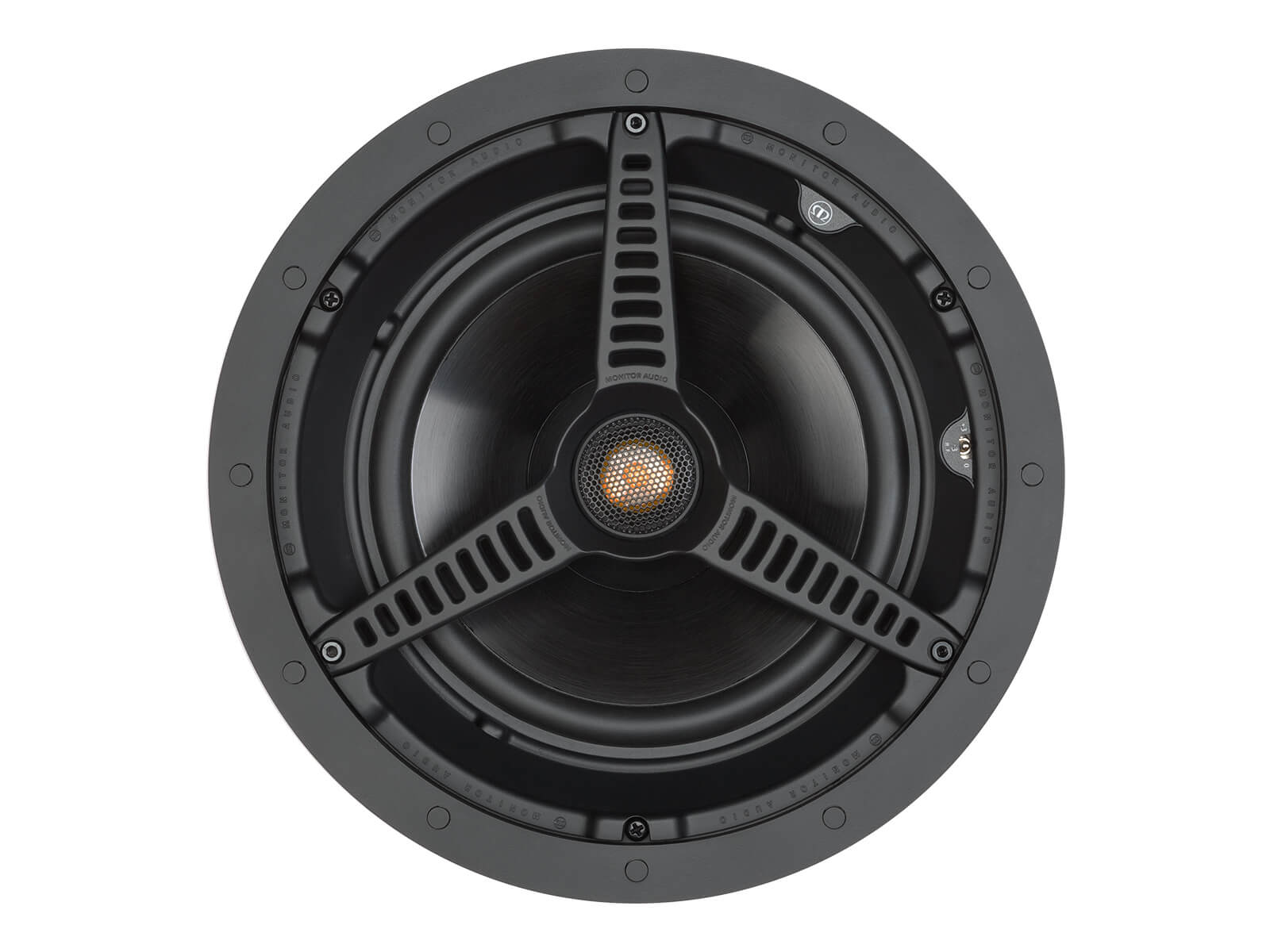

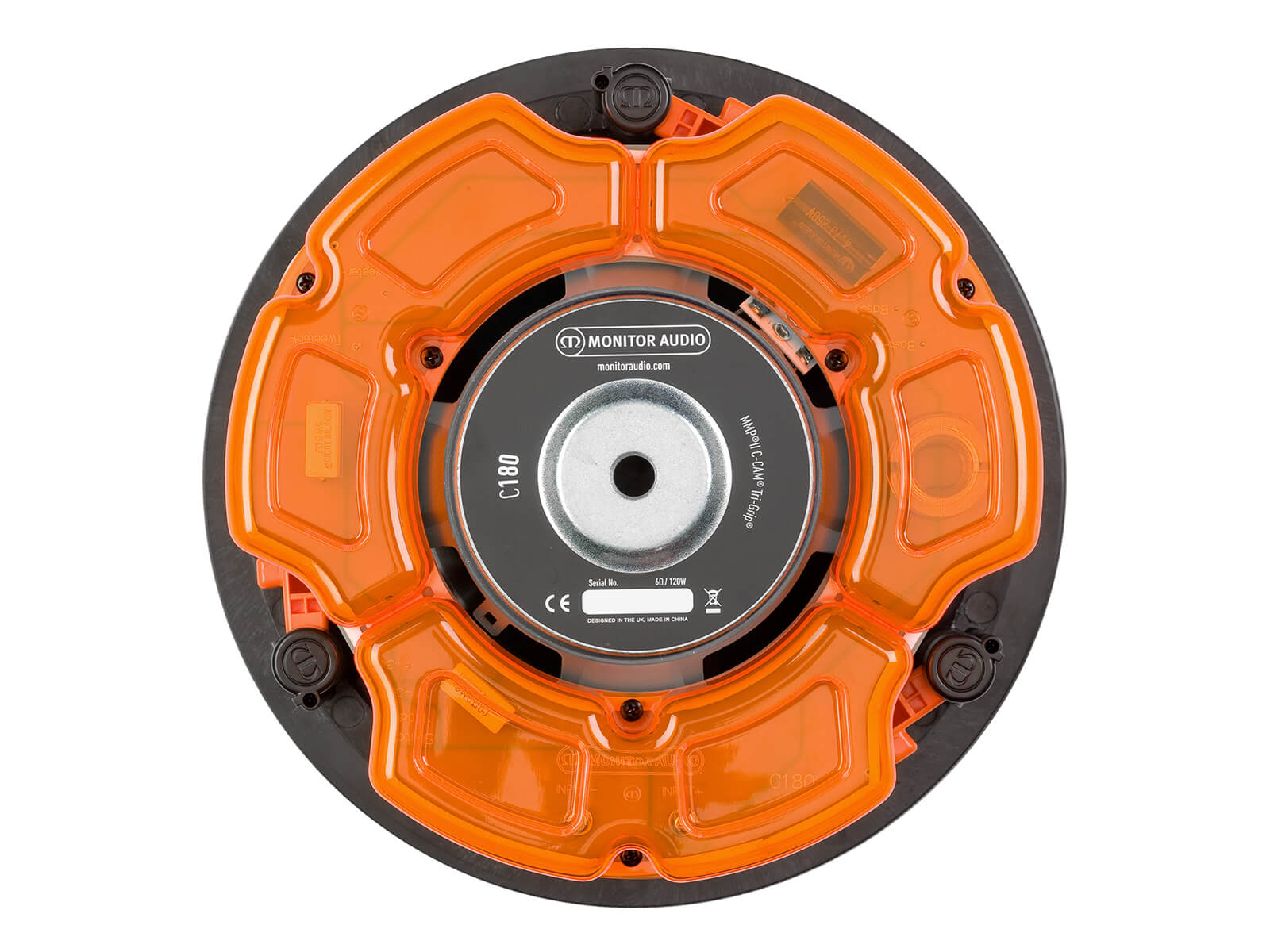

Monitor Audio C180 Single In-Ceiling Speaker

• Description
• Specifications
• Downloads

• Monitor Audi C180 Single In-Ceiling Speaker

  Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

  Optional square grille can be used with this model.

• Specification	Details
  Frequency Response	50 Hz – 25 kHz
  Nominal Impedance	6 ohms
  Sensitivity (1W@1M)	90 dB
  Maximum SPL	111.6 dBA
  Power Handling (RMS)	120 W
  Recommended Amplifier Requirements	30 – 120 W
  Drive Unit Complement	8″ MMP II cone bass driver<br>1″ C-CAM pivoting Gold Dome tweeter
  Adjustment Controls	HF Level Switch (+3 dB / 0 dB / -3 dB)
  Overall Diameter (Including Grille)	285 mm (111/4″)
  Overall Depth (Including Grille)	126 mm (415/16″)
  Mounting Depth	122 mm (413/16″)
  Cut-Out Hole Diameter	247 mm (93/4″)
  Fixing Type	3 position Tri-Grip dog fixings
  Optional Square Grille – Outer Dimensions	285 x 285 mm (111/4″)
  Construction Material	Mineral filled ABS, RoHS compliant
  Weight	2.72 kg (6 lb)
  Pre-Construction Bracket	CL-B
  Back Box	CML-BOX
  Sold As	Single Unit

• MONITORC180 : Datasheet
