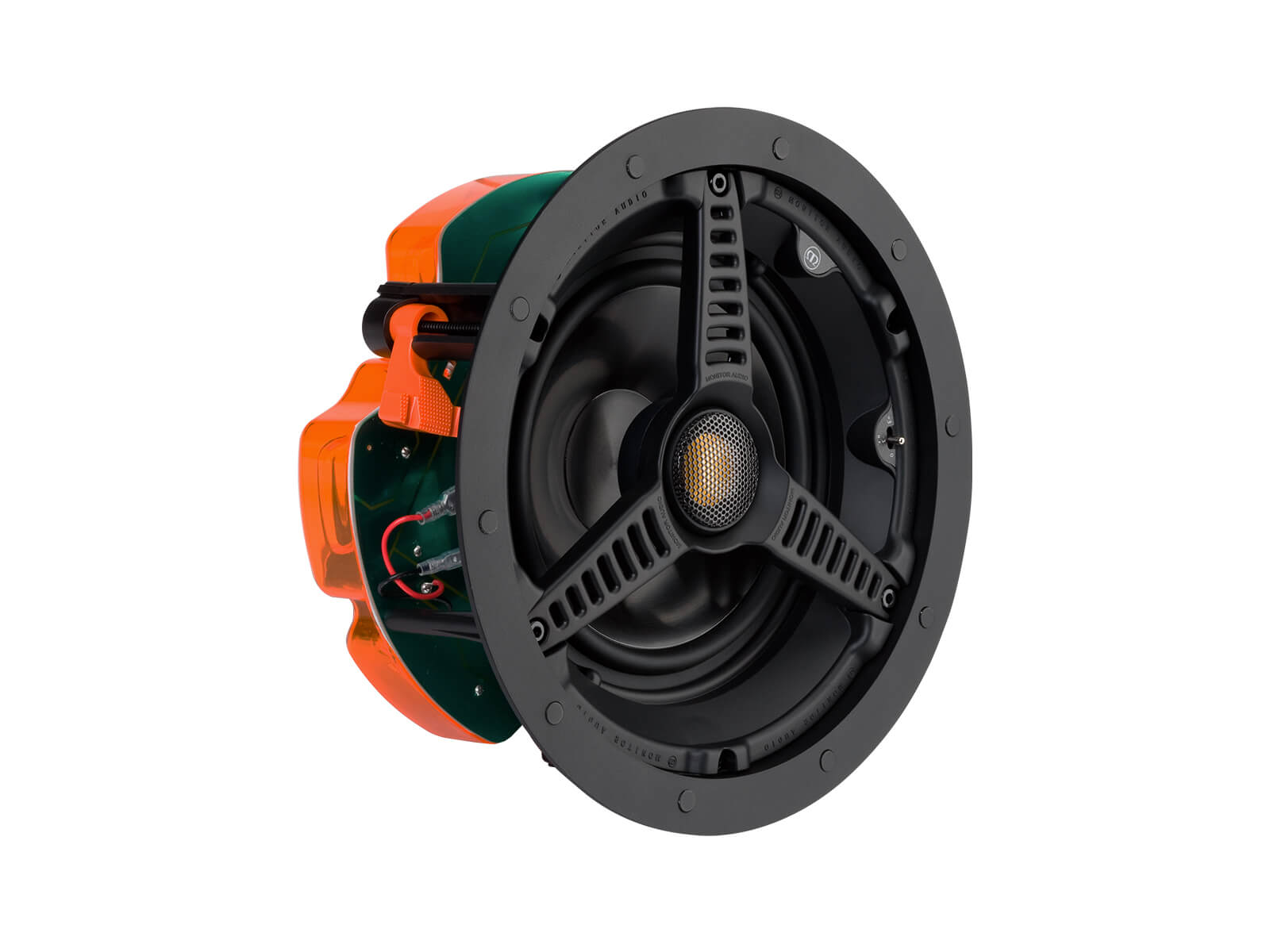

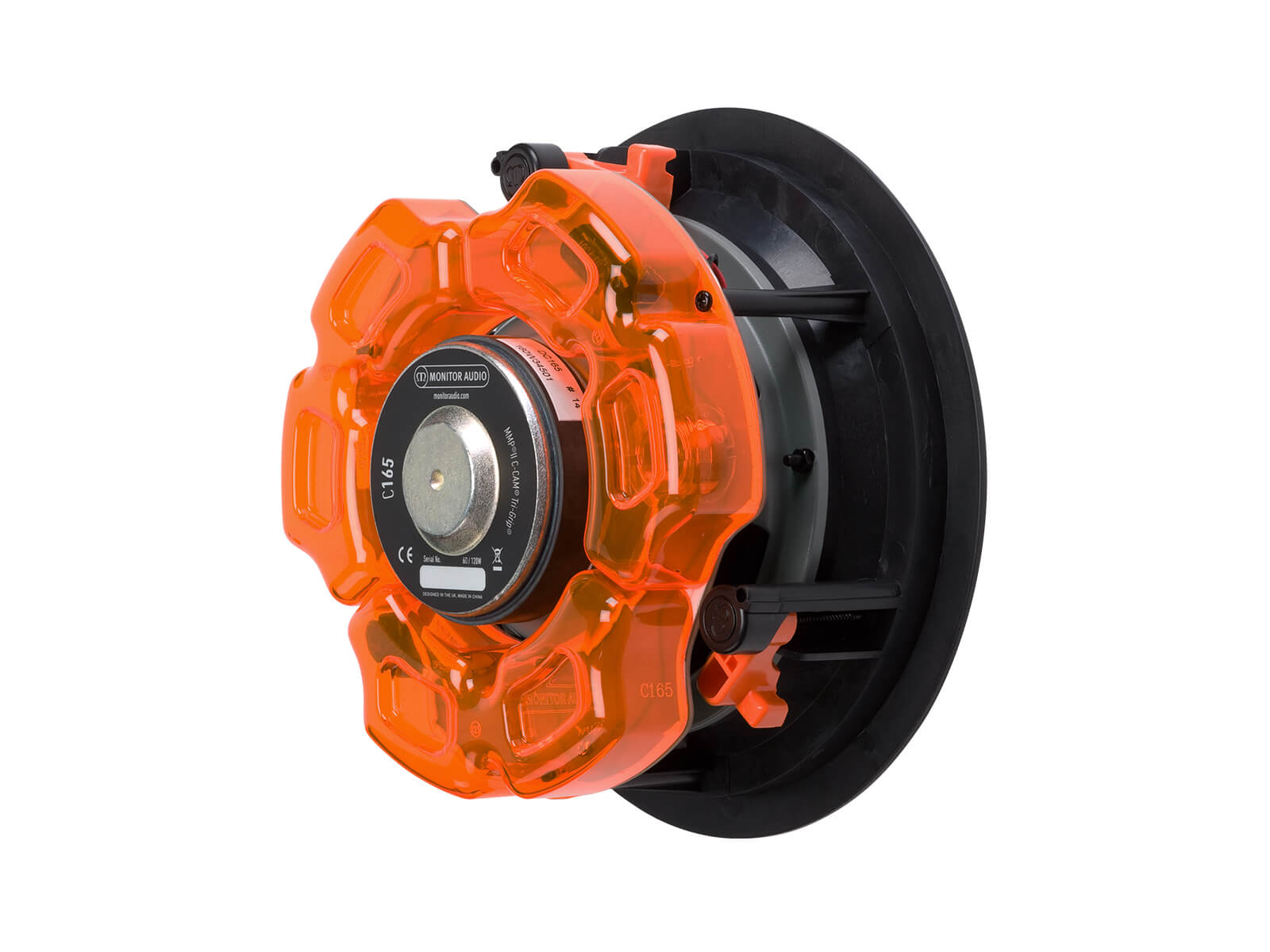

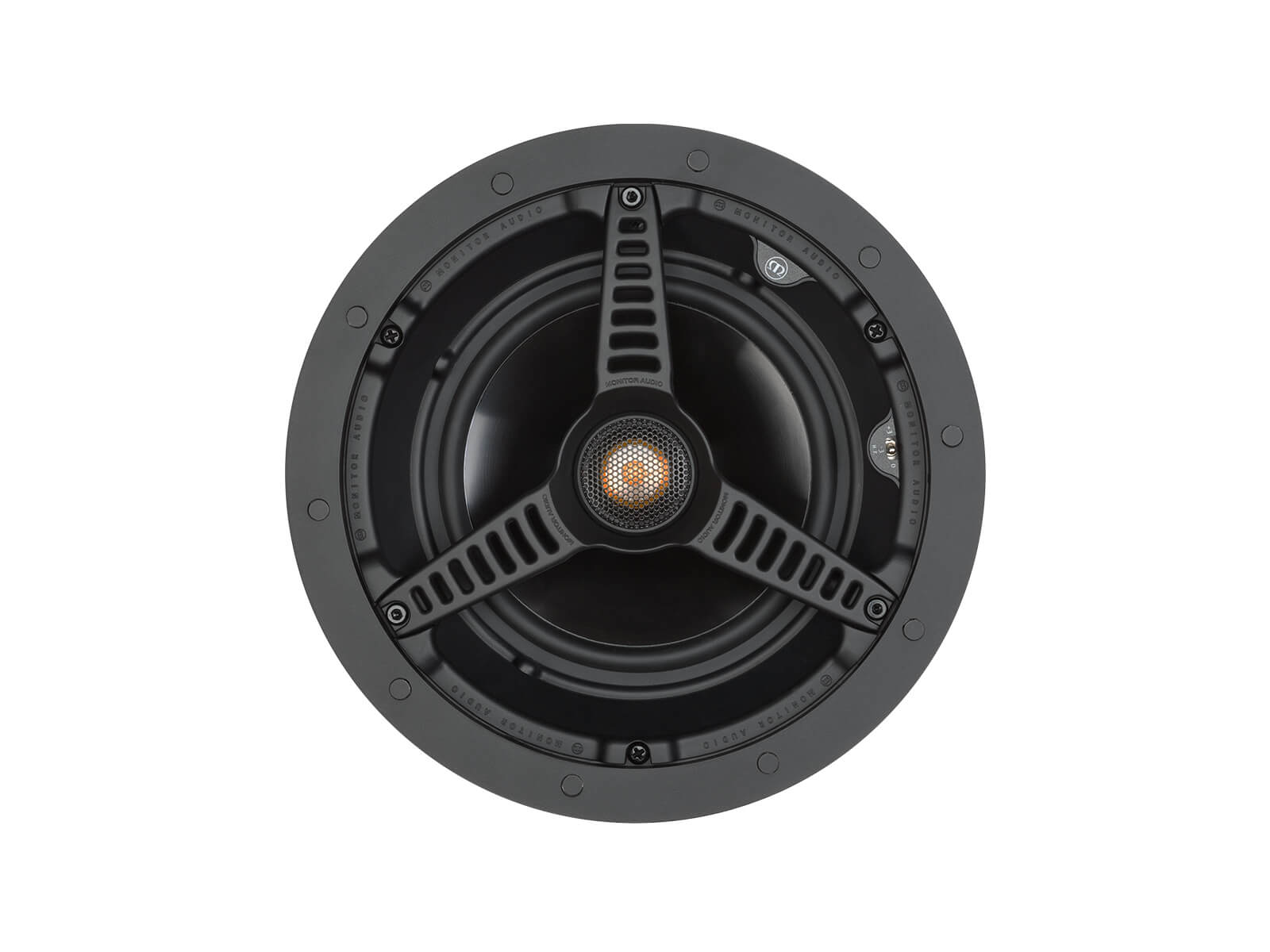

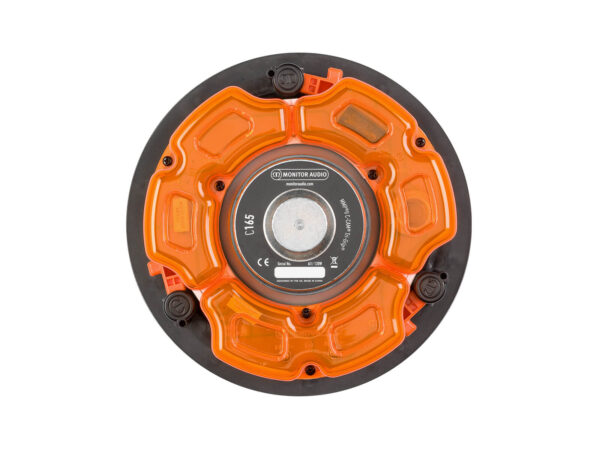

• Monitor Audio C165 In-Ceiling Speaker

  Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

  Optional square or premium grille can be used with this model.

• Specification	Details
  Frequency Response	60 Hz – 25 kHz
  Nominal Impedance	6 ohms
  Sensitivity (1W@1M)	88.5 dB
  Maximum SPL	107.4 dBA
  Power Handling (RMS)	65 W
  Recommended Amplifier Requirements	20 – 65 W
  Drive Unit Complement	6 1/2″ MMP II cone bass driver<br>1″ C-CAM pivoting Gold Dome tweeter
  Adjustment Controls	HF Level Switch (+3 dB / 0 dB / -3 dB)
  Overall Diameter (Including Grille)	250 mm (913/16″)
  Overall Depth (Including Grille)	120 mm (43/4″)
  Mounting Depth	116 mm (49/16″)
  Cut-Out Hole Diameter	211 mm (81/4″)
  Optional Square Grille – Outer Dimensions	249 x 249 mm (9 3/16″)
  Fixing Type	3 position Tri-Grip dog fixings
  Construction Material	Mineral filled ABS, RoHS compliant
  Weight	1.92 kg (4 lb 4 oz)
  Pre-Construction Bracket	CM-B
  Back Box	CSM-BOX
  Sold As	Single Unit

• MONITORC165 : Datasheet
