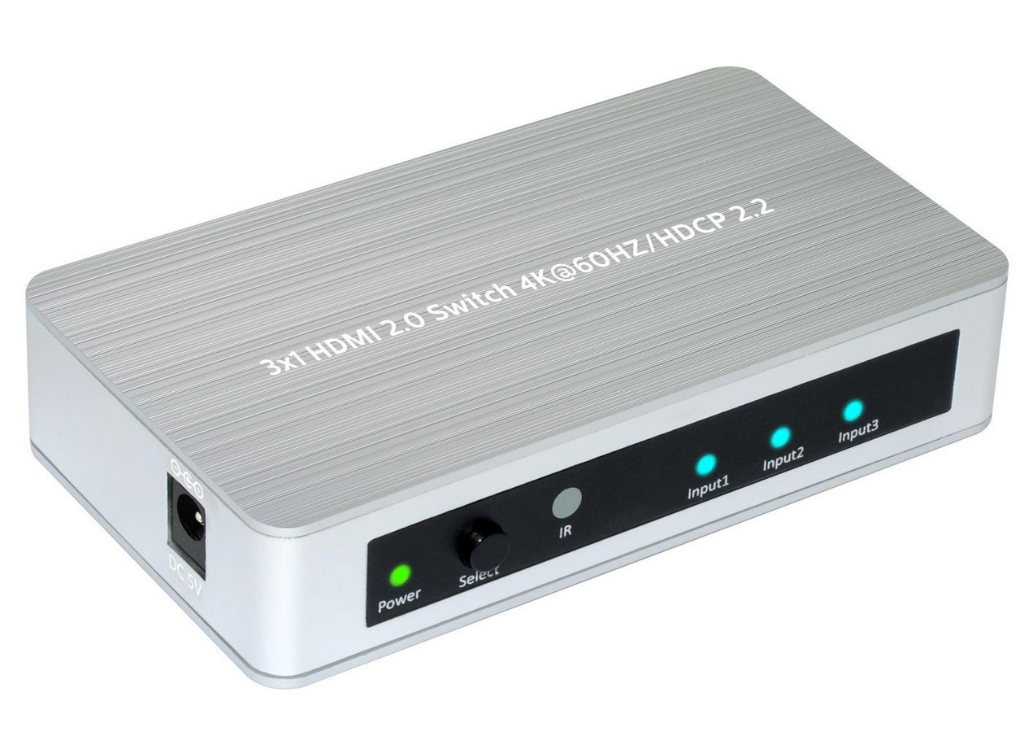

MicroConnect Slim 3×1 HDMI2.0 Aluminium 4K 60HZ/HDCP 2.2 Switcher | MC-HMSW301B

• Description
• Specifications
• Downloads

• MicroConnect Slim 3×1 HDMI2.0 Aluminium 4K 60HZ/HDCP 2.2 Switcher | MC-HMSW301B

  This is an intelligent HDMI2.0 3X1 Amplifier Switcher. It allows three HDMI source devices switched into one HD monitor or projector.





• Category	Specifications
  Features
  Bandwidth	600 MHz
  HDCP	Yes
  Material	Aluminium/Plastic
  Maximum Refresh Rate	60 Hz
  Maximum Resolution	4096 x 2160 Pixels
  Product Colour	Aluminium/Black
  Supported Video Modes	1080i/1080p/2160p/480i/480p/576i/576p/720p
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code (Icecat)	52161540
  US ECCN Code	5A992
  Operational Conditions
  Operating Humidity (H-H)	10 – 85 %
  Operating Temperature (T-T)	0 – 35 °C
  Storage Humidity (H-H)	5 – 90 %
  Storage Temperature (T-T)	-10 – 80 °C
  Package Dimensions
  Depth	8.3 cm
  Gross Weight	0.254 kg
  Height	8 cm
  Width	12.3 cm
  Packaging Content
  AC Adapter Included	Yes
  Manual	Yes
  Number of Products	1 pc(s)
  Quantity per Pack	1 pc(s)
  Remote Control Included	Yes
  Ports & Interfaces
  DC-in Jack	Yes
  HDMI In	3
  HDMI Ports Quantity	4
  HDMI Version	2.0
  Number of HDMI Outputs	1
  Video Port Type	HDMI
  Power
  Power Consumption	5 Watt
  Product Dimensions
  Net Weight	0.21 kg

• Description	Downloads
  Datasheet	Download
