MicroConnect 1x 8 Support 4k@60Hz HDMI Splitter | MC-HDMISPLITTER0108-4K

• Description
• Specifications
• Downloads

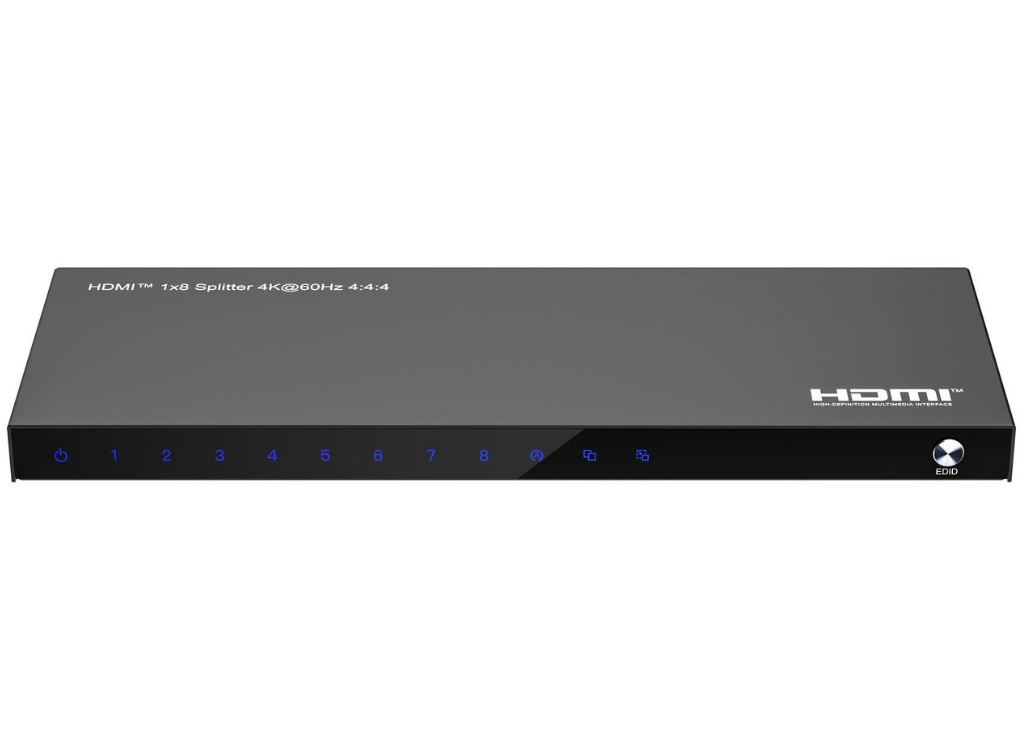

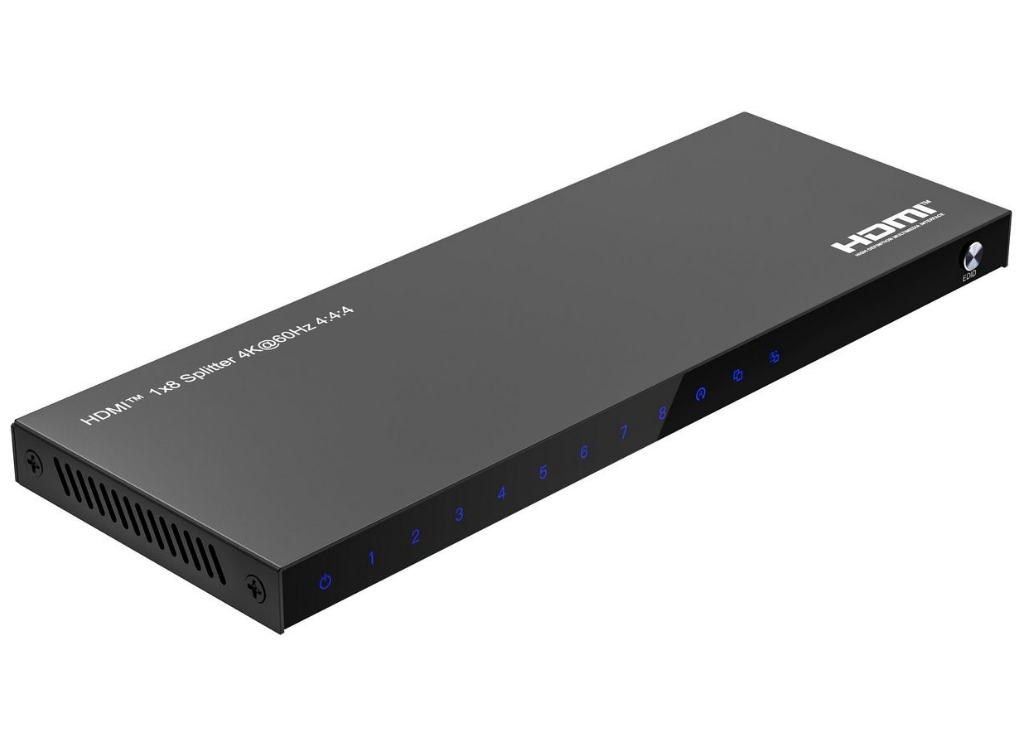

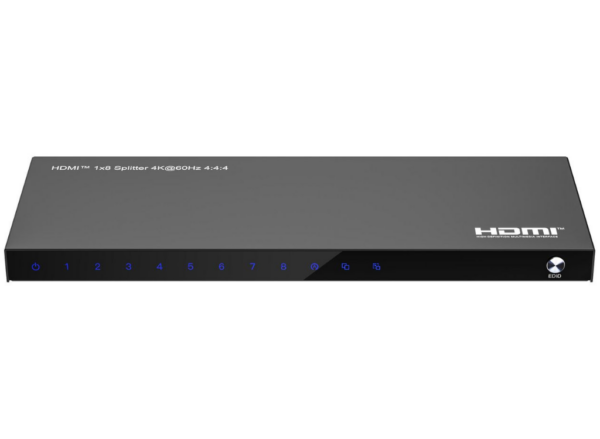

• MicroConnect 1x 8 Support 4k@60Hz HDMI Splitter

  The HDMI™ 4K Splitter 1×8 allows you to connect an HDMI-enabled audio/video source device to eight HDMI™ displays or projectors simultaneously. It supports Ultra HD (4K@60Hz), delivering stunning picture quality with four times the resolution of HD 1080p@60Hz. The splitter is also backward compatible with previous HDMI™ revisions, accommodating devices with 1080p and 720p HDMI™ video resolutions. Even if you don’t need 4K video today, the HDMI™ 4K Splitter 1×8 ensures you are prepared for future display technology advancements. It features three EDID modes—auto, copy, and downscaler—to meet the requirements of different display situations.





• Category	Details
  Features
  Bandwidth	600 MHz
  HD Type	4K Ultra HD
  HDCP	Yes
  Housing Material	Metal
  LED Indicators	Yes
  Maximum Refresh Rate	60 Hz
  Maximum Resolution	4096 x 2160 Pixels
  Number of Displays Supported	8
  Product Colour	Black
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code (Icecat)	52161556
  US ECCN Code	5A992
  Operational Conditions
  Operating Relative Humidity (H-H)	20 – 90 %
  Operating Temperature (T-T)	0 – 70 °C
  Storage Relative Humidity (H-H)	5 – 90 %
  Storage Temperature (T-T)	-20 – 60 °C
  Package Dimensions
  Depth	5 cm
  Gross Weight	0.45 kg
  Height	22 cm
  Width	14 cm
  Packaging Content
  AC Adapter Included	Yes
  Cables Included	DC
  Ports & Interfaces
  HDMI Version	2.0
  Video Out	8x HDMI
  Video Port Type	HDMI
  Video Ports Quantity	9
  Power
  DC-In Requirements	DC 5V@2A Power Adapter
  Product Dimensions
  Net Weight	0.387 kg
  Depth	5.79 cm
  Height	1.6 cm
  Width	20.29 cm

• Description	Downloads
  Datasheet	Download
