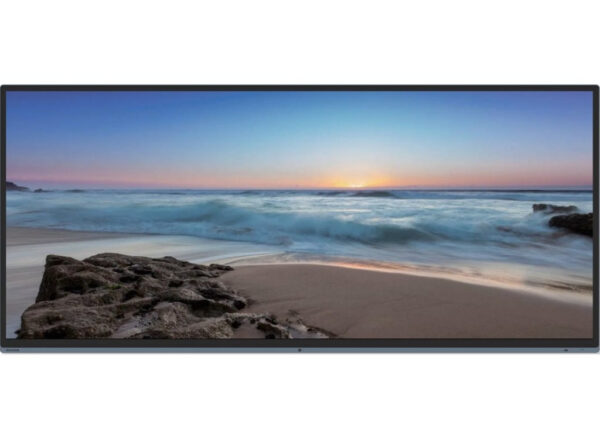

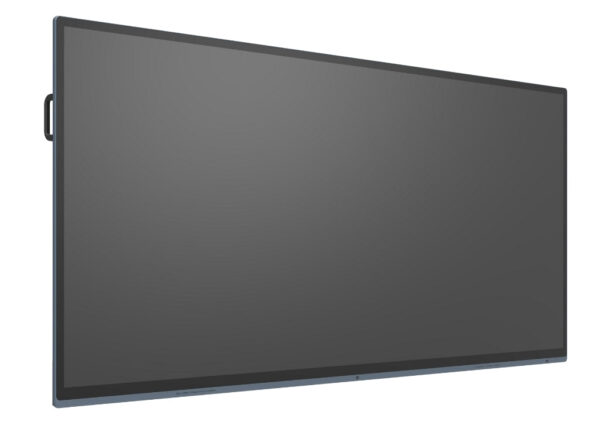

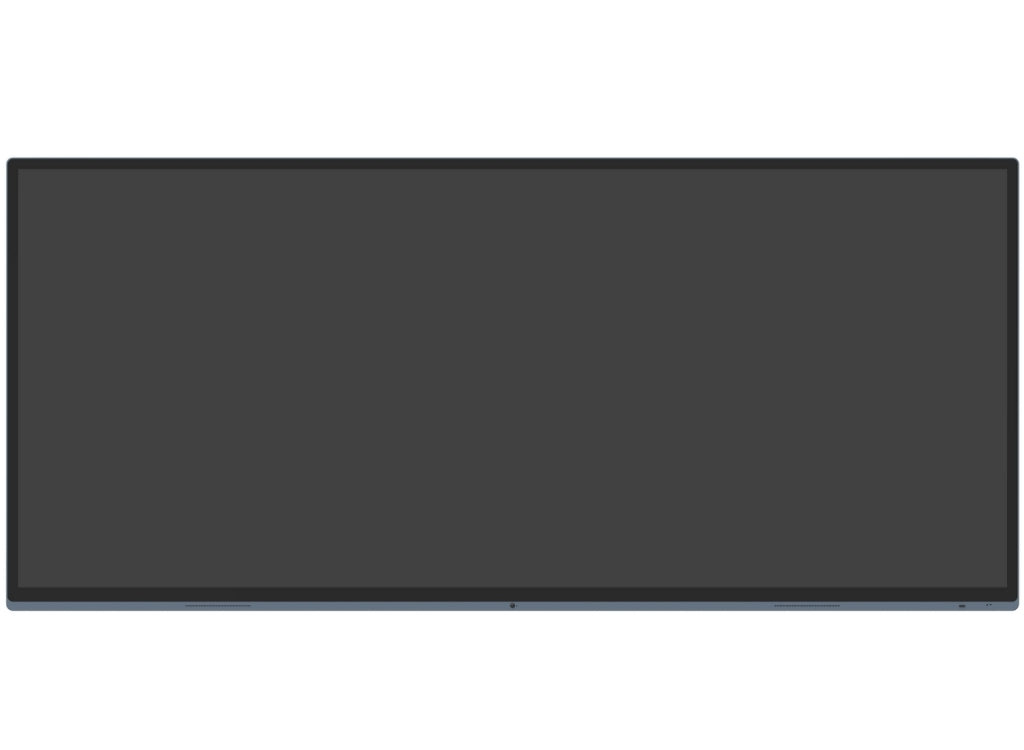

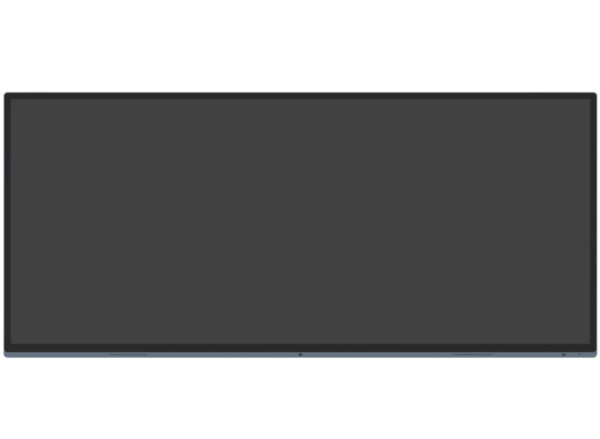

MAXHUB UW105NA 105” 5K UHD Ultra Wide Commercial Display

MAXHUB UW105NA 105” 5K UHD Ultra Wide Commercial Display

• Description
• Specifications
• Downloads

• MAXHUB UW105NA 105” 5K UHD Ultra Wide Commercial Display


  ULTRA IMMERSIVE VISION
  MAXHUB Commercial Display Ultra-Wide Series
  Taking simplicity, safety and flexibility to new levels. MAXHUB Commercial Display makes every organization more effective and productive.

  BIGGER SPACE FOR BIGGER IMPRESSIONS
  Ultra-wide, ultra-unique aspect ratio with 33% more visual canvas than comparable models

  MEETING WITHIN THE MEETING
  Empowered by the Signature Microsoft Teams Rooms, the MAXHUB UW Series brings us a more immersive hybrid meeting experience.
  IDEAL PLATFO

  IDEAL PLATFORM TO PERFORM
  This next-generation display is enhanced to be compatible with all the leading industry collaboration software. Invigorate every interchange with smoother, more engaging meetings.

  PROFESSIONAL 5K DISPLAY
  Keep an eye on all the details with a striking 5K-resolution display.

  TYPE-C VERSATILITY
  Interchange ideas, power up productivity and share more content with the multi-functional Type-C port.

  MAXHUB DEVICE MANAGEMENT
  MAXHUB Pivot equips a streamlined remote control device management system. Smooth, fuss-free interactions every time.

  COMPLETE REMOTE DEVICE CONTROL
  Easy-to-use functionality compatible with major control and automation tools offered by companies such as Crestron, Q-SYS and Extron.

  OPS FUNCTIONALITY
  Intelligently built-in OPS slots enable effortless switching between Android and Windows operating systems.

• Category	Specification
  Display
  Screen Size (class)	105″
  Panel Type	VA
  Haze	25% (Anti-Glare)
  Aspect Ratio	21:9
  Native Resolution	5120 x 2160
  Refresh Rate	60Hz
  Brightness (Typ.)	400 nits
  Backlight Type	Direct Lit
  Contrast Ratio	4000:1
  Viewing Angle (H x V)	178°(H / V)
  Response Time	6.5ms
  Life Time (Min.)	≥50,000 hours
  Operation Hours	16/7
  Orientation	Landscape
  Environmental Conditions
  Operation Temperature	0°C ~ 40°C
  Operation Humidity	10% ~ 90%RH
  Storage Temperature	-20°C ~ 60°C
  Storage Humidity	10% ~ 90%RH
  Internal Player
  Processor	A764+A554
  Graphic	Mali-G610 MP4
  Memory	8G
  Storage	64G
  Operating System	Android 13.0
  UI Resolution	5K
  Mechanical Specification
  Product Dimension	2511 x 1124 x 97mm (100.55 x 44.25 x 3.82 inch)
  Package Dimension	2668 x 1305 x 280mm (105.04 x 51.34 x 11.02 inch)
  Product Weight (Net)	119.5kg
  Package Weight (Gross)	89.4kg
  VESA Mount	1000 x 400
  Connectivity
  Input	HDMI 2.0 x3, HDMI 2.1 x1, USB Type-C x1, USB Type-A 3.0 x4, USB Type-A 2.0 x1, RJ45 in x1, SPDIF x1, Audio out x1, Display Port x1, RS232 x1 / IR Receiver
  Output	HDMI out 2.0 x1, RJ45 out x1
  External Control	OPS Slot Yes
  Wi-Fi	Removable Wi-Fi Module, Wi-Fi 6 Support
  Certification	Safety: Class B, EMC: Yes, ErP: Yes, Energy Star: Yes, IEC 62368-1: Yes
  Features	Built-In Media Player, Device Management System, Screen Share, MAXHUB Pivot, MAXHUB Share
  Warranty	Display: 3 year
  Accessory	Included in the package: Power Cord, Wi-Fi Module x1, HDMI Cable (2m
  Power	Power Supply: 100-240V~50/60Hz, Power Consumption (Typical): 550W, Power Consumption (Max): 665W
  Sound	Speaker Power Output: 2 x 16W + 15W
  OPS62A
  Motion Sensor	Yes
  Light Sensor	Yes
  OPS72A

• Description	Downloads
  MAXHUB UW105NA 105” Ultra Wide 5K UHD Commercial Display DataSheet	Downloads
