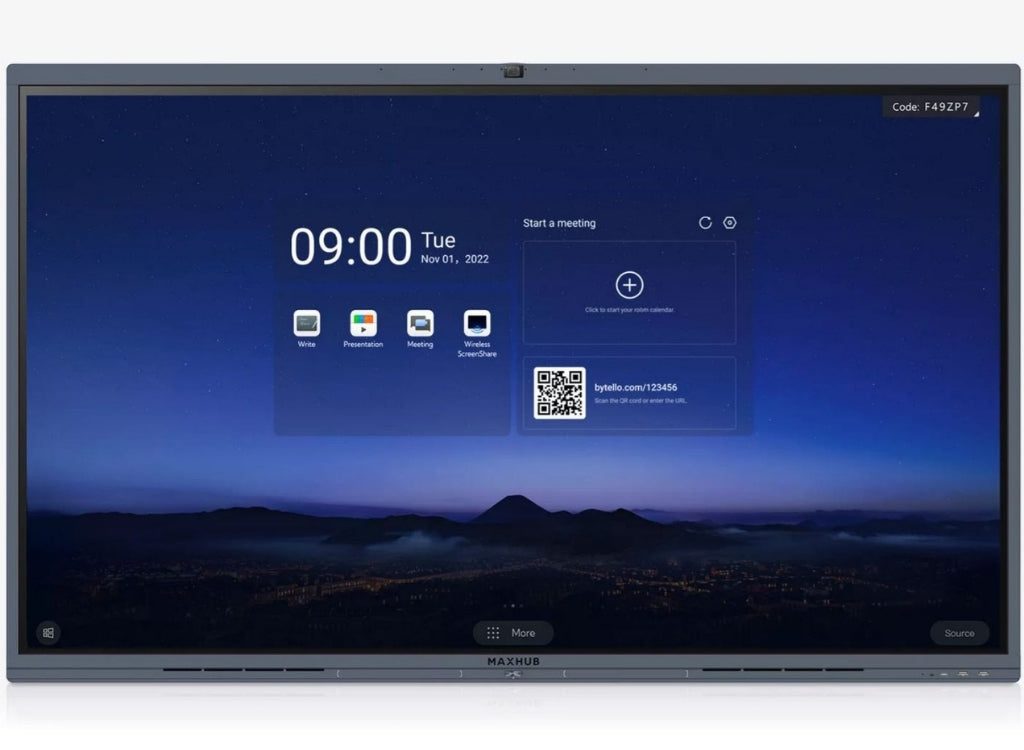

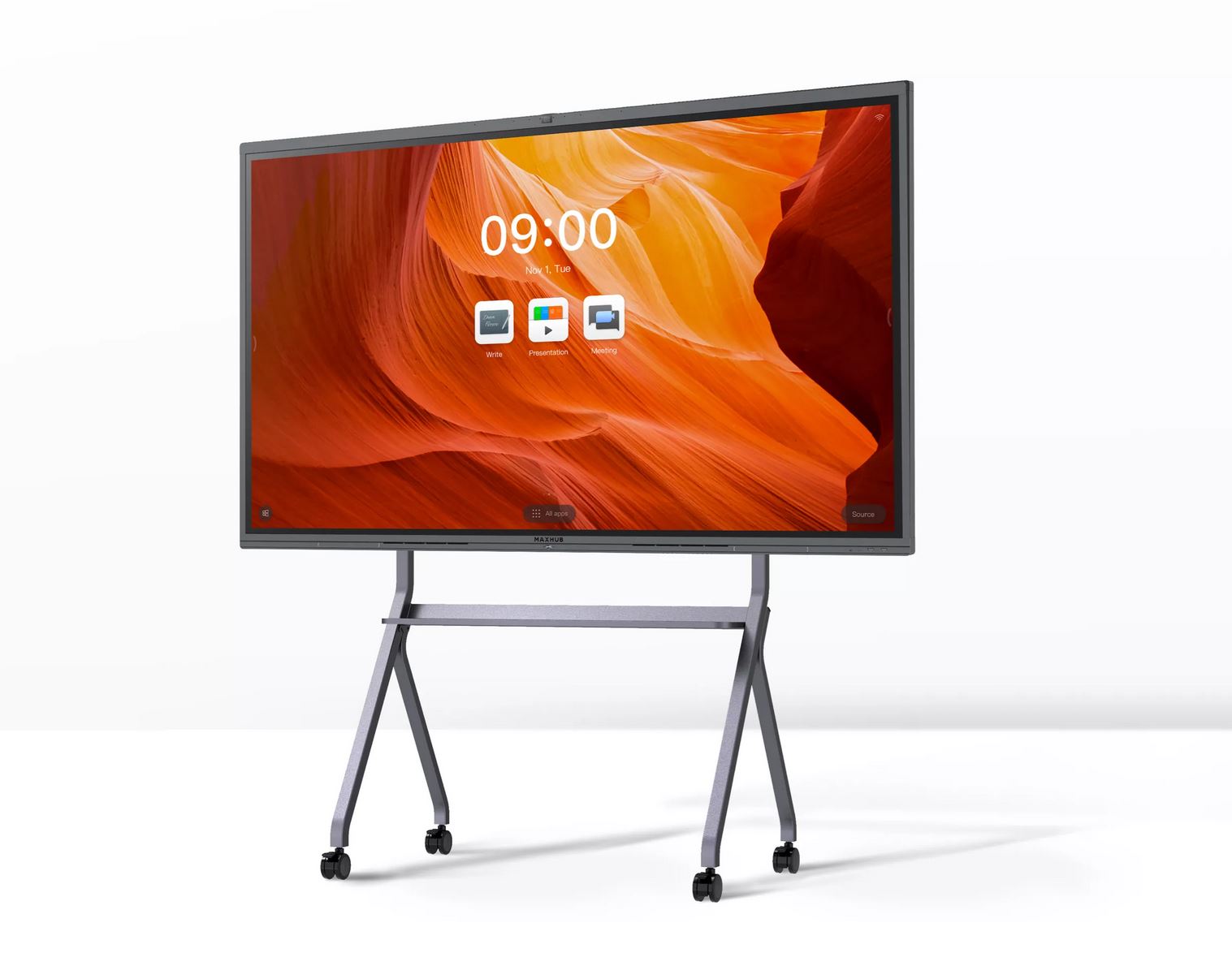

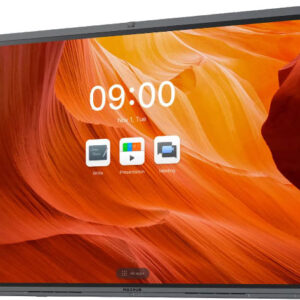

MAXHUB C7530 75” 4K Classic All-in-one Zoom Conference Touchscreen Display

MAXHUB C7530 75” 4K Classic All-in-one Zoom Conference Touchscreen Display

• Description
• Specifications
• Downloads

• MAXHUB C7530 75” 4K Classic All-in-one Zoom Conference Touchscreen Display

  Plug and Play
  A complete, seamless design fulfills every meeting requirement, including a built-in camera, mic, and touch panel. Whether video conferencing or hosting a local discussion, it’s as easy as plugging in your power cable.

  See Every Detail in Ultra-HD
  Experience 1.07 billion colors in brilliant detail with high-color gamut and ultra-HD, 4K display, promising a professional-grade image quality. Zero-bonding technology effectively reduces air refraction and parallax for enhanced visual clarity.

  Experience Vibrant, Deep Colors
  The V6 Classic Series features a 90% NTSC high-color gamut across a variety of formats, including presentations, printed documents, and video clips.

  Never Worry about Scratches
  High-strength, anti-glare, tempered glass significantly reduces scratches in over time use. Poor lighting is no longer an issue during conferencing – the screen remains bright, displaying intricate detail.

  Vivid Imagery with high-color-accuracy Display
  Pre-calibrated before delivery to restore the original color and achieve professional-grade imagery.

  Advanced, Intuitive Video Conferencing
  Experience next-level video conferencing with a wide field of vision, and crystal-clear, amplified audio. Thanks to auto-framing, the V6 Classic Series intuitively adjusts to the number of meeting participants and their location.

  The newly upgraded 48MP camera ensures crisp detail during multi-participant video conferencing, while its 92° HFOV ultra-wide-angle lens expands the field of view to achieve a panoramic perspective. WDR Dynamic Anti-Backlight technology maintains ideal lighting contrast, preserving image clarity even under extreme lighting conditions.

  Auto-Framing for a Face-to-Face Feel
  With auto-framing, the V6 Classic Series display automatically adjusts to achieve the best angle based on the number of participants and their location, so it feels like a face-to-face interaction.

  Speaker Tracking
  8 microphones and speaker-tracking technology locate the sound source in real-time, ensuring the speaker is always the center of attention.

  Exceptional Voice Clarity
  8 non-equidistant microphone arrays
  Built-in AI noise reduction
  2.1 channel stereo sound
  2x10W+20W (subwoofer) seam speakers
  The V6 Classic Series microphone supports 8-meter, 180° wide-angle voice pickup, while AI noise-reduction technology enhances the human voice, filtering interference. Designed with powerful seam speakers, exceptional voice clarity is guaranteed.

  Easy, Wireless Screen-sharing
  The V6 Classic Series’ dual WiFi modules simultaneously support a screen-sharing hotspot and Wi-Fi network connection. With low image latency, you’ll enjoy a faster, more stable connection, and a superb screen-sharing experience.

  Efficient, Inspired Brainstorming
  Start the whiteboard with just one click and dive into creative, efficient brainstorming. Equipped with 20 touch points, the device supports two people writing simultaneously and comes with a variety of pre-installed graphic templates.

  Smart Optical Character Recognition (OCR) technology allows you to easily convert handwritten text to print.
  Recording your meetings has never been more efficient. Scan the code and deliver all the meeting minutes, including annotations, to your mailbox – with just one click.

  Perfectly Synced
  The V6 Classic Series’ front-facing Type-C interface design allows you to cast from, and control, your own devices through the touchscreen. You can also use its camera, microphone, and speakers directly from your laptop. Wired screen-sharing requires just one Type-C cable – it’s that easy.

  Control Your Devices Through the Touchscreen
  No more back and forth from your seat during presentations – project content via your laptop directly to the display and operate your laptop using the touchscreen display.

  Bring Your Own Device (BYOD)
  Access the V6 Classic Series panel’s camera, microphone, and speakers directly from your own device when you start a meeting from your laptop.

  Prioritizing Healthcare
  Antibacterial glass, antibacterial passive styluses, and an antibacterial power button keeps you safe

  Instant Device Access and Management
  IT teams can easily access and manage all MAXHUB devices instantly through the cloud.
  Remotely update device firmware, turn the screen on/off, install apps, deliver a message to all panels, and more using the pre-installed MAXHUB device-management app.

  Effortless Access with MAXHUB OS 6.0
  MAXHUB OS 6.0 provides easy access to whiteboarding, video conferencing apps, and wireless projection. Users can personalize the customizable homepage for a tailored user experience, and join a scheduled meeting with just one click thanks to the integrated calendar design.

• Display	Specifications
  Diagonal Size (inch)	75
  Backlight	Direct-lit LED
  Panel Technology	VA
  Aspect Ratio	16:9
  Resolution	3840 x 2160
  Refresh Rate	60Hz
  Response Time	8.5ms
  Brightness (typ)	350²
  Contrast Ratio	5000:1
  Viewing Angle	178°/178°
  Colour Gamut (typ)	90%NTSC
  Display Orientation	Landscape
  Operation Hour	16/7
  Touch System	Specifications
  Touch	IR Touch
  Max Touch Points Supported	20
  Object Recognition Range	≥ 2mm
  Accuracy	± 1mm
  Glass	Zero parallax, 3mm Anti-Glare, Antibacterial
  Supported OS (Touch Return)	Windows10/Windows8/Windows7/WindowsXP/Android/Linux/Mac OS X/Chrome OS
  Camera/Audio/Microphone	Specifications
  Built-in Camera	Yes, Single Camera, 48MP
  Camera Features	Auto Frame / Speaker Tracking
  Speaker Output Power	2.1 channel, 2x10W+20W
  Microphone Array	8x far-field, beam-forming microphone – max 8m range
  Connectivity	Specifications
  Input	HDMI In x1, USB 2.0 x1, USB 3.0 x2, TOUCH 2.0 x1, USB Type-C x2
  Audio	Audio Out x1
  Control	RS232 x1
  Proprietary PC Slot	Yes (No PC Included
  Wi-Fi Module	SI06 (Included)
  Dimensions & Weight	Specifications
  Product Dimensions (WxHxD)	1,709 x 1,026 x 87 mm
  Shipping Dimensions (WxHxD)	1,863 x 1,140 x 225 mm
  Net Weight	48.3 Kg
  Shipping Weight	62.8 Kg
  Wall mount	800 x 400 mm
  Screws for VESA	M8 x 25mm
  Power	Specifications
  Power Supply	AC100-240V,50/60Hz
  Max Power Consumption	400W
  Standby	≤0.5W
  Environment	Specifications
  Operating Temperature	0°C ~ 40°C
  Operating Humidity	10% ~ 90%RH
  Storage Temperature	-20°C ~ 60°C
  Storage Humidity	10% ~ 90%

• Description	Downloads
  MAXHUB C6530 75” 4K Classic DataSheet	Downloads

•
