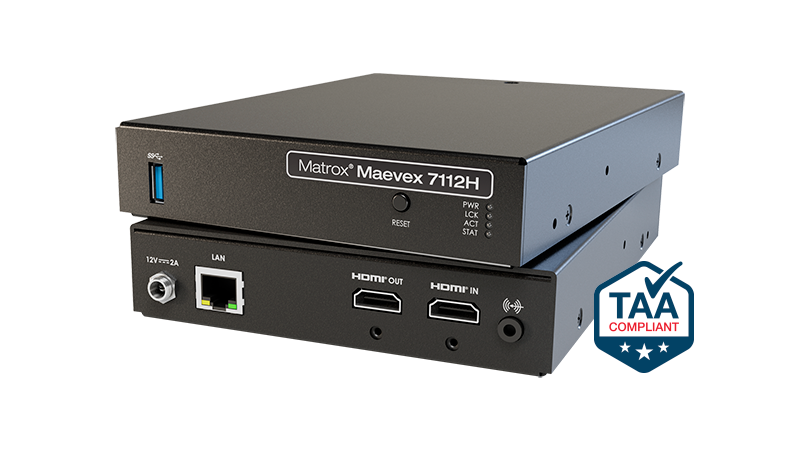

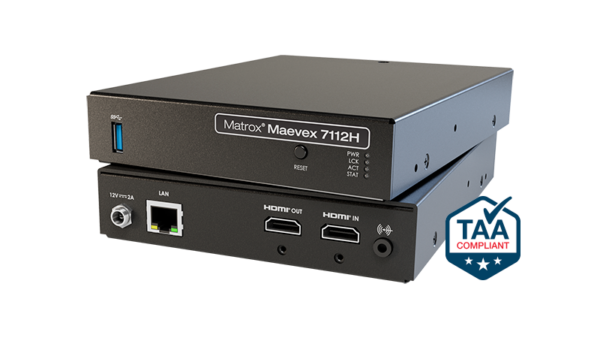

• Matrox Maevex 7112H Single-Channel 4K Encoder | MVX-E7112H-1

  Single-channel 4K60 AVC/H.264 and HEVC/H.265 video encoder
  A single-channel H.264/H.265 encoder, Matrox Maevex 7112H delivers 4K60 input capture and encode with zero-latency pass-through. Leveraging HEVC technology, Maevex 7112H can encode video content using less bandwidth and works seamlessly with other HEVC solutions. Maevex 7112H supports multiple streaming protocols and adjustable parameters. All of this in a quiet, low power, rack-ready appliance. Maevex 7100 Series includes the PowerStream Plus application and Command Center, a convenient new web user interface. TAA-compliant SKUs are available.

  Flexible 4K60 streaming and recording


  H.265 & H.264 encoding


  Single-channel 4K60 capture & encode


  Zero latency pass-through


  Ultra-low latency


  Streaming flexibility


  Fanless and low-power


  Rack mountable


  Centralized management (via PowerStream Plus, Command Center Web UI and APIs)


  H.264/ H.265 compression for high-quality, low-bandwidth AV over IP
  Stream and record at excellent quality with minimal network bandwidth consumption, achieving ultra-low latency—even at 4K60.

  Deliver a variety of content over standard 1 Gigabit Ethernet networks.

  Tailor encoding settings to meet diverse application requirements, whether it’s achieving ultra-low latency, minimizing bitrates, or encoding desktop content.


  Enterprise-grade security
  Integration with Microsoft Active Directory for access control

  HTTPS communication for secure device control

  Secure and verified firmware and vulnerability updates

  802.1x support for network authentication*

  SRT support with AES encryption

  *Available in future release.

  Single stream and record. Ultimate convenience.
  Deliver source content to on-premises end points over LAN, WAN (VPN), and internet. Feed cloud-based servers, and record to any accessible network location, including a NAS and NVR, for after action review—all in a compact form factor. You can also leverage RTMP for seamless cloud integration and reliable video streaming. Support for the Secure Reliable Transport (SRT) protocol ensures that reliable, high-quality streaming is also possible on noisy or unpredictable networks.


  Rack mountable. Ultra quiet operation.
  The Maevex 7100 encoder is a stand-alone appliance housed in a 1U ⅓ rack width. Place the appliance on the desktop, workstation, or rack, and it’s ready to use.

  And its fanless operation means that Maevex is made for control rooms, operation centers, and other mission critical environments that require a noise level of 25 dB and less.

• Category	Details
  Maximum Capture Resolution	1x 3840×2160 @60Hz
  Color Space Capture	RGB and YUV 8-bit support
  Color Space Conversion Support
  Encoding Formats (Codecs)	Video: H.264/MPEG-4 Part 10 (AVC) Video: H.265/MPEG-H Part 2 (HEVC) Audio: MPEG-4 AAC-LC, OPUS, and LPCM
  Chroma Sub-sampling	4:2:0 (8-bit)
  Encoding Capability @4:2:0	1x 3840×2160 @60Hz
  Profiles	Main (MP), Main Intra, Main10, Main10 Intra, Main, Intra up to Level 5.1 High Tier
  Encoding Level	Up to 5.2
  Bitrate Range (Per Stream)	64Kbps to 60 Mbps 15 Mbps (default)
  Rate Control	CBR, VBR, adjustable GOP size
  Audio Sample Frequency	32 kHz, 44.1 kHz, and 48 kHz
  Audio Bitrates	From 64 to 320 Kb/s (AAC-LC, OPUS, and LPCM)
  Scaling	Yes
  Recording File Formats	Transport Stream (.TS)
  Programmability	Start/stop, duration, file location
  Recording Locations	Shared network drive or NAS USB 3.0*
  Networking Interface	Streaming protocols: RTSP (TCP), RTCP & RTP (UDP) – all required RTP over UDP SRT over UDP RTMP/(S) MPEG2-TS over UDP MPEG2-TS over RTP RTSP over TCP (interleaved)
  Command & Control	HTTPS over TCP, UPnP (discovery), SSDP
  Network Standard	100/1,000 base-T Ethernet, auto speed, half/full duplex IGMPv2 and IGMPv3 support
  IP Addressing	IPv4, DHCP (default), and static IP support, IPv6
  IP Stream Support	Unicast, multicast
  Network Security	802.1x support*
  Software	PowerStream Plus (Free download) Compatible with Maevex 6100 Series and Maevex 5100 Series
  	Network discovery Multi-encoding and recording management Multi-protocol management
  	Frame rate management Resolution control Administrator and user credential management
  	Scaling management Command Center Web UI Encoding and recording management
  	Multi-protocol management Frame rate management Resolution control Scaling management
  	Maevex 7100 Series REST API (Available for lower-level development)
  Supported Operating Systems	Microsoft® Server® 2022, Windows® Server® 2019, Windows® 11, Windows® 10
  Connectivity	Network Connector: 1x RJ45 with status LED indicators
  	Video Input: 1x HDMI® 2.0 (Type A) with audio support
  	Video Output/Pass-through: 1x HDMI® 2.0 (Type A) with audio support
  	Audio Input: 1x HDMI digital LPCM two-channel stereo audio 1x 3.5 mm analog stereo audio in
  	0.57 Vrms, 29 kΩ, 6 dB to +16.5 dB
  	Audio Output: 1x HDMI digital LPCM two-channel stereo audio
  	USB (For recording): 1x USB 3.0*
  Hardware	Noise Emission: Fanless
  	Power Supply: 100-240 VAC in, 12 VDC out, ~12W typical (40W max) Barrel locking power connector
  	Power cords included: US, EU, UK, Aus/NZ
  Product Dimensions	7.11 x 5.50 x 1.31 in (18.07 x 13.97 x 3.33 cm)
  Form Factor	Standalone appliance Rack mountable (1U, 1/3R) Weight is ~350 grams/0.77 lbs
  Operating Conditions	Temp: -0 to 45 degrees C Altitude: 650 hPa (3580m) to 1013 hPa (0m) Humidity: 10 to 90% non-condensing
  Storage Conditions	Temp: -40 to 70 degrees C Altitude: 192 hPa (12000m) to 1020 hPa (-50m) Humidity: 10 to 90% non-condensing
  Part Number	MVX-E7112H-1
  Accessories	Rackmount Kit (part number: RMK-19TR-A) Secure Cable Solution for HDMI (part number: SK-SLND-4)
  Warranty	Three-year limited warranty with free online or telephone support
