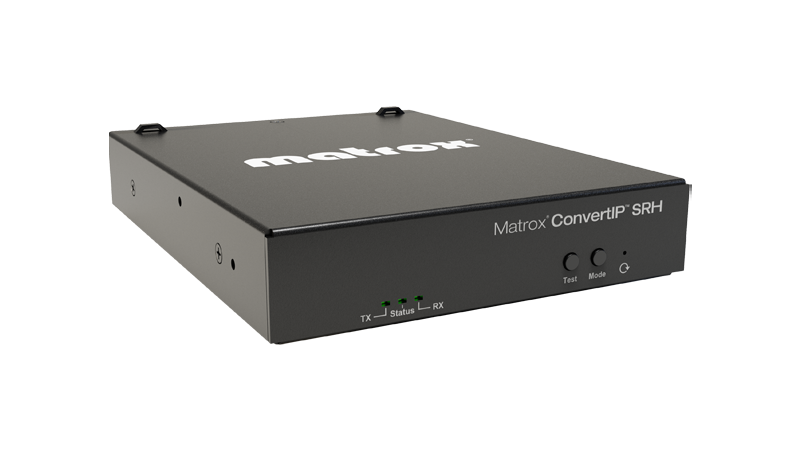

Matrox ConvertIP SRH 1x RJ45 network port, HDMI I/O. Power Supply | CIP-SRH

• Description
• Specifications

• Matrox ConvertIP SRH 1x RJ45 network port, HDMI I/O. Power Supply | CIP-SRH

  Single-channel RJ45 HDMI-to-IP transmitter/receiver
  Matrox ConvertIP SRH is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring one RJ45 port, ConvertIP SRH is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.

  Key features
  HDMI I/O
  1G and 2.5G support over RJ45
  Transmit or receive IP signals from a single device
  Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
  Fanless design for quiet cooling
  Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
  Compact form factor mounts easily to the back of a monitor
  Web-based user interface for managing ConvertIP devices
  Complimentary ConvertIP Manager Windows application for simple commission and deployment
  HDCP 1.4 and 2.2 support

  Transport formats
  IPMX ready
  Colibri codec for visually lossless transmission of compressed of media over 1G network
  Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
  Glass-to-glass latencies of 1ms achievable

  Optional products
  ConductIP Media Routing Appliance to discover, route, and monitor ST 2110 or IPMX signals
  Bracket for VESA mounting behind monitors
  1 RU rack shelf that holds three appliances
  Matrox NRG RPSU fault-tolerant, hot-swappable, and rack-mountable power supply
  Crestron Module to expand existing controlled environments

• Feature Category	Feature Details
  Part Number	CIP-SRH
  Form Factor	Standalone appliance, Rack mountable: 1U, 1/3 rack (horizontal)
  Connectivity	– Video Input: 1x HDMI
  	– Video Output: 1x HDMI
  	– Audio Input/Output: Up to 8 channels embedded in HDMI signal
  	– Network Connector: 1x RJ45 LAN port with PoE+ (1/2.5G)
  Video and Audio Processing	– Maximum Video Resolutions: 4096 x 2160 at 60p
  	– Bit Depth and Color Space: YCbCr 4:2:0 10-bit, YCbCr 4:2:2 10-bit, RGB 4:4:4 8-bit
  	– Video Scaling: High Quality 10-bit scaler
  	– Color Space Conversion: Supported
  	– HDCP Support: HDCP 1.4 and 2.2
  Encoding Formats	– Video: Colibri codec, 4:2:2 10-bit YUV, 4:4:4 8-bit RGB (100 to 2000 Mbps)
  	– Optional JPEG-XS Codec License
  	– Audio: Uncompressed PCM (~1 Mbps/channel)
  	– Latency: < 1/4 frame (<4 ms)
  Network and Control	– Network Standard: RJ45 for 1 GbE or 2.5 GbE Ethernet
  	– IP Addressing: IPv4, IPv6, DHCP (default) and static IP
  	– Protocols: SMPTE ST 2110, SMPTE 2059, IPMX ready
  Physical	– Dimensions: 7.13 x 5.5 x 1.42 inches (181 x 138 x 36 mm)
  	– Unit Weight: 1.44 lbs (655 g)
  	– Cooling: Fanless
  Power	– Device Input: 12 volts, max 18 watts
  	– PoE+ Support: Yes (IEEE 802.3at Type 2)
  	– Optional Power Supply: Sold separately
  Hardware and Software	– Included: ConvertIP SRH appliance
  	– Optional: NMOS-based routing solution, JPEG-XS codec
  Environmental	– Operating Conditions: 0 to 45°C, 20-80% humidity
  	– Storage Conditions: -40 to 70°C, 5-95% humidity
  Compliance and Warranty	– EMC/EMI Compliance: CE, FCC, ICES-003, etc.
  	– Environmental Compliance: China RoHS, EU RoHS, REACH
  	– Warranty: Three-year limited
