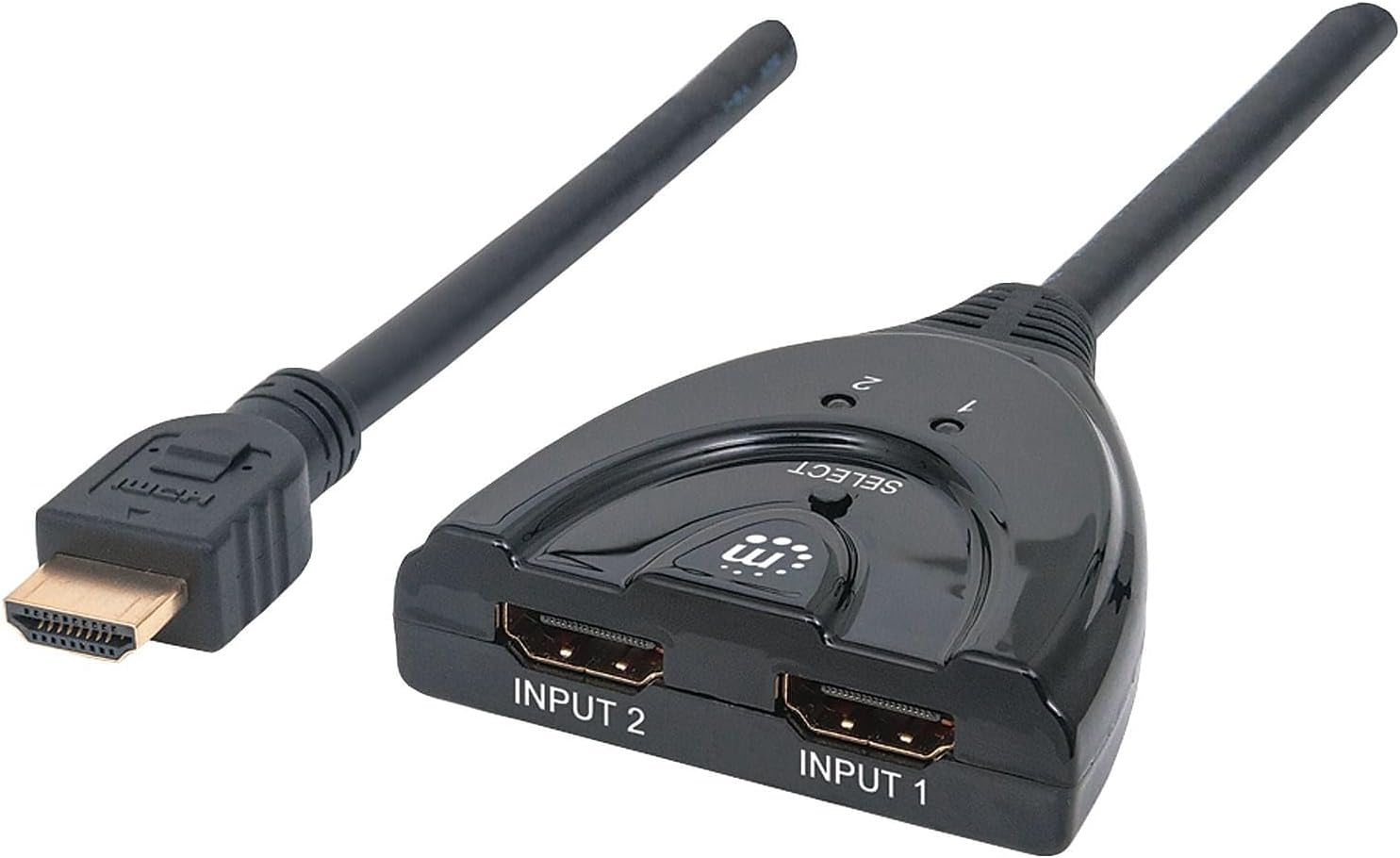

Manhattan HDMI Switch 2-Port Integrated Cable Black
Easily connect multiple HDMI sources to a single display
The Manhattan 1080p 2-Port HDMI Switch allows media enthusiasts to connect two HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single high-definition display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 1080p 2-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, its manual selection button allows users to select sources when more than one HD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 1.0 and 1.1 ensures that the Manhattan 1080p 2-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Connects two HD video sources to a single HDMI display
Manual switching with the push of a button
Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
HDCP compliant
Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
Supports 3D video and 8-bit (24-bits total) Deep Color
Plug and play: no special setup, power or remote requirements
Integrated HDMI cable
Gold-plated contacts for corrosion-free connections
Three-year warranty -
Category Details Standards and Certifications HDMI 1.3b, HDCP 1.0 / 1.1, CE, FCC, RoHS, REACH Connections One HDMI male (output), Two HDMI female (input) Signal Input/Output Input video signal: 400 – 600 mV, Input DDC signal: 5 V p-p (TTL), Max single-link range: 2.5 Gbps and 1080p resolution, Output video: HDMI 1.3b, HDCP 1.0 / 1.1, Frequency: 2.25 Gbps / 250 MHz Video Resolutions DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz Physical Dimensions: 81 x 65 x 16 mm (3.19 x 2.56 x 0.63 in.), Cable length: 0.5 m (20 in.), Net weight: 90 g (0.2 lbs.), Gross weight: 130 g (0.29 lbs.) Package Contents 1080p 2-Port HDMI Switch, Instructions -
