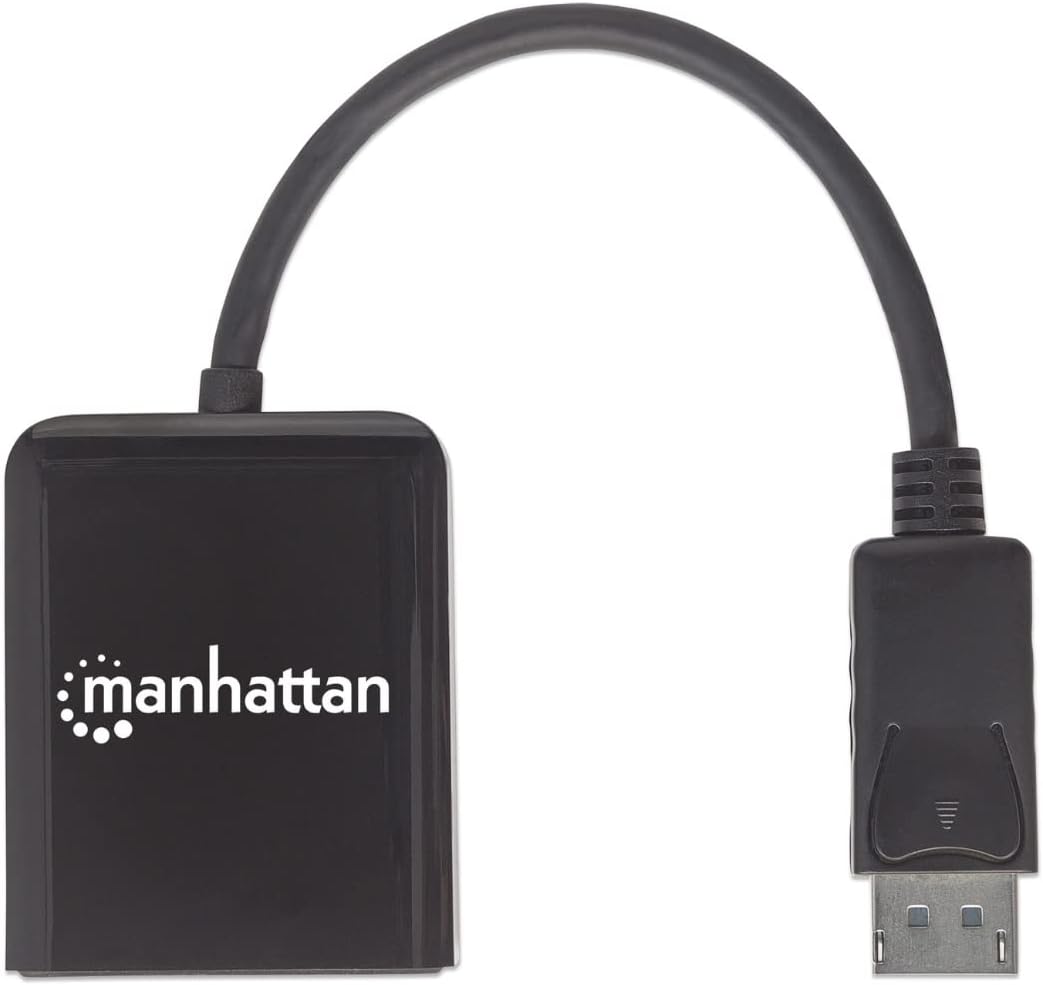

Manhattan DisplayPort to Dual DisplayPort – MST Hub
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays
The Manhattan DisplayPort to Dual DisplayPort – MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual DisplayPort – MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K DP displays. MST mode creates a video wall from two displays giving the user a more immersive experience while gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 1.3 and DVI 1.2 ensures that the Manhattan DisplayPort to Dual DisplayPort – MST Hub can provide long service and reliable performance. Quickly connect DP cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort solution is complete — no software/hardware configuration or complicated settings required.
Duplicates an Ultra-High-Definition (UHD) DisplayPort signal for up to two UHD DisplayPort displays
4K@30Hz resolution, full 3D video and Deep Color
Supports compressed DTS Master Audio, as well as 7.1 surround sound audio up to 192 kHz
Supports Mirror, Extended and Mutli-Stream Transport (MST) modes to maximize work or gaming capabilities
Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
Multi-Stream Transport (MST) mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840×2160 at 30Hz — as one; requires a graphics card that supports video-wall function
USB powered with Plug and Play installation; no special setup or remote required
Integrated DisplayPort cable
Ideal for enhancing display capabilities or creating a video wall in schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
HDCP 1.3 compliant
Gold-plated contacts for corrosion-free connections
Three-Year Warranty -
Category Details Standards and Certifications DP 1.2, HDCP 1.3, DVI 1.2, CE, FCC, RoHS, REACH, UKCA Connections 1 x DisplayPort (DP) male (input), 2 x DisplayPort (DP) female (output), 1 x 5V/2A USB Micro-B power female (input) Signal Input/Output Max single-link range: 5.4 Gbps, 3840×2160 at 30 Hz resolution, Output video: HDCP 2.2, DVI 1.2 Video Resolutions DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz Physical Dimensions: 255 x 50 x 11 mm (9.8 x 2.0 x 0.4 in.), USB Micro-B power cable: 1 m (3 ft.), Weight: 55 g (1.9 oz.), Housing: plastic Operating Environment Operation Temp: 0–70°C (32–158°F), Storage Temp: -40–80°C (-40–176°F), Humidity: 0–85% (noncondensing) System Requirements Windows XP/Vista/7/8.1/10/11, DP 1.2 graphics card Package Contents DisplayPort to Dual DisplayPort – MST Hub, USB power cable, Quick Instruction Guide -
