Manhattan DisplayPort 1.2 to 2-Port HDMI Splitter Hub with MST 4K@30Hz USB-A Powered Video Wall Function HDCP 2.2 Black
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays

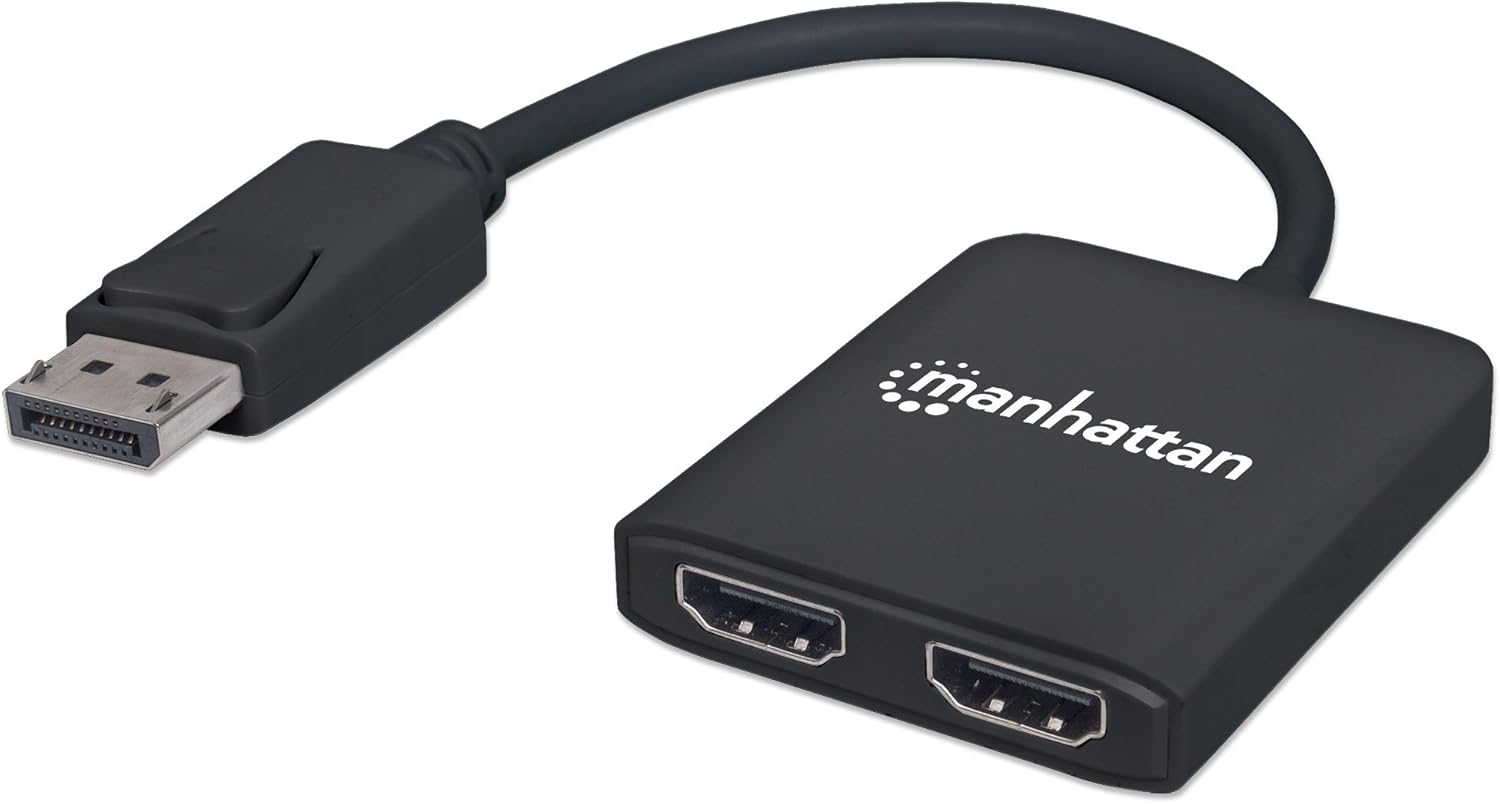

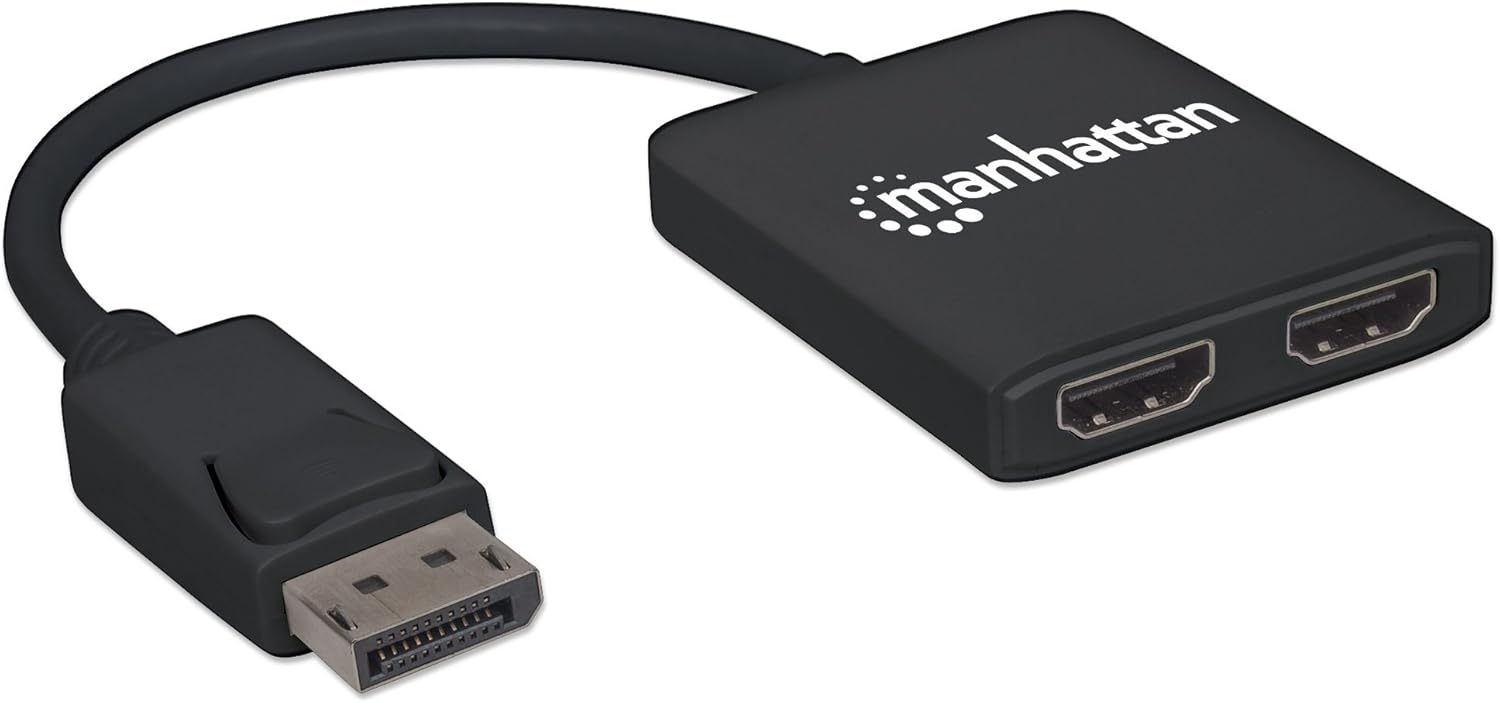

The Manhattan DisplayPort to Dual HDMI – MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual HDMI – MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual HDMI – MST Hub can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete — no software/hardware configuration or complicated settings required.
Duplicates an Ultra-High-Definition (UHD) DisplayPort (DP) signal for up to two UHD HDMI displays
4K@30Hz resolution, full 3D video and Deep Color
Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
MST mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840×2160 at 30 Hz — as one; requires a graphics card that supports video-wall function
USB powered with Plug and Play installation; no special setup or remote required

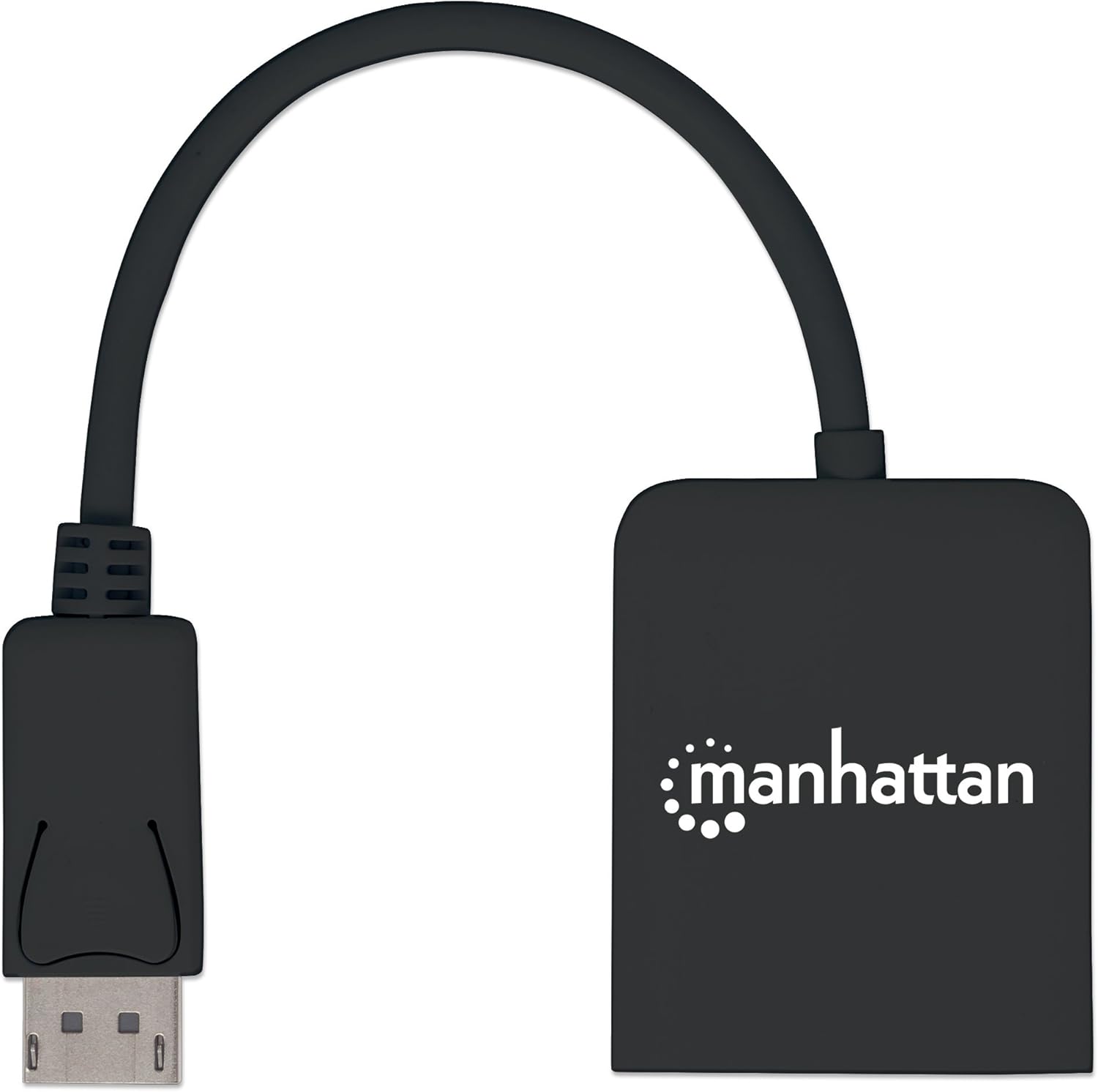

Integrated DisplayPort cable
Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
HDCP 2.2 compliant
Gold-plated contacts for corrosion-free connections
Three-Year Warranty -
Category Details Standards and Certifications DP 1.2, HDCP 2.2, DVI 1.0, CTS 1.4a, CE, FCC, RoHS2 Connections 1 x DisplayPort (DP) male (input), 2 x HDMI female (output), 1 x 5V/2A USB (Micro-B) power female (input) Signal Input/Output Input video signal: 0.5 – 1.0 V p-p, Input DDC signal: 5 V p-p (TTL), Max single-link range: 5.4 Gbps, 3840×2160 at 30 Hz resolution, Output video: HDCP 2.2, DVI 1.0 Video Resolutions DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz Physical Dimensions: 255 x 50 x 11 mm (9.8 x 2.0 x 0.4 in.), USB Micro-B power cable: 1 m (3 ft.), Weight: 50 g (1.8 oz.), Housing: plastic Operating Environment Operation Temperature: 0 – 40°C (32 – 104°F), Storage Temperature: -20 – 60°C (-4 – 140°F), Humidity (noncondensing): 0 – 96% System Requirements Windows XP/Vista/7/8.1/10, DP 1.2 graphics card Package Contents DisplayPort to Dual HDMI – MST Hub, USB power cable, Quick Instruction Guide -
