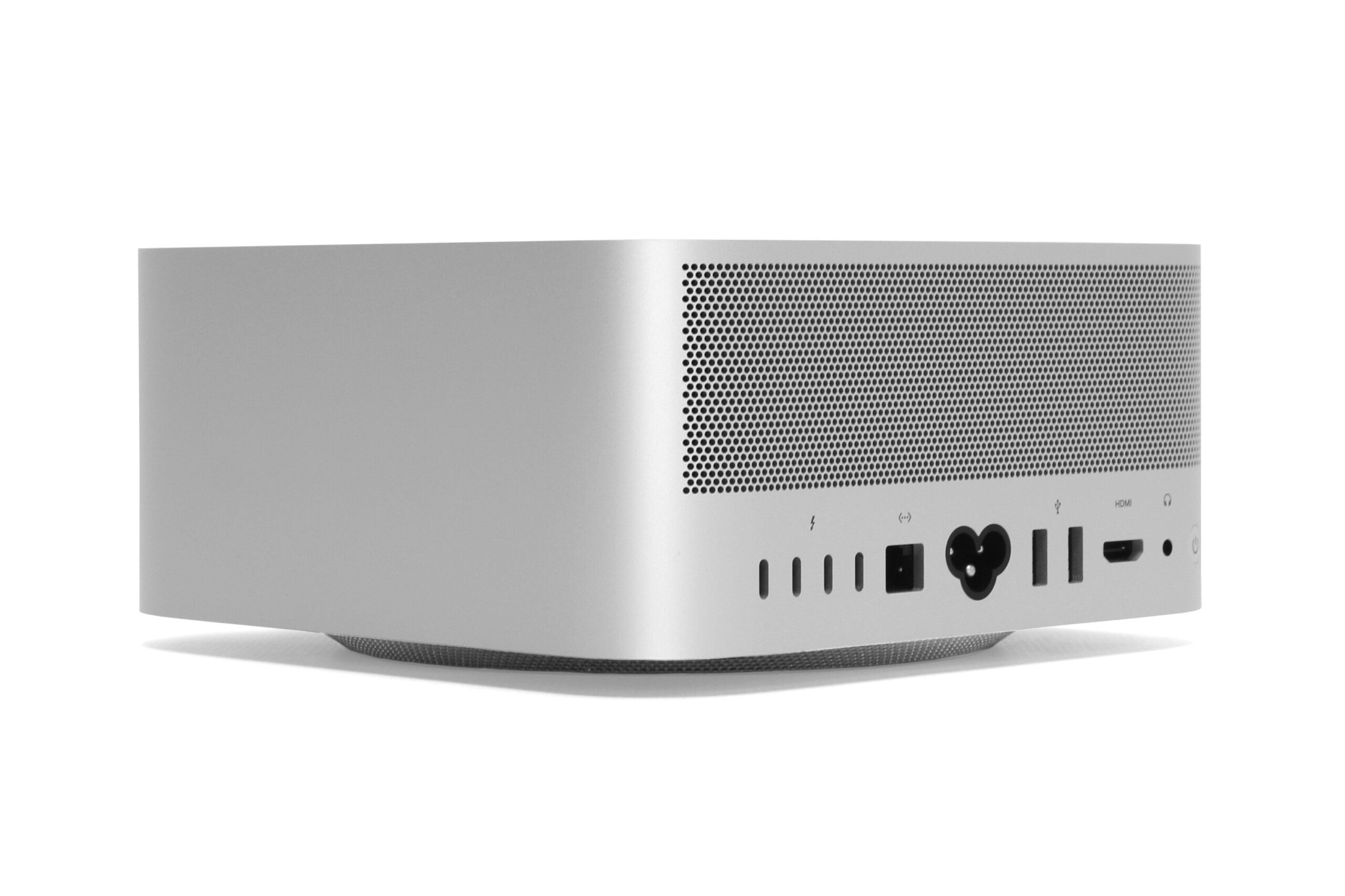

Mac Studio M2 Max 12-core (2023) – Fair
The Apple Mac Studio received an update in 2023 with the introduction of the M2 Max and M2 Ultra chips. No changes were made to the chassis but other updates include Wi-Fi 6E, Bluetooth 5.3 and support for a 8K external display.
Spec
Processor Apple M2 Max chip 12-core CPU with 8 performance cores and 4 high-efficiency cores, 16-core Neural Engine and 400GB/s memory bandwidth
Memory 32GB, 64GB or 96GB unified memory
Storage Configurable to 512GB, 1TB, 2TB, 4TB or 8TB SSD
Audio Built in speaker, 3.5mm audio jack with advanced support for high-impedance headphones and HDMI with multi-channel audio output
Connections Rear – Four Thunderbolt 4 ports (with support for DisplayPort, USB 3.1 Gen 2 and 4), Two USB-A ports, HDMI 2.1 port and 10Gb Ethernet. Front – Two USB-C ports and SDXC card slot.
Communications WiFi 6E (802.11ax), Bluetooth 5.3 and 10Gb Ethernet
Size and Weight (H)9.5 by (W)19.7 by (D)19.7cm, weighing 2.7kg
macOS 15 Sequoia
Video Support
- Support for up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI
- Support for two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
Boring Stuff Order No: MQH73 – Model No. A2901 (EMC 8292) – Model ID: Mac14,13
Performance
Geekbench 6 Single Core – 2803
Geekbench 6 Multi Core – 14788
