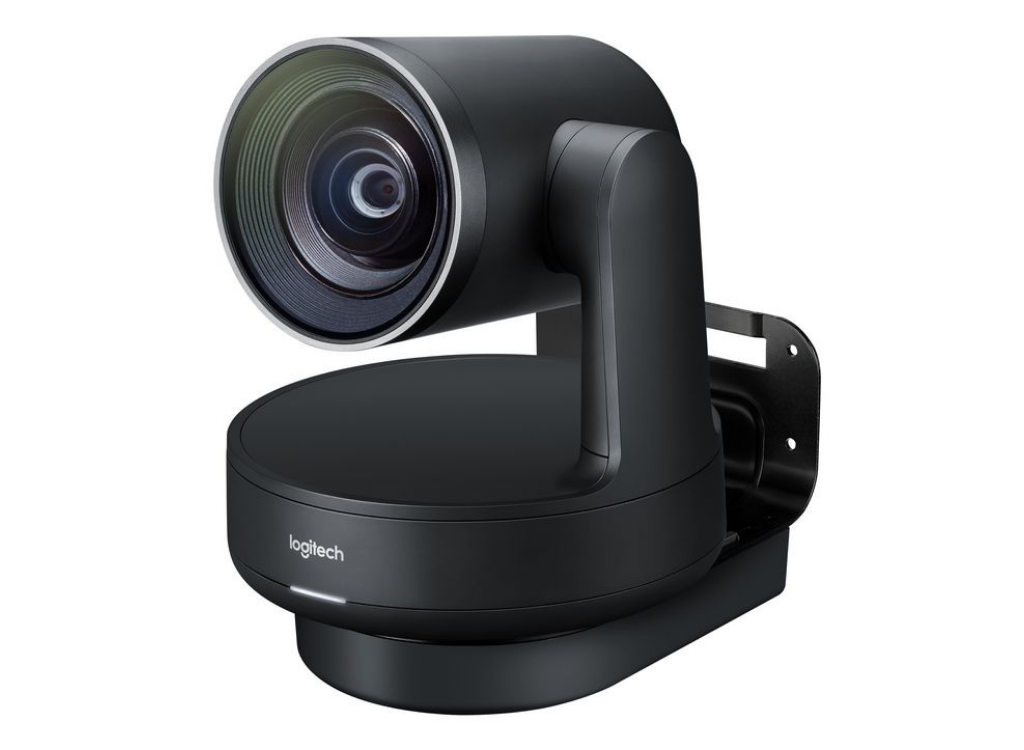

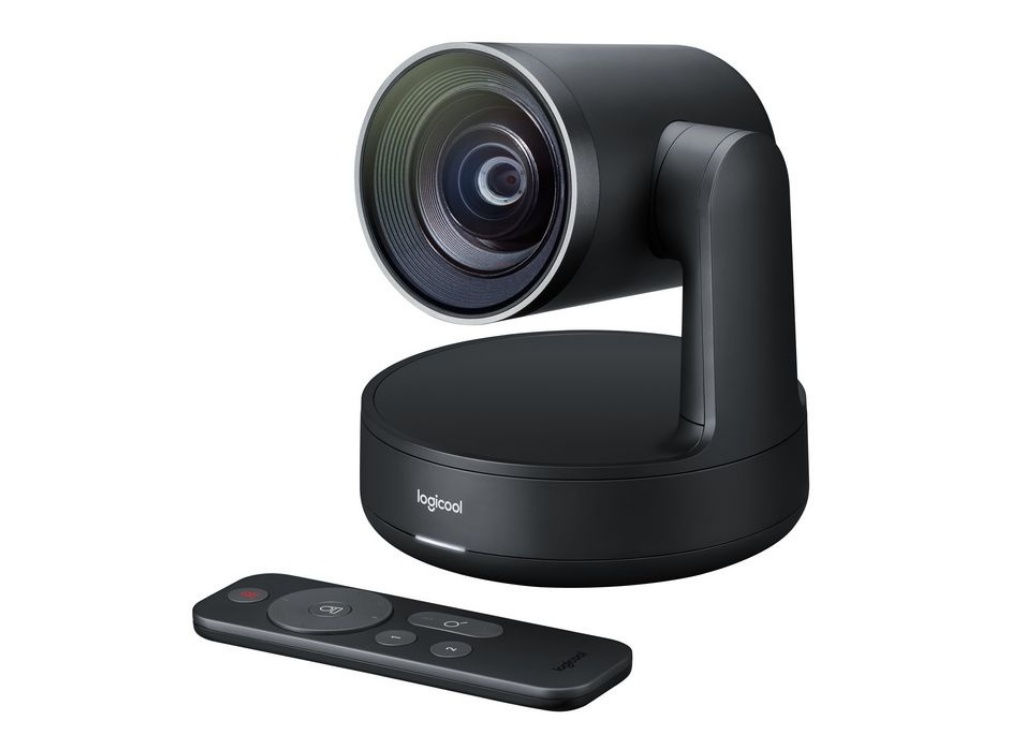

• Logitech Rally Plus Video Conferencing Camera System

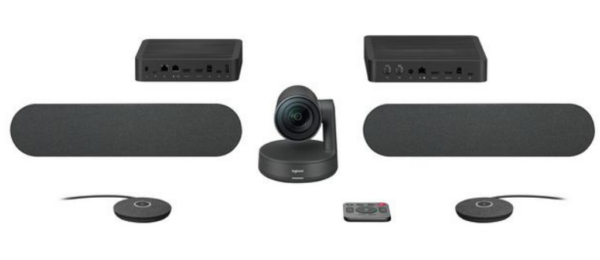

  MODULAR VIDEO CONFERENCING SYSTEM FOR LARGE AND EXTRA LARGE ROOMS
  Ensure everyone is seen and heard in every video call with Logitech Rally Plus. Rally Plus sets the standard for USB-connected conference camera systems in large rooms, uniting premium design and materials with unmatched audio and video performance.


  MIC PODS
  Add up to 7 mic pods to accommodate larger groups and provide convenient access to mute controls.


  EVERYONE IS SEEN AND HEARD
  When paired with Logitech RoomMate, Rally Plus unlocks AI video intelligence and continuous software improvements to provide a clear and natural meeting experience for remote workers.


  MANAGE REMOTELY WITH SYNC
  Use Logitech Sync with Rally Plus when it is paired with RoomMate; monitor room and device health, deploy updates, and modify settings.

• Category	Specification
  Audio
  Built-in speaker(s)	Yes
  Echo cancellation	Yes
  Frequency range	300 – 10000 Hz
  Microphone pick-up range	4.5 m
  Noise reduction	Yes
  Output level	95/100 dB
  Sample rates	0 – 48 kHz
  Battery
  Battery capacity	0.675 Wh
  Camera
  Digital zoom	15 x
  Field of view (FOV) angle	90 °
  Focus adjustment	Auto
  Number of camera presets	3
  Zoom capability	Yes
  Computer system
  Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
  Windows operating systems supported	Windows 10, Windows 11, Windows 8.1
  Features
  Cable lock slot	Yes
  Telepresence	No
  Interface module HDMI input ports quantity	2
  Interface module HDMI output ports quantity	2
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	45111902
  US ECCN Code	5A992
  Logistics data
  Harmonized System (HS) code	85176990
  Master (outer) case gross weight	12.34 kg
  Master (outer) case height	72.2 cm
  Master (outer) case length	41.7 cm
  Master (outer) case width	22.7 cm
  Microphone
  Microphone colour	Black
  Microphone direction type	Omnidirectional
  Microphone frequency	90 – 16000 Hz
  Microphone mute	Yes
  Microphone sensitivity	-27 dB
  Number of microphone arrays	2
  Number of microphones	4
  Sound pressure level (max)	95 dB
  Network
  Ethernet LAN	Yes
  Package dimensions (verified)
  Depth Verified	35 cm
  Gross Weight Verified	4 kg
  Height Verified	25 cm
  Width Verified	40 cm
  Packaging content
  AC adapter included	Yes
  Cables included	AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C
  Camera included	Yes
  External interface module included	Yes
  HDMI cable length	2 m
  Microphone included	Yes
  Networking cable length	5 m
  Power cable length	1.5 m
  Quick start guide	Yes
  Remote control included	Yes
  Speaker included	Yes
  Performance
  Bluetooth	Yes
  Number of persons	16 person(s)
  Pan range	-90 – 90 °
  Pan speed	70 °/sec
  Product colour	Black
  Product type	Group video conferencing system
  PTZ control	Yes
  Tilt angle range	-90 – 50 °
  Tilt speed	70 °/sec
  Tripod mounting supported	Yes
  Ports & interfaces
  DC-in jack	Yes
  Ethernet LAN (RJ-45) ports	3
  HDMI ports quantity	2
  Line-in	Yes
  USB 2.0 ports quantity	3
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
  USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
  USB connector type	USB Type-A, USB Type-B, USB Type-C
  Power
  Battery capacity	220 mAh
  Battery technology	Lithium
  Number of batteries supported	2
  Power source type	AC
  Product dimensions
  Net Weight (Product, kg)	3.8 kg
  Technical details
  Harmonized System (HS) code	85176990
  Number of persons	16 person(s)
  Pan range	-90 – 90 °
  Product colour	Black
  Product type	Group video conferencing system
  PTZ control	Yes
  Tilt angle range	-90 – 50 °
  Tilt speed	70 °/sec
  Vendor information
  Brand Name	Logitech
  Warranty	2 Year(s)
  Video
  Digital zoom	15 x
  HD type	4K Ultra HD
  Maximum frame rate	60 fps
  Supported video modes	1080p, 1440p, 2160p, 576p, 720p, 900p
  Weight & dimensions
  Camera dimensions (WxDxH)	152 x 152 x 182.5 mm
  Microphone dimensions (WxHxD)	102 x 102 x 21 mm
  Speaker dimensions (WxDxH)	449 x 80 x 103 mm
