Logitech Cat5e Kit | 952-000019

• Description
• Specifications
• Warranty
• Downloads

• Logitech Cat5e Kit

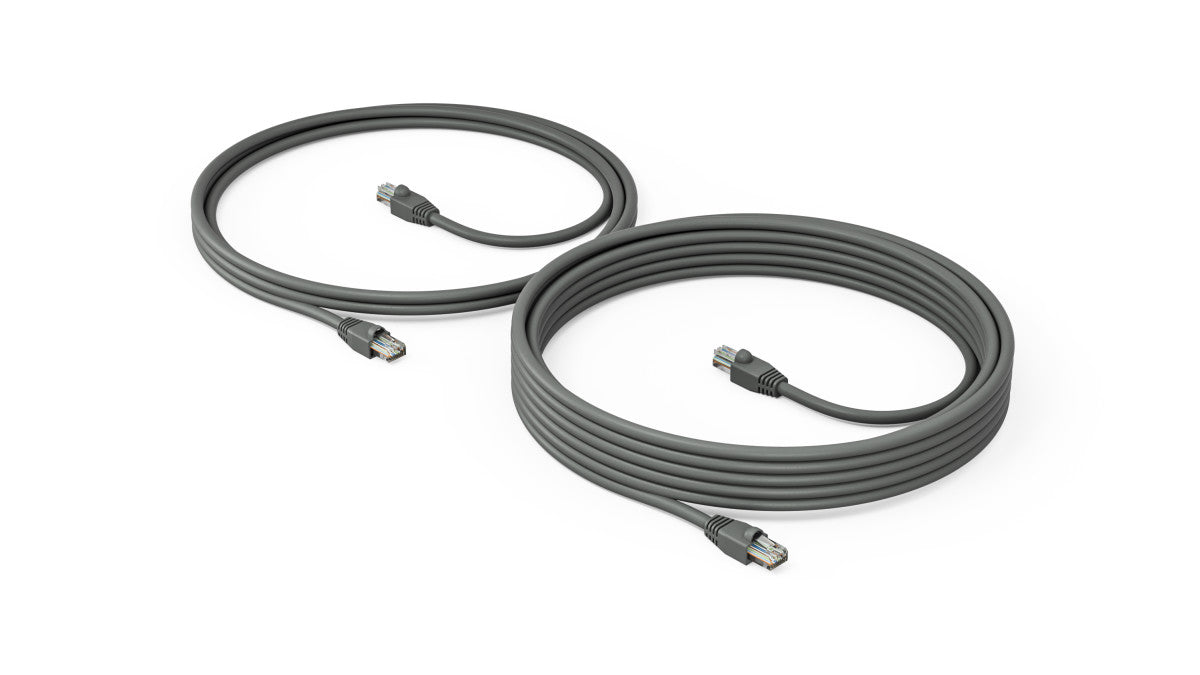

  The Cat5e Kit connects Logitech Tap up to 40 meters away from the meeting room computer using category cabling.
  Unlike USB, Cat5e supplies both data and power over a single cable, and thus eliminates the need for a separate outlet at the table to run Tap. Cat5e cabling can also be cut and crimped to exact lengths, doing away with cable coils for clutter-free deployments of Tap.

  While 10 meters of cabling are included, any Cat5e or higher cabling can be used for runs of up to 40 meters. Additionally, the Cat5e Kit is compatible with a Logitech Tap Table Mount, Riser Mount, and Wall Mount, enabling convenient operation of Tap with smart cable routing.
  In all, the Cat5e Kit allows for the placement of Logitech Tap nearly anywhere while maintaining a clean meeting room appearance.

• Attribute	Details
  Brand	Logitech
  SKU	10333975
  Manu Part #	952-000019
  EAN	097855163714
  Features
  Includes	Cabling, power supply, adapters to connect Logitech Tap
  Cabling Type	Standard Cat5e
  Cable Length	Option to use included 10m cable or supply own Cat5e for up to 40m
  Compatibility	Table Mount, Riser Mount, Wall Mount for Logitech Tap
  Weight & Dimensions
  Height	29 mm
  Width	83 mm
  Depth	85 mm
  Packaging Content
  AC Adapter Included	Yes
  Contents	Logitech Tap, Receiver Dongle, Transceiver, Power Supply, Cat5e Cables, Documentation
  Packaging Data
  Package Weight	1.03 kg
  Package Height	43.5 mm
  Package Width	227 mm
  Package Depth	337 mm
  Logistics Data
  Master Case Length	347 mm
  Master Case Height	244 mm
  Master Case Width	269 mm
  Master Case Gross Weight	6.51 kg
  Harmonized System (HS) code	85044095
  Additional Features
  Product Colour	Graphite
  Maximum Operating Distance	40 m
  Power
  Input Voltage	100 – 240 V
  Power Source Type	AC
  Technical Details
  Network	Cable types supported – Cat5e
  Ports & Interfaces
  RJ-45 Input Ports	1
  RJ-45 Output Ports	1

• Limited warranty – 2 years

• Description	Downloads
  Logitech 952-000019 Cat5e Kit DataSheet	Download
