Logitech 939-001644 Rally Mounting Kit

• Description
• Specifications

• Logitech 939-001644 Rally Mounting Kit

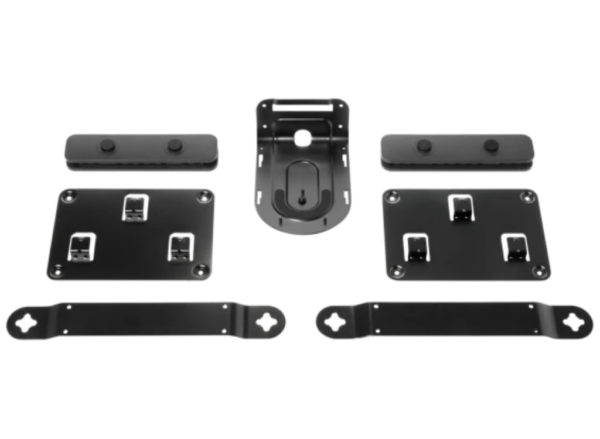

  A SLEEK, SECURE, FLEXIBLE MOUNTING SYSTEM
  Achieve a streamlined installation of each Rally system component with included brackets and mounting hardware. Camera bracket provides a secure, stable wall mount above or below the display, or cleverly inverts for near-ceiling installations. Mount speakers directly to the wall with low-profile brackets. Position hubs on a wall or beneath a table with ventilated hardware, then secure connections with the cable retention brackets for a professional appearance.

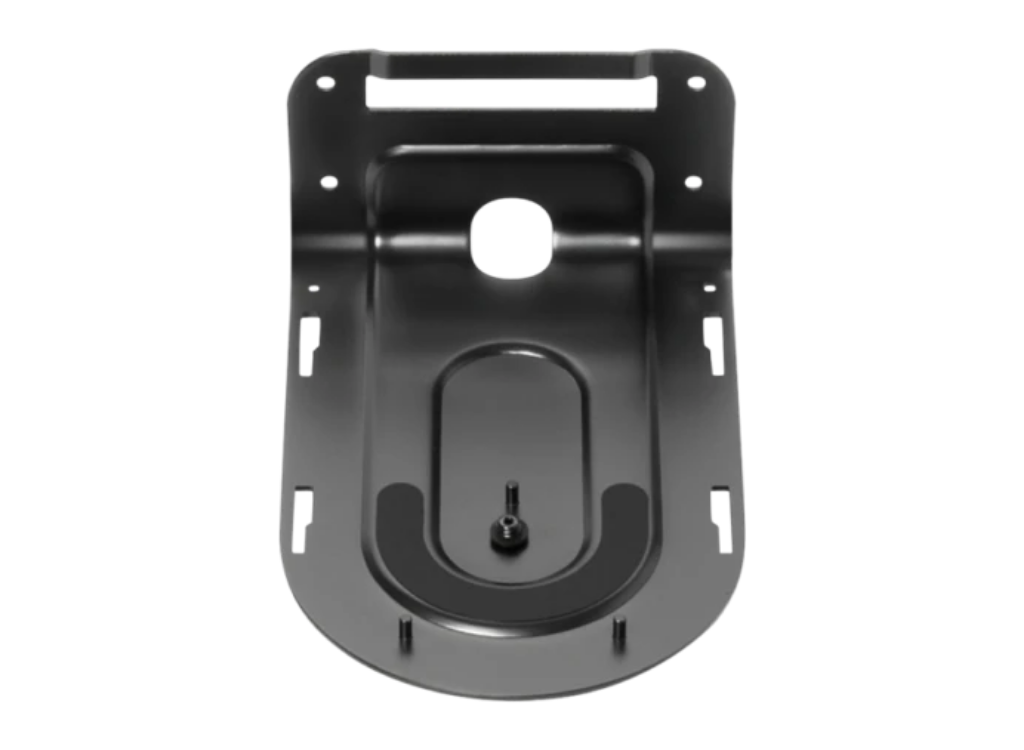

  INVERTIBLE CAMERA BRACKET
  The camera bracket provides flexibility to mount the camera on a wall directly above or below the display for a natural line of sight and eye contact with remote participants. For larger meeting spaces, the bracket can be inverted to position the camera near the ceiling for a more expansive view. A tripod screw and three-point pin system provides stability and helps keep the camera steady when the lens is in motion.

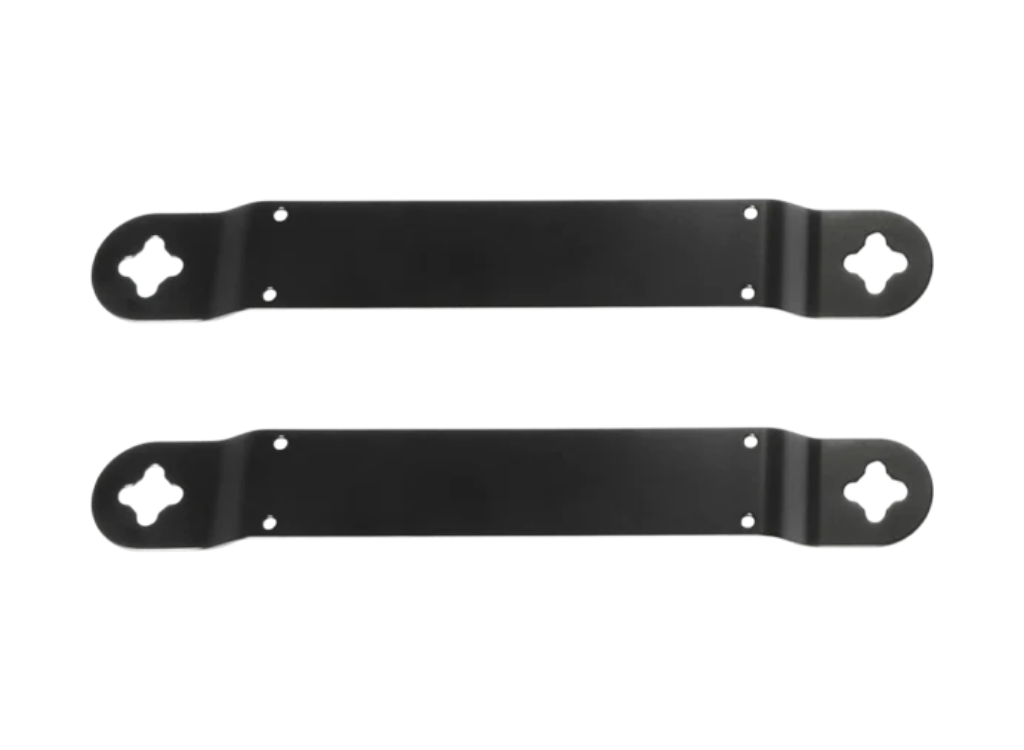

  LOW-PROFILE SPEAKER BRACKETS
  Each accessory in the Rally Mounting Kit is tailored to the system component it supports. The two brackets that mount the Rally speakers on either side of the display create a sleek “floating” appearance while enabling the speakers themselves to deliver their full acoustic potential. The result: lifelike conversational sound that helps bring people together even as the enabling technology fades unobtrusively into the background.

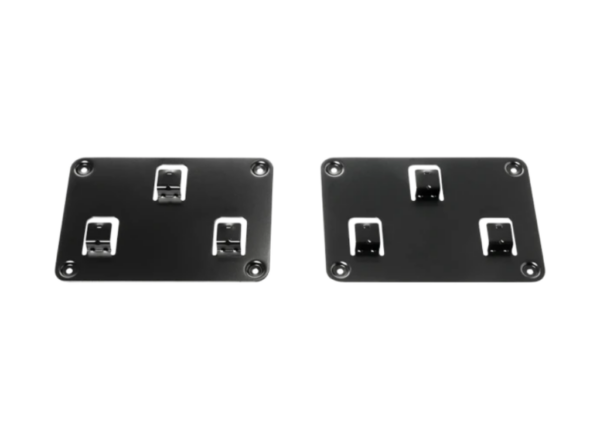

  VENTILATED BRACKETS FOR DISPLAY HUB AND TABLE HUB
  Two ventilated hub brackets provide versatile mounting options to position the Display Hub and Table Hub on a wall or beneath a table. The brackets are engineered with elevated standoffs to ensure ample air circulation for reliable cooling.


  CABLE RETENTION BRACKETS
  Guard against accidental disconnections and related trouble tickets while keeping cables neat and tidy.  Each two-piece bracket mounts near the Display Hub and Table Hub to keep the power, A/V, and data cables securely plugged in.



• DIMENSIONS	Height	Width	Depth
  Speaker Bracket	36 mm	266 mm	8 mm
  Camera Bracket	63 mm	109 mm	166 mm
  Table Hub Bracket	12 mm	164 mm	115 mm
  Display Hub Bracket	12 mm	164 mm	115 mm
  Cable Retainer	23 mm	164 mm	38 mm

  COMPATIBILITY
  Logitech Rally or Logitech Rally Plus
  Note: Rally Mounting Kit is designed for Logitech Rally systems only. A different mounting system is included with the standalone USB Rally Camera.

  PACKAGE CONTENTS
  Speaker Bracket (2)
  Camera Bracket
  Table Hub Bracket
  Display Hub Bracket
  Cable Retainer (2)
  Fasteners Documentation

  WARRANTY INFORMATION
  2-Year Limited Hardware Warranty

  PART NUMBER
  939-0016
