Lindy USB Type-C to Triple Display Converter | 43273

• Description
• Specifications
• Downloads

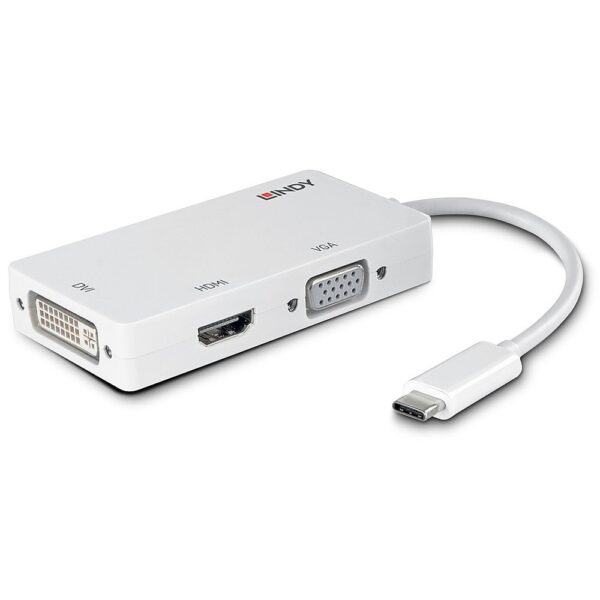

• Lindy USB Type-C to Triple Display Converter

  Converts a USB 3.1 Type C port to an HDMI, DVI or VGA port
  Requires DisplayPort Alternate Support by the USB Port/Bus
  Supports resolutions up to 4096×2160@30Hz RGB (HDMI) / 1920×1200@60Hz (DVI) / 1920×1080@60Hz (VGA)
  Plug and Play, no drivers required
  2 year warranty

  The Lindy USB Type C to Triple Display Converter allows users to connect either an HDMI, DVI or VGA screen to a Macbook, ultrabook or notebook with USB DisplayPort Alternate Mode.

  With its lightweight, low profile design, the adapter easily fits into a notebook bag and simply expands any available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters – ideal for BYOD applications.

  The converter is powered by the USB Bus, therefore no external power supply is needed. Installation is simple as no drivers are required and Type-C’s reversible design has been developed to work regardless of which way the cable is inserted into the port.

• Specifications
  AV Interface	USB Type C to HDMI & DVI & VGA
  Interface Standard	HDMI 1.4, DVI, VGA
  Supported Bandwidth	10.2Gbps
  Maximum Input Resolution	HDMI: 4096×2160@30Hz RGB
  	VGA: 1920×1080@60Hz
  	DVI: 1920×1200@60Hz
  Maximum Output Resolution	HDMI: 4096×2160@30Hz RGB
  	VGA: 1920×1080@60Hz
  	DVI: 1920×1200@60Hz
  Chipset	VL100
  Compatibility	USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
  Power Delivery	–
  HDCP Support	–
  Supported Audio	–
  Separate Audio Ports	–
  Special Features	DisplayPort Alternate Mode
  Inputs	1 x USB Type C (Male)
  Outputs	1 x HDMI (Female), 1 x DVI (Female), 1 x VGA (Female)
  Power	Bus-powered
  Physical Properties
  Dimensions (approx.)	WxDxH: 85x45x15mm (3.35×1.77×0.59in)
  Fixed Cable Length	130mm (5.12in)
  Housing Material	Plastic
  Net Weight	0.049kg (0.11lb)
  Operating Temperature	0°C – 45°C (32°F – 113°F)
  Storage Temperature	-10°C – 70°C (14°F – 158°F)
  Humidity	10 – 85% RH (non-condensing)
  Power Requirements	–
  Colour	White
  Miscellaneous
  Packaging Type	Polybag
  Packaging Dimensions	160x160x20mm (6.3×6.3×0.79in)
  Gross Weight	0.07kg (0.15lb)
  Warranty (Years)	2
  Certified	CE, UKCA, FCC, RoHS & REACH
  Package Contents	USB to Triple Display Converter, Lindy Manual
  Purchasing Information	No.: 43273, EAN: 4002888432733
