Lindy USB Type C to DisplayPort 4K144 Converter | 43269

• Description
• Specifications
• Downloads

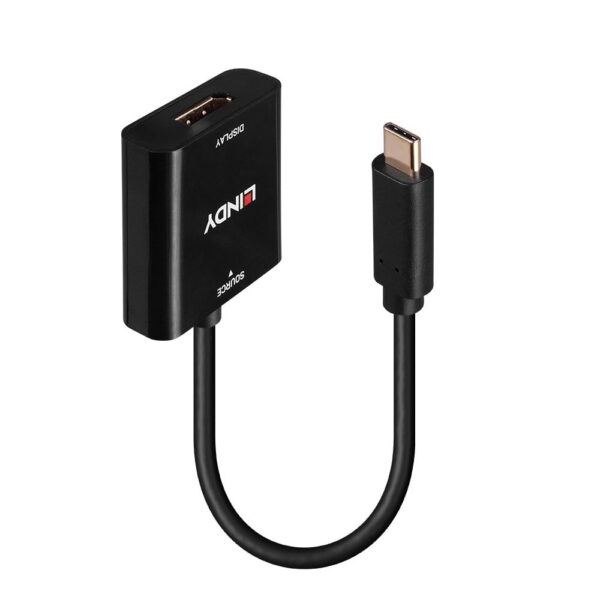

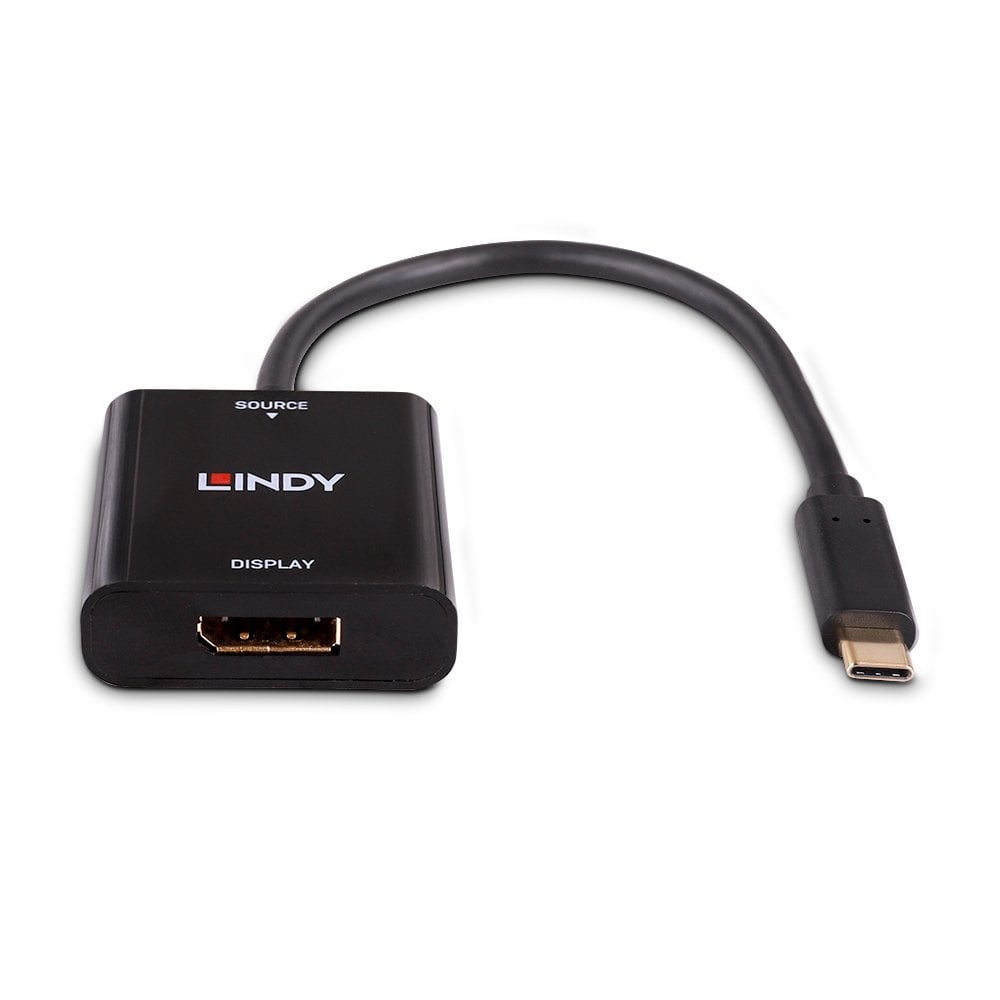

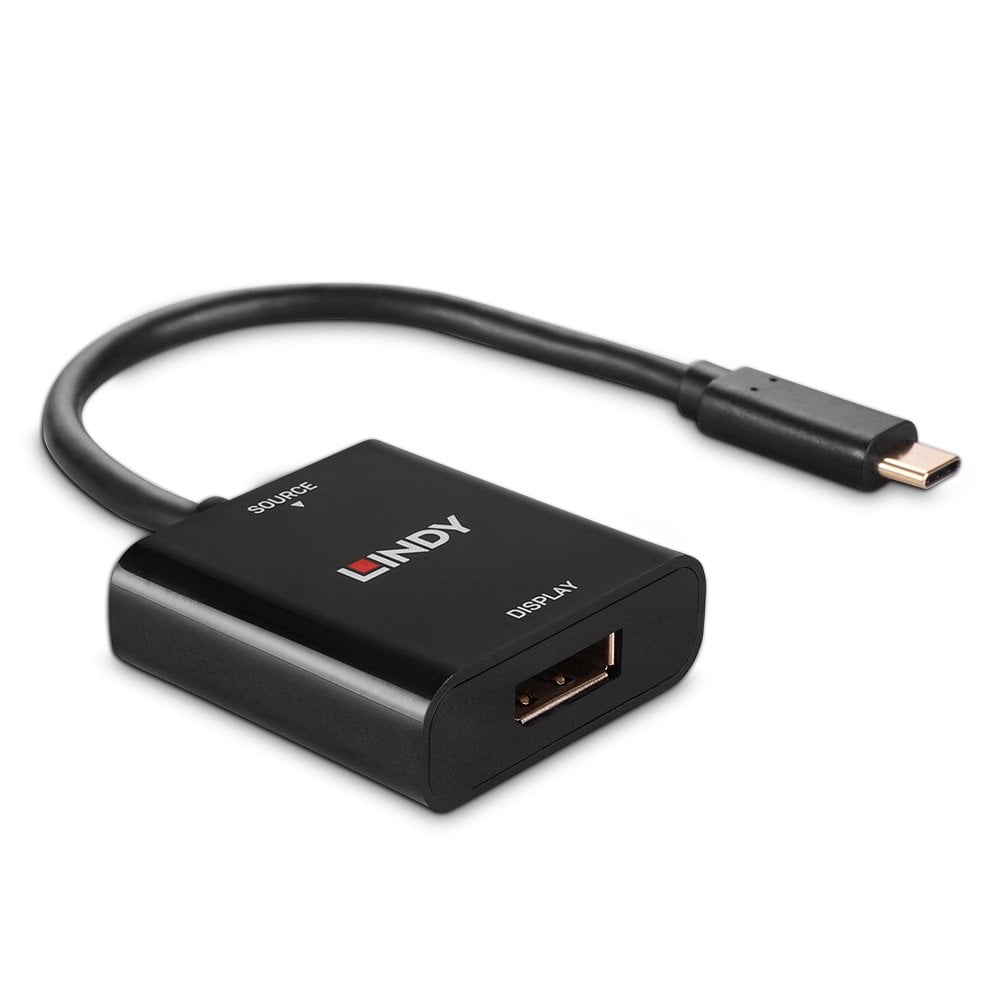

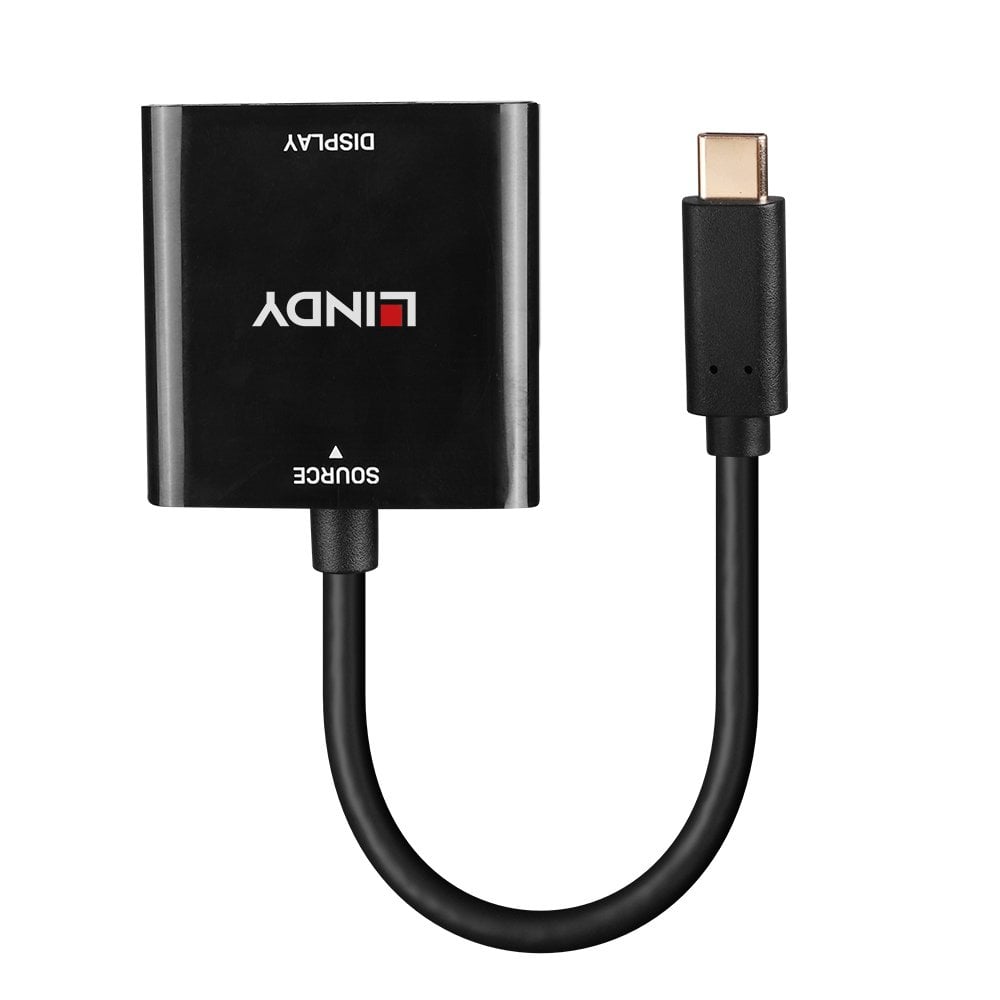

• Lindy USB Type C to DisplayPort 4K144 Converter

  Converts a USB Type C port to an DP port
  Supports DP resolutions up to 4K 3840×2160@144Hz
  Requires DisplayPort Alternate Mode support by the USB Port/Bus
  Plug & Play, no drivers required
  2 year warranty

  The Lindy USB Type C to DisplayPort Converter allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

  With support for resolutions up to 3840×2160 144Hz, content can be viewed with superior clarity and stunning accuracy, while the Type C connectors reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, notebook or Macbook.

  With Plug and Play installation, this converter can be installed with minimum fuss, perfect for both professional and first time users.

• Specifications	Details
  AV Interface	USB Type C to DisplayPort
  Interface Standard	DisplayPort 1.4
  Supported Bandwidth	32.4Gbps
  Maximum Input Resolution	3840×2160@144Hz
  Maximum Output Resolution	3840×2160@144Hz
  Chipset	LT87101CD
  Compatibility	USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
  Power Delivery	–
  HDCP Support	HDCP 2.2
  Supported Audio	–
  Separate Audio Ports	–
  Special Features	DisplayPort Alternate Mode support
  Connectors
  Inputs	1 x USB Type C (Male)
  Outputs	1 x DisplayPort (Female)
  Power	Bus-powered
  Physical Properties
  Dimensions (WxDxH)	DP: 45x45x15mm (1.77×1.77×0.59in); USB: 25x12x7.3mm (0.98×0.47×0.29in)
  (Fixed) Cable Length	210mm (8.27in)
  Housing Material	ABS, plastic
  Net Weight	0.03kg (0.07lb)
  Operating Temperature	-20°C – 40°C (-4°F – 104°F)
  Storage Temperature	-40°C – 80°C (-04°F – 176°F)
  Humidity	10 – 85% RH (non-condensing)
  Power Requirements	–
  Colour	Black
  Miscellaneous
  Packaging Type	Polybag
  Packaging Dimensions	174x194mm (6.85×7.64in)
  Gross Weight	0.039kg (0.09lb)
  Warranty (Years)	2
  Certified	CE, FCC, RoHS & REACH, CP65
  Package Contents
  USB Type C to DisplayPort Converter
  Purchasing Information
  No.	43269
  EAN	4002888432696

• 43269 : Datasheet
