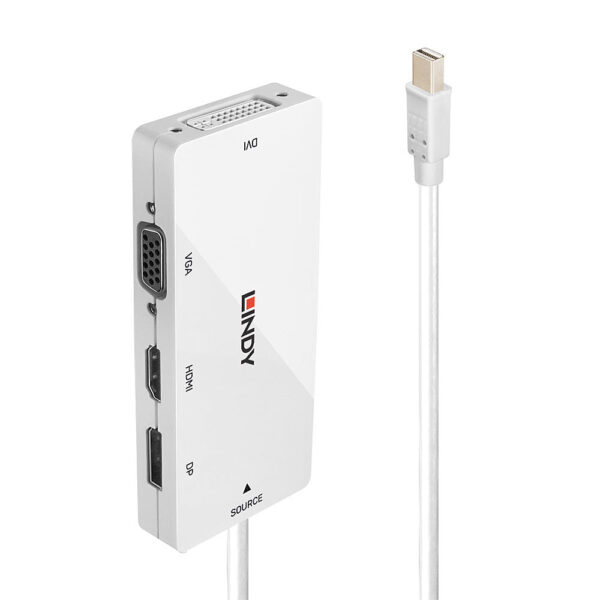

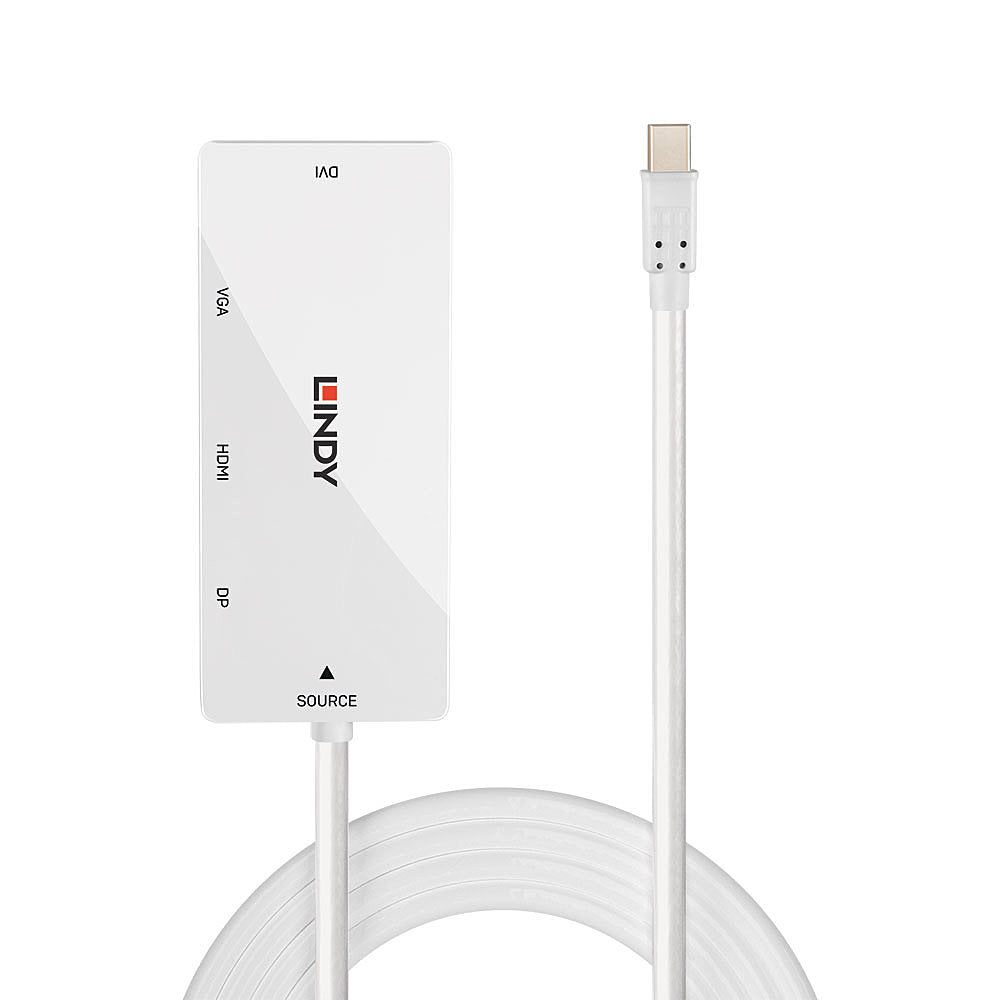

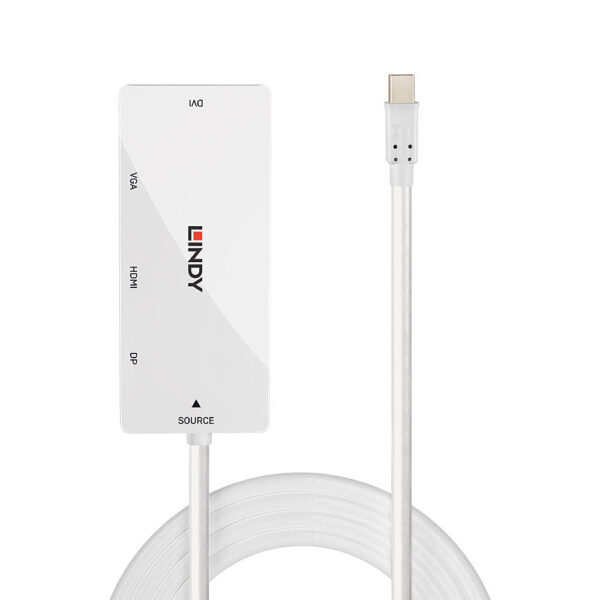

• Lindy Mini DisplayPort 1.2 to Multi-AV Active Converter | 38311

  The Lindy Mini DisplayPort to Multi-AV Converter allows users to connect either a HDMI, DP, DVI or VGA screen to a Mini Displayport source. Supporting full 4K Ultra HD resolutions up to 3840×2160@60Hz on DP and HDMI displays, content can be viewed with superior clarity and stunning accuracy. DVI monitors are supported with a maximum resolution of 1920×1200@60Hz, VGA monitors and projectors up to 1920×1080@60Hz.

  With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to various digital and analogue video devices, without having to carry multiple adapters – ideal for BYOD applications.

  Please note that the DVI port only provides digital, no analog signals





• Category	Specification
  AV Interface	Mini DisplayPort to DP, HDMI, DVI, VGA
  Interface Standard	DisplayPort 1.2, HDMI 2.0, DVI-D, VGA
  Supported Bandwidth	21.6Gbps
  Max Input Resolution	3840×2160 @ 60Hz 4:4:4 8bit
  Max Output Resolution	3840×2160 @ 60Hz (DP, HDMI), 1920×1200 @ 60Hz (DVI, VGA)
  Chipset	PS8339B, ANX9833, PS8348B, PS176
  HDCP Support	HDCP 2.2
  Supported Audio	Pass-through for DP & HDMI
  Separate Audio Ports	–
  Special Features	–
  Connectors
  Input	Mini DisplayPort (Male)
  Outputs	HDMI Type A (Female), DisplayPort (Female), DVI-D (Female), VGA (Female)
  Physical Properties
  Dimensions	Connector: 19x11x9mm (0.75×0.43×0.35in)
  Housing	106x46x14.5mm (4.17×1.81×0.57in)
  Cable Length	150mm (5.91in)
  Housing Material	Plastic
  Jacket Material	PVC
  Jacket Diameter	4.8mm (0.19in)
  Minimum Bend Radius	48mm (1.89in)
  Net Weight	0.053kg (0.12lb)
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-10°C to +70°C (14°F to 158°F)
  Humidity	10 – 85% RH (non-condensing)
  Colour	White
  Miscellaneous
  Packaging Type	Polybag
  Packaging Dimensions	160x160x20mm (6.3×6.3×0.79in)
  Gross Weight	0.089kg (0.2lb)
  Warranty	2 years
  Certifications	CE, FCC, RoHS, REACH, California Prop. 65
  Package Contents	Mini DisplayPort 1.2 to Multi-AV Active Converter
  Purchasing Information
  Item Number	38311
  EAN	4002888383110
