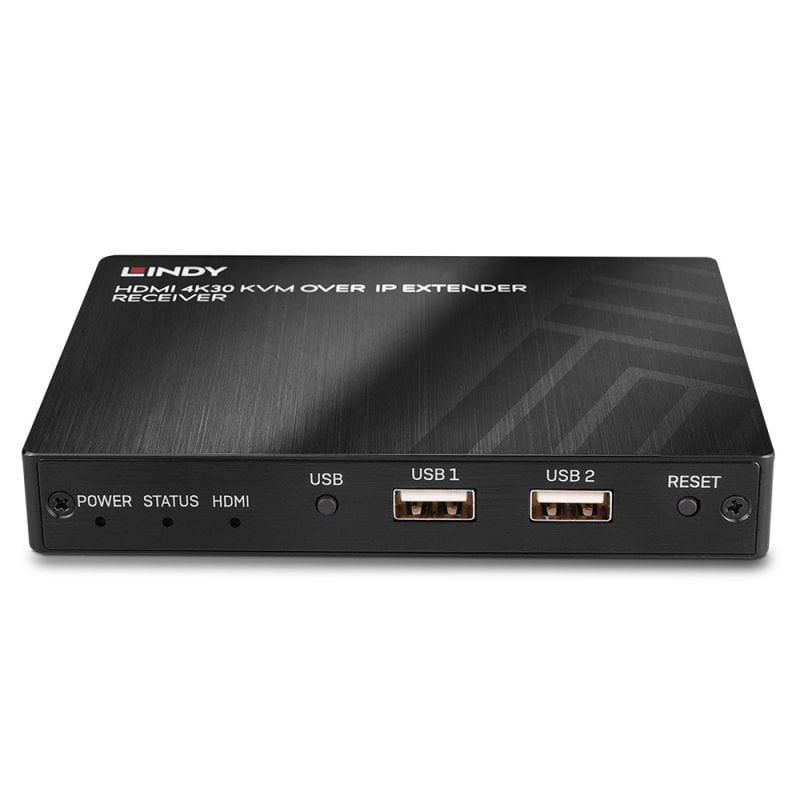

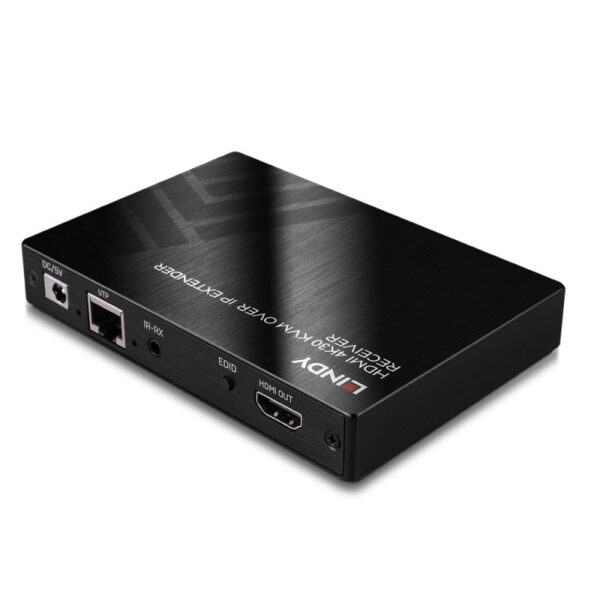

• Lindy KVM Over IP Extender – Receiver | 38265

  The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This receiver unit must be connected to a transmitter unit (No. 38264 – not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It’s also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter Unit (No. 38264 – not included) to be controlled by several consoles each connected to this receiver via a dedicated Ethernet switch or VPN.

  This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.

• Category	Details
  AV Interface	HDMI®
  Console Interface	USB
  Interfaces Standard	HDMI® 1.4, USB (HID)
  Supported Bandwidth	10.2Gbps
  Maximum Distance	150m (492.12ft) (Point to Point)
  Maximum Resolution	4K@30Hz (3840×2160@30Hz)
  HDCP Support	HDCP 1.4
  Supported Audio	Audio supported over HDMI® signal
  Separate Audio Ports	–
  Transmission Protocol	IP
  Transmission Medium	Cat.5e / 6
  Special Features	IR Signal (25 to 56kHz) forwarding
  Transmitter KVM Interfaces	–
  Transmitter Extension Port	–

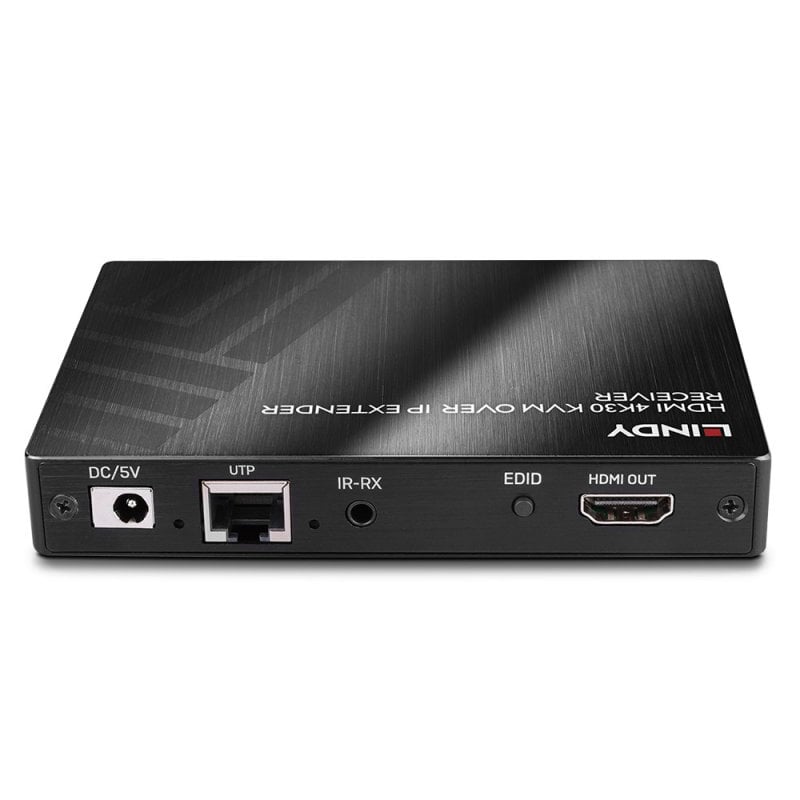

  Receiver Console Interface	HDMI® (Female), 2 x USB Type A (Female), IR 3.5mm (Female)
  Receiver Extension Port	RJ45
  Bi-directional Ports	–
  Other Interfaces	IR 3.5mm (Female)
  Power	5.5/2.1mm DC socket
  Dimensions (WxDxH)	124x85x24mm (4.88×3.35×0.94in)
  Housing Material	Plastic
  Net Weight	0.2kg (0.45lb)
  Operating Temperature	0°C – 55°C (32°F – 131°F)
  Storage Temperature	-10°C – 75°C (14°F – 167°F)
  Humidity	10 – 80% RH (non-condensing)
  Power Requirements	5VDC 1A
  Colour	Black
  Packaging Type	Carton box
  Packaging Dimensions	220x170x60mm (8.66×6.69×2.36in)
  Gross Weight	0.8kg (1.76lb)
  Warranty	2 Years
  Certification	CE, FCC, RoHS, REACH
  Package Contents	KVM Over IP Receiver, IR Receiver, Multi-Country Power Supply (EU, UK, US, AUS), Lindy Manual
  Part Number	38265
  EAN	4002888382656
