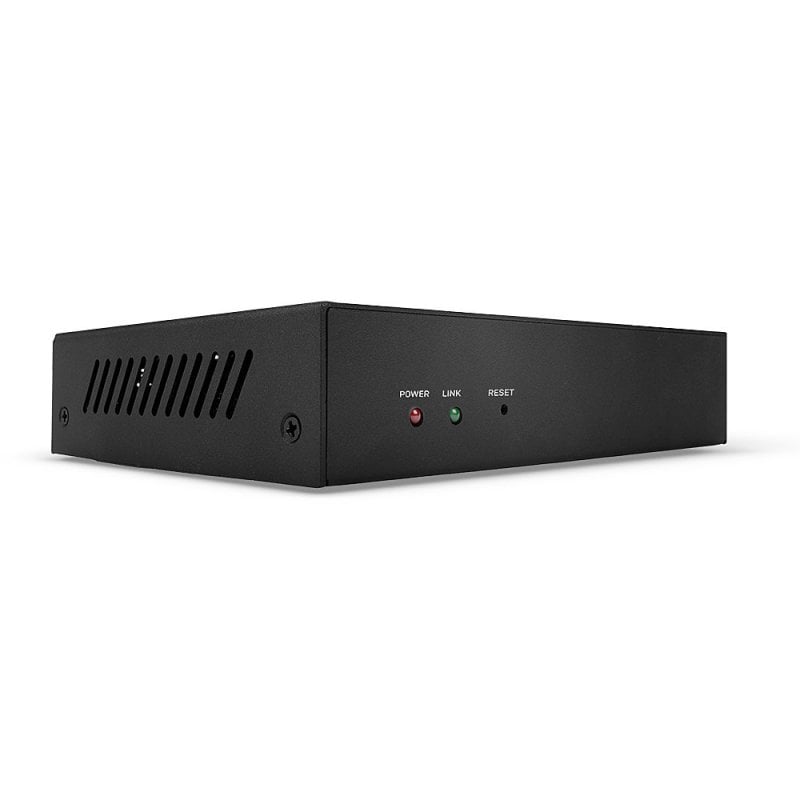

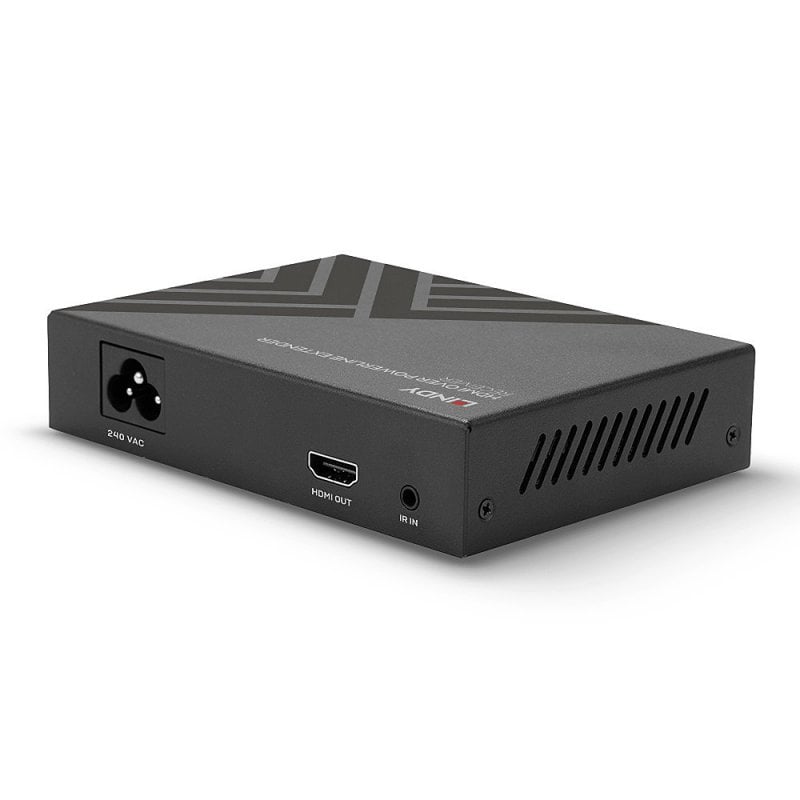

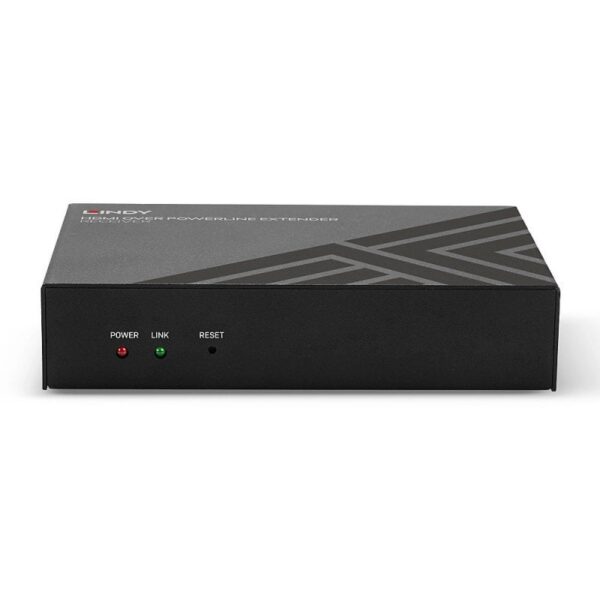

Lindy HDMI over Powerline Extender, Receiver | 38227

• Description
• Specifications
• Downloads

• Lindy HDMI over Powerline Extender, Receiver | 38227

  HDMI® over Powerline extenders provide a useful solution for extending HDMI® content to one or more displays within one electrical circuit.

  The Lindy HDMI® over Powerline Receiver is one part of a high-quality solution for extending HDMI® content from a source device to a display using a single electrical power circuit. Combined with the compatible transmitter unit, this extender provides simple, hassle-free content distribution within small office, store front or residential setups.

  Supporting resolutions up to 1920×1080@60Hz ensuring excellent Full HD quality for the user. This device is ideal for sharing video and audio content into bedrooms, home offices or small-scale digital signage using pre-existing electrical wiring.

  Up to 3 compatible receivers can be connected to a single transmitter allowing for larger scale distribution to multiple displays. A 3.5mm IR connection also allows for simple control from the display side of the setup.

• Category	Specification
  AV Interface	HDMI®
  Interface Standard	1.3
  Supported Bandwidth	6.75Gbps
  Maximum Distance	–
  Maximum Resolution	1920×1080@60Hz 4:4:4 8bit
  HDCP Support	1.4
  EDID Pass Through	Pass-through
  Supported Audio	LPCM 2CH
  IR Support	20-60kHz
  Chipset	ITE
  Special Features	Output to 3 Receivers

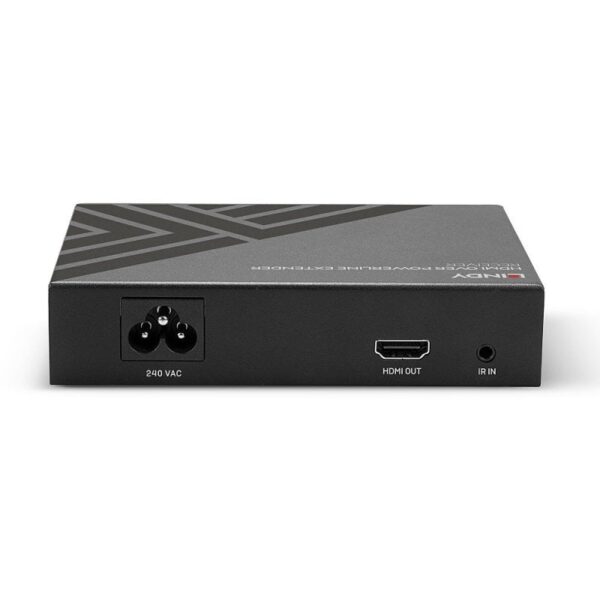

  Connectors
  Receiver Input	3.5mm IR (Female), IEC C6 (Male)
  Receiver Output	HDMI® Type A (Female)
  Power	IEC C6 (Male)
  Physical Properties
  Dimensions (WxDxH)	135x29x96.5mm (5.31×1.14×3.8in)
  Housing Material	Metal
  Net Weight	1.058kg (2.33lb)
  Operating Temperature	32°C – 104°C (90°F – 219°F)
  Storage Temperature	-4°C – 104°C (25°F – 219°F)
  Humidity	20 – 90% RH (non-condensing)
  Power Requirements	100-240 VAC
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	262x80x150mm (10.31×3.15×5.91in)
  Gross Weight	1.273kg (2.81lb)
  Warranty (Years)	2
  Certifications	CE, FCC, RoHS, REACH, California Proposition 65
  Package Contents
  Contents	HDMI® over Powerline Extender, Receiver, IR Receiver Cable, Multi-country Power Cables, Lindy Manual
  Purchasing Information
  No.	38227
  EAN	4002888382274

• Description	Downloads
  Manual	Download
