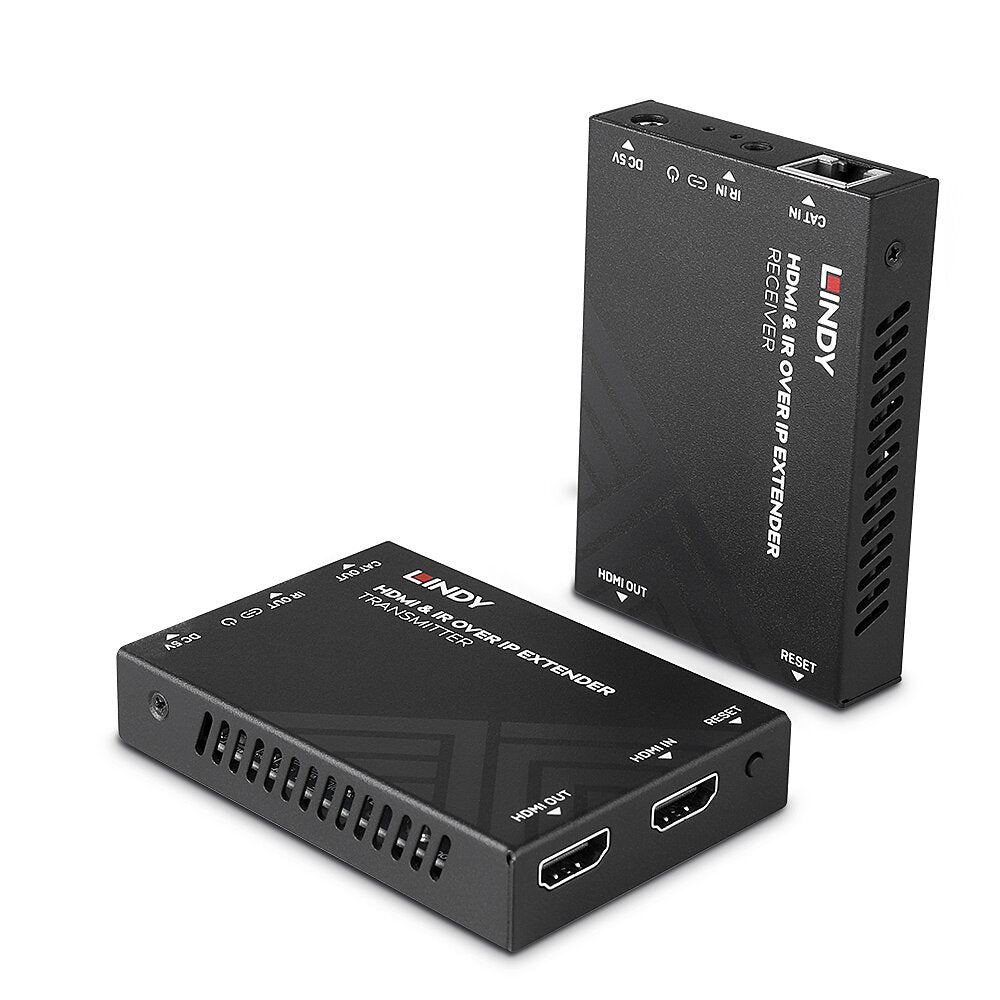

• Lindy HDMI & IR over IP Extender – 38398

  Distribute HDMI signals 1-1 or 1-many as part of a networked installation
  Supports resolutions up to 1920×1080@60Hz
  Supports IR and HDMI loop-out port on the transmitter
  Add additional receivers to the network for larger scale distribution
  2 year warranty

  IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.

  The Lindy HDMI & IR over IP extender is a complete, low cost solution for extending HDMI signals across long distances via a local network setup. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding additional receivers (38399) provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.

  Supporting resolutions up to Full HD 1920×1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. HDMI loop out port on the transmitter allows the user to connect a local display while IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.

  Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.

• Specifications
  AV Interface	HDMI
  Interface Standard	HDMI 1.3
  Supported Bandwidth	6.75 Gbps
  Maximum Distance	150m (492.12ft)
  Maximum Resolution	1920×1080@60Hz 4:4:4 8bit
  HDCP Support	1.4
  EDID Pass Through	–
  Supported Audio	2 Channel PCM
  Separate Audio Ports	–
  IR Support	20-60 kHz
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	IP (H.265 video compression)
  Transmission Medium	1 x Cat.5e/6
  Laser Class (only for Fibre)	–
  Wavelength (only for Fibre)	–
  Chipset	SSC337DE – SSD203D

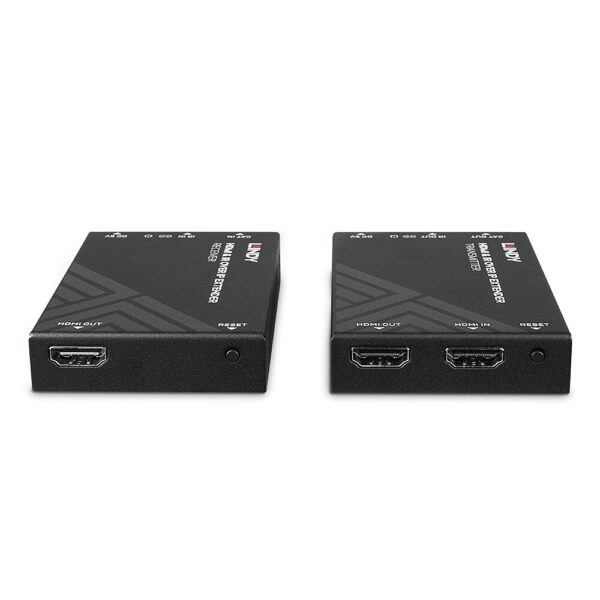

  Special Features	HDMI Loop Out port
  Connectors
  Transmitter Input	HDMI (Female)

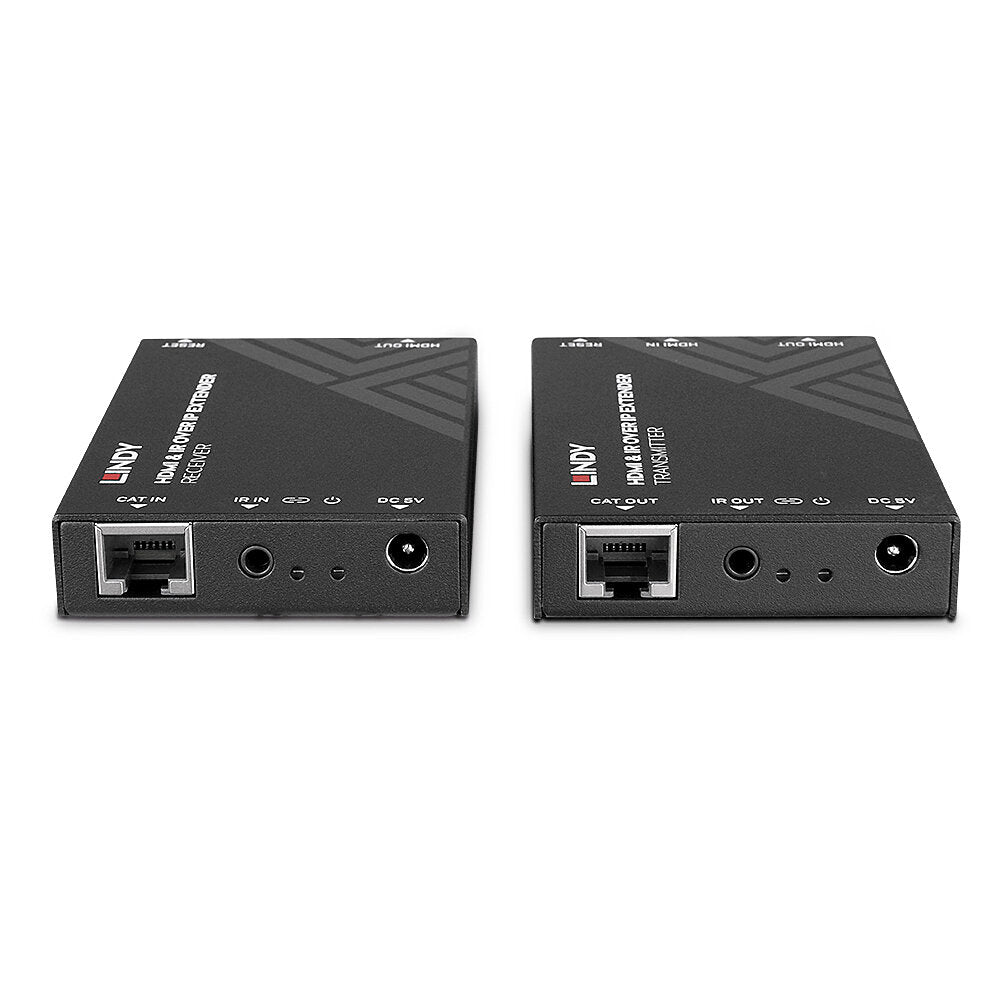

  Transmitter Output	HDMI (Female), RJ45 (Female), IR (Female)
  Receiver Input	RJ45 (Female), IR (Female)
  Receiver Output	HDMI (Female)
  Bidirectional Ports	–
  Power	5.5/2.1mm DC socket
  Physical Properties
  Dimensions (WxHxD)	88×61.2×16.5mm (3.46×2.41×0.65in) per unit
  Housing Material	Metal
  Net Weight	0.53kg (1.17lb)
  Operating Temperature	-10°C – 50°C (14°F – 122°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	20 – 90% RH (non-condensing)
  Power Requirements	5VDC 1A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	220x130x70mm (8.66×5.12×2.76in)
  Gross Weight	0.73kg (1.61lb)
  Warranty (Years)	2
  Product Compliance	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  Transmitter unit
  Receiver unit
  IR emitter cable, 1.5m
  IR receiver cable, 1.5m
  Multi-Country Power Supply (EU, UK, US & AUS)
  Lindy manual
