• Lindy HDMI 8K60 Repeater | 38384

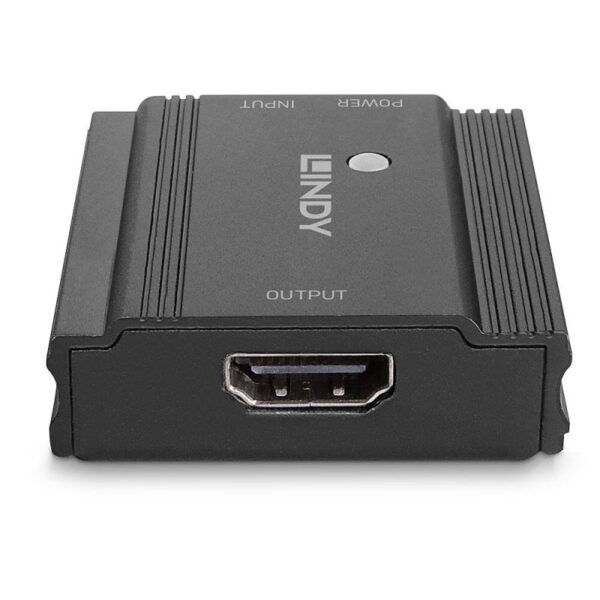

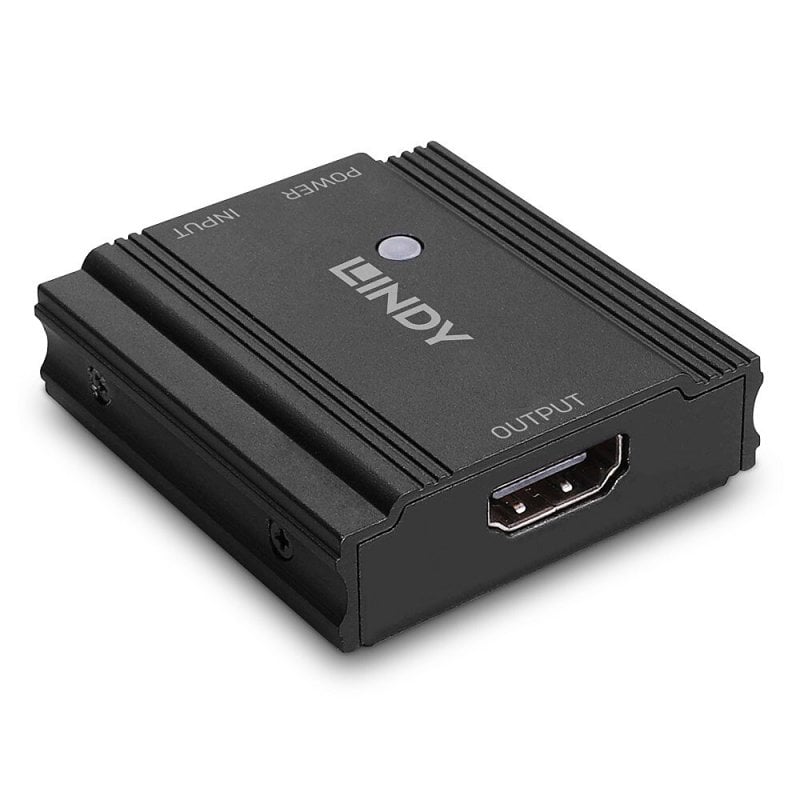

  The Lindy HDMI® 8K60 Repeater is a high end solution for extending top-quality HDMI® signals up to distances of 45m for full HD, 25m for 4K60 and 10m for 8K60 signals, while ensuring a superior reliable transmission with no degradation.

  This repeater supports a maximum resolution of 8K 60Hz for superior video quality, and with additional support for HDMI 2.1 features such as dynamic HDR, DSC, HFR, VRR, ALLM; automatic EQ (sharpness) adjustment will ensure an optimal signal clarity. HDCP pass-though also assures the user that all contents can be played on their display.

  Featuring a sleek minimalistic design, the repeater is ideal for use with professional AV/IT setups and home cinema installations that require long length transmissions in limited space environments, or for creating a more discreet installation.

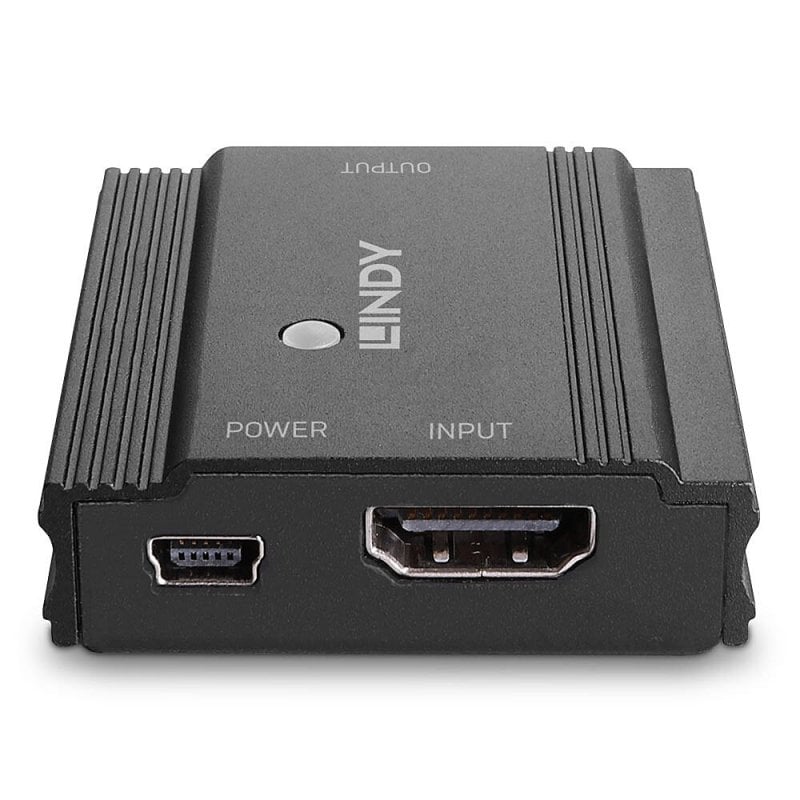

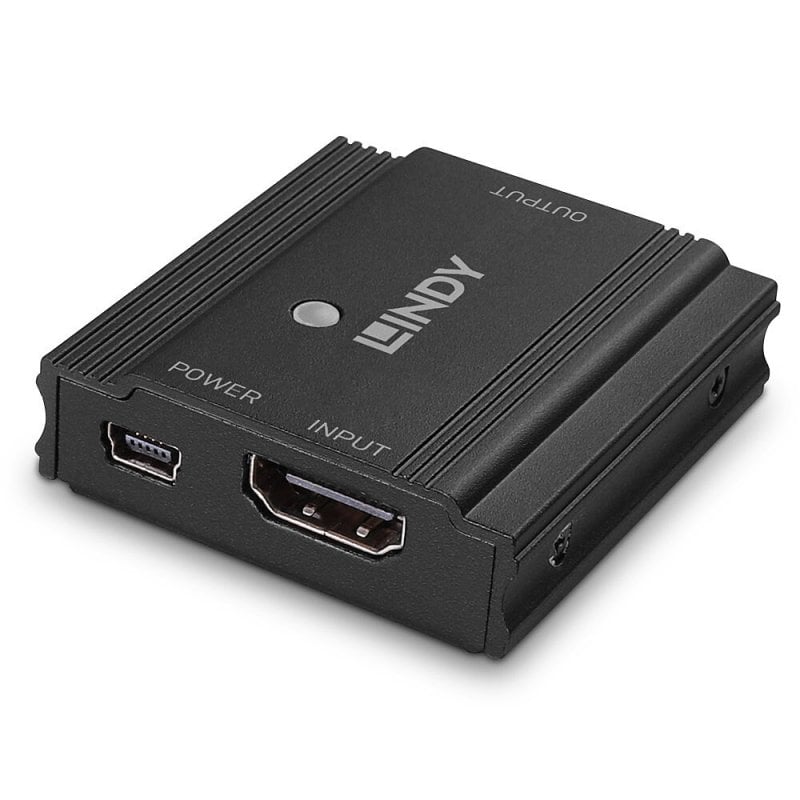

  The unit can be powered from the HDMI® source device and also via the USB Mini-B port connecting a 5V charger if needed.

• Category	Specification
  AV Interface	HDMI®
  Interface Standard	HDMI® 2.1
  Supported Bandwidth	48 Gbps
  Maximum Distance
  – 1920×1080@60Hz	45m (147.64ft), 20m In / 25m Out
  – 4K60Hz	25m (82.02ft), 10m In / 15m Out
  – 8K60Hz	10m (32.81ft), 4m In / 6m Out
  Maximum Resolution	7680×4320@60Hz 4:4:4 8bit (DSC enabled)
  HDCP Support	2.3
  Transmission Medium	2 x HDMI Cable
  Special Features	–
  Connectors
  Input	HDMI® (Female)
  Output	HDMI® (Female)
  Power	USB Mini B (Female) (optional)
  Physical Properties
  Dimensions (WxHxD)	47x60x15mm (1.85×2.36×5.47in)
  Housing Material	Metal
  Net Weight	0.11kg (0.24lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	0-80% RH (non-condensing)
  Power Requirements	1.5W
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	98x154x46mm (3.86×6.06×1.81in)
  Gross Weight	0.18kg (0.4lb)
  Warranty (Years)	2
  Product Compliance	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  Contents	HDMI® Repeater, Lindy Manual, USB Type A to Mini B cable, 1.5m (4.92ft)
  Purchasing Information
  No.	38384
  EAN	4002888383844

• Description	Downloads
  Manual	Download
