Lindy DisplayPort to VGA Active Converter | 41006

• Description
• Specifications
• Downloads

• Lindy DisplayPort to VGA Active Converter | 41006

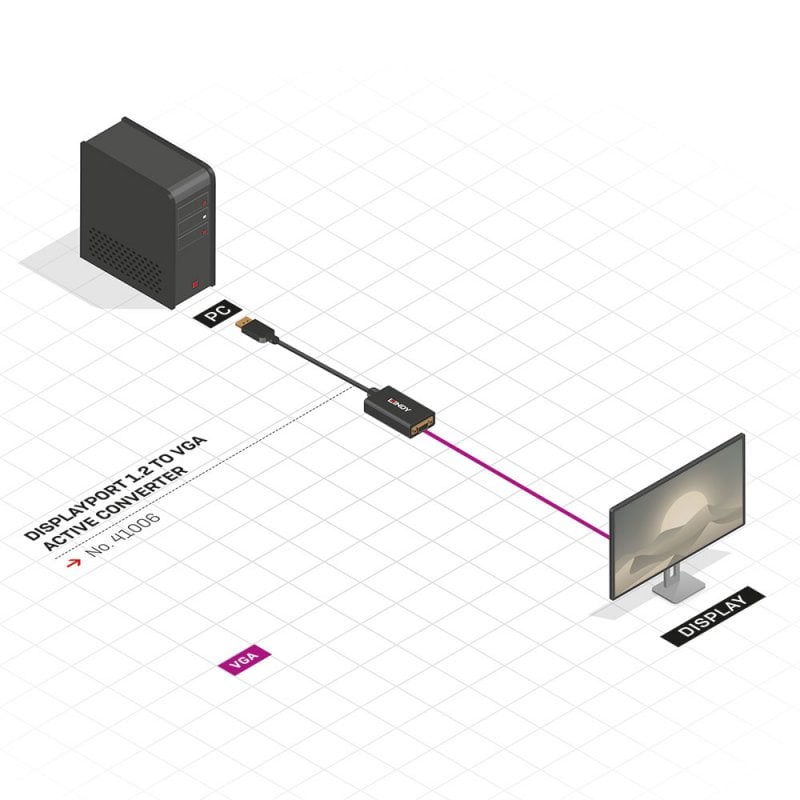

  The Lindy DisplayPort to VGA Converter is perfect for connecting a DisplayPort-equipped source, such as a PC or laptop, to a VGA monitor. It supports high-definition video resolutions up to 1920×1080@60Hz, ensuring clear and detailed visuals. Active conversion technology guarantees compatibility with a variety of graphics cards, including AMD Eyefinity, NVIDIA Surround, and Intel Collage.

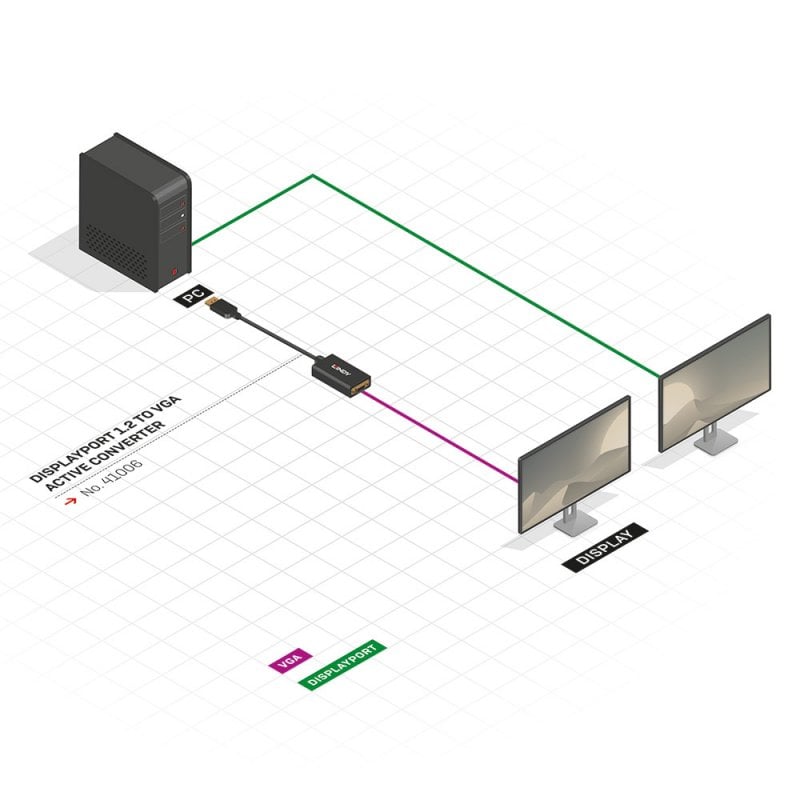

  This converter is also useful for adding a secondary monitor, supporting extended or mirrored desktop modes to enhance productivity and expand screen real estate. Enhanced reliability and compatibility are provided by internal copper shielding, making this converter a dependable choice for various applications.

  Designed for convenience, the converter’s compact and lightweight form factor makes it ideal for traveling. The plug & play installation ensures a quick and easy setup, making it an excellent accessory for both personal and professional use.

• Category	Specification
  AV Interface	DisplayPort to VGA
  Interface Standard	DisplayPort 1.2, VGA
  Supported Bandwidth	10.8Gbps
  Maximum Input Resolution	1920×1080@60Hz
  Maximum Output Resolution	1920×1080@60Hz
  Chipset	ANX9833
  HDCP Support	–
  Supported Audio	–
  Separate Audio Ports	–
  Special Features	–
  Connectors
  Input	DisplayPort Male
  Output	VGA Female
  Physical Properties
  Dimensions (approx.) WxDxH	38x61x17mm (1.5×2.4×0.67in)
  	20x36x11mm (0.79×1.42×0.43in)/DP
  Cable Length	150mm (5.91in)
  Housing Material	TPE
  Jacket Material	PVC
  Jacket Diameter	6.5mm (0.26in)
  Minimum Bend Radius	70mm (2.76in)
  Net Weight	0.045kg (0.1lb)
  Operating Temperature	-20°C to 80°C (-4°F to 176°F)
  Storage Temperature	-20°C to 70°C (-4°F to 158°F)
  Humidity	20 – 90% RH (non-condensing)
  Colour	Black
  Miscellaneous
  Packaging Type	Polybag
  Packaging Dimensions	160x160x20mm (6.3×6.3×0.79in)
  Gross Weight	0.049kg (0.011lb)
  Warranty	2 Years
  Certified	CE, UKCA, FCC, RoHS & REACH
  Package Contents	DisplayPort 1.2 to VGA Active Converter
  Purchasing Information
  Product No.	41006
  EAN	4002888410069
