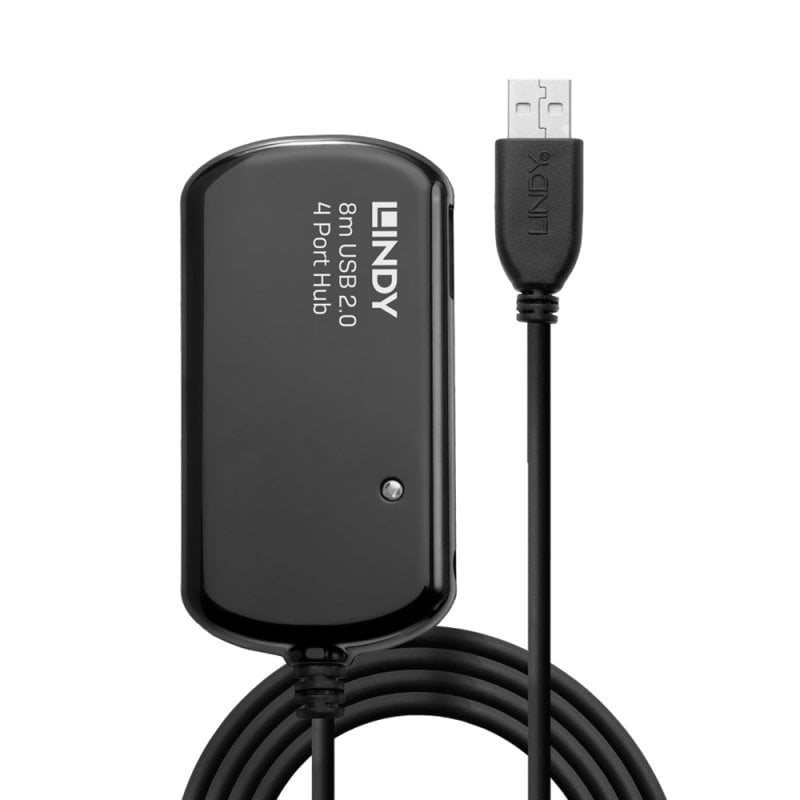

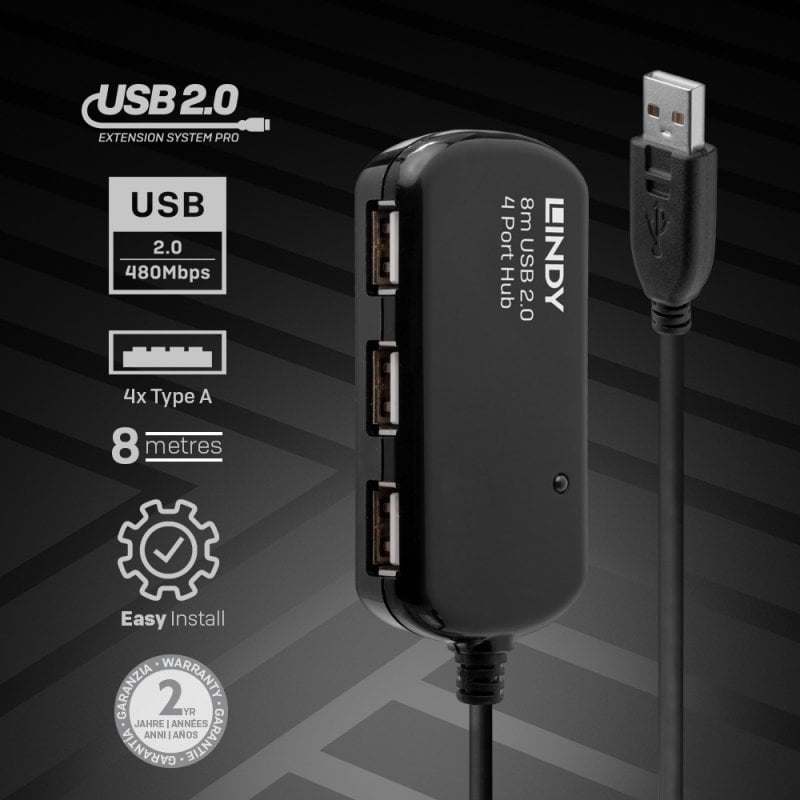

Lindy 8m USB 2.0 Active Extension Pro 4 Port Hub | 42781
The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension hub is perfect for transferring data volumes quickly and reliably.
This 8m extension hub can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
-
Category Specification Connectors Connector A USB Type A Male Connector B 4 x USB Type A Female Power Connector 3.5/1.35mm DC Housing Material Plastic Connector Plating Front: Gold / Back: Nickel Pin Construction Brass Pin Plating Gold Flash Dimensions USB A Male 15x43x8mm (0.59×1.69×0.31in) Hub 80x40x16mm (3.15×1.57×0.63in) Cable Construction Length 8m (26.25ft) Standard USB 2.0 Colour Black Type Round Jacket Diameter 5mm +/-0.15mm (0.2in +/- 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 26/20AWG Shielding AL Mylar and braid Specifications Supported Bandwidth 480 Mbps Nominal Attenuation See detailed frequency specific attenuation values Minimum Bend Radius 26mm (1.02in) Operating Temperature 0°C – 50°C (32°F – 122°F) Storage Temperature -20°C – 60°C (-4°F – 140°F) Transmission Medium Twisted Pair Transmission Technology USB 2.0 Miscellaneous Packaging Type Carton Box Packaging Dimensions 238x202x66mm (9.37×7.95×2.6in) Net Weight 0.331kg (0.73lb) Gross Weight 0.654kg (1.44lb) Warranty 2 years Certifications CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents Included USB 2.0 Hub, Multi-Country PSU, Lindy Manual Purchasing Information Item Number 42781 EAN 4002888427814 Additional Lengths 42783 – 12m (39.37ft) with hub
