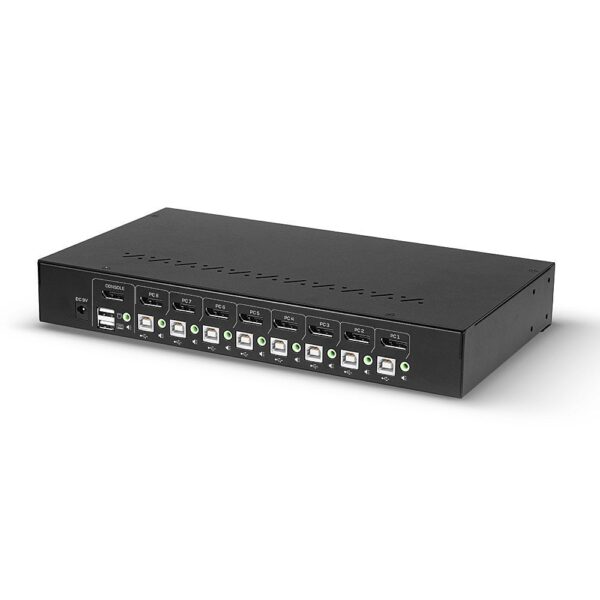

• Lindy 8 Port DisplayPort 1.2, USB 2.0 & Audio KVM Switch | 39540

  A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

  This advanced KVM Switch has been designed for use with PCs and Macs. It features DisplayPort video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.

  The switch occupies only a single 1U space in a 19” rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.

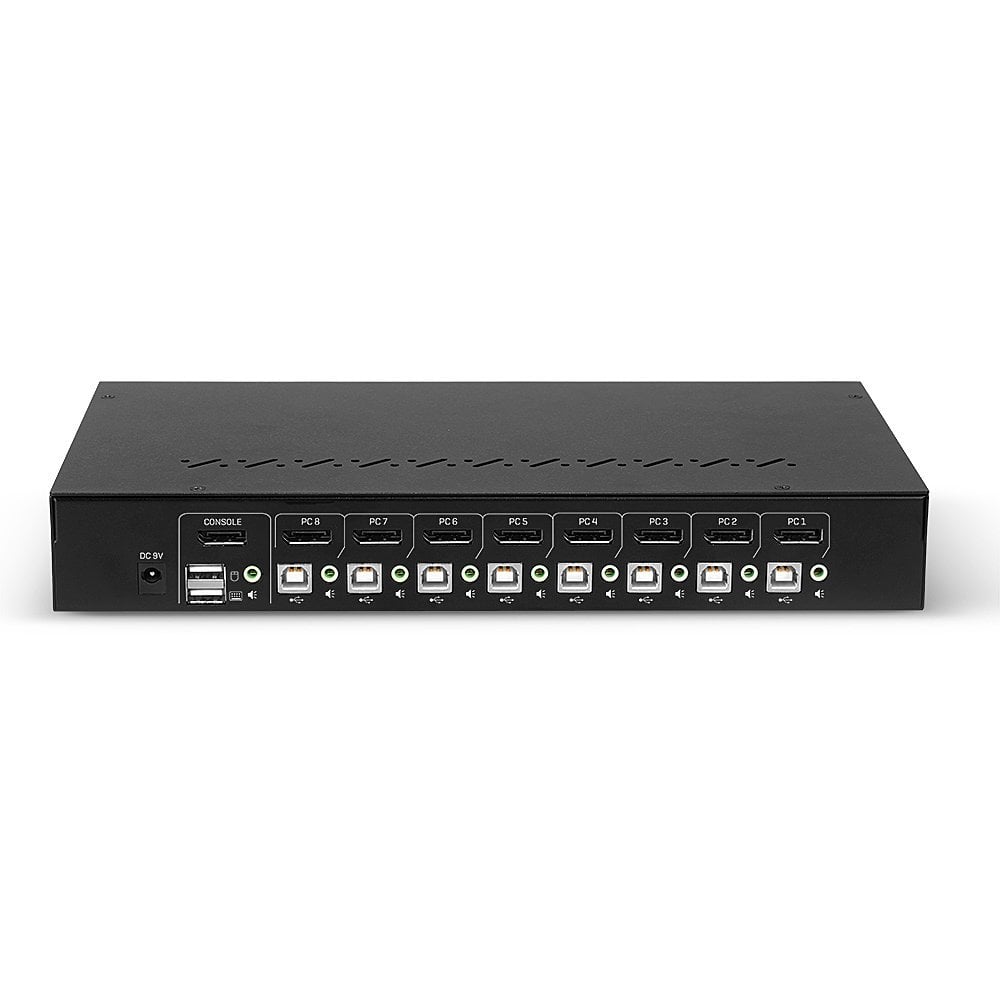

  A local console can be connected to the 2 USB and DP ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.

  LED indicators show the status of the selected channel.

• Category	Details
  Specifications
  AV Interface	DisplayPort
  Console Interfaces	USB
  Interface Standard	DisplayPort 1.2, USB 2.0
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	1.4
  Supported Audio	Analogue Stereo
  Separate Audio Ports	3.5mm (Female)
  Serial Interface	–
  Console Number	1
  Max Number PC/Server	8
  Cascadable	No
  Switching Method	Port buttons, Hotkey (configurable)
  19″ Rack Mountable	Yes (1U – Rack Mount Brackets included)
  Connectors
  Console Interfaces	DisplayPort (Female), 2 x USB Type A HID (Female), 3.5mm (Female)
  PC/Server Interfaces	8 x DisplayPort (Female), 8 x USB 2.0 Type B (Female), 8 x 3.5mm (Female)
  Other Interfaces	2 x USB 2.0 Type A (Female) shared ports (front panel)
  Power	5.5/2.1mm DC
  Physical Properties
  Dimensions WxDxH	300x164x44mm (11.81×6.46×1.73in)
  Housing Material	Metal
  Net Weight	1.53kg (3.37lb)
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	5~90% RH (non-condensing)
  Power Requirements	9VDC 2A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton box
  Packaging Dimensions	566x104x245mm (22.28×4.09×9.65in)
  Gross Weight	2.496kg (5.50lb)
  Warranty (Years)	2
  Certificated	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  Included Items	KVM Switch 2 x 19″ Rack Mount Bracket with Screws Multi-Country PSU (UK, EU, US & AUS) Lindy Manual
  Purchasing Information
  No.	39540
  EAN	4002888395403
