• Lindy 70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender | 38346

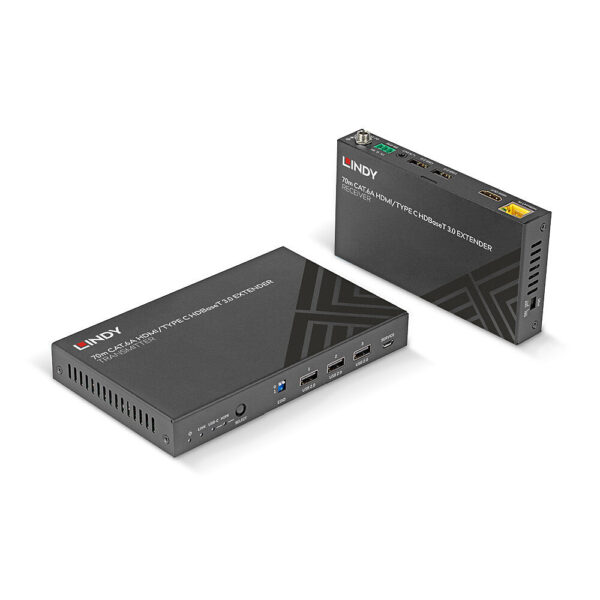

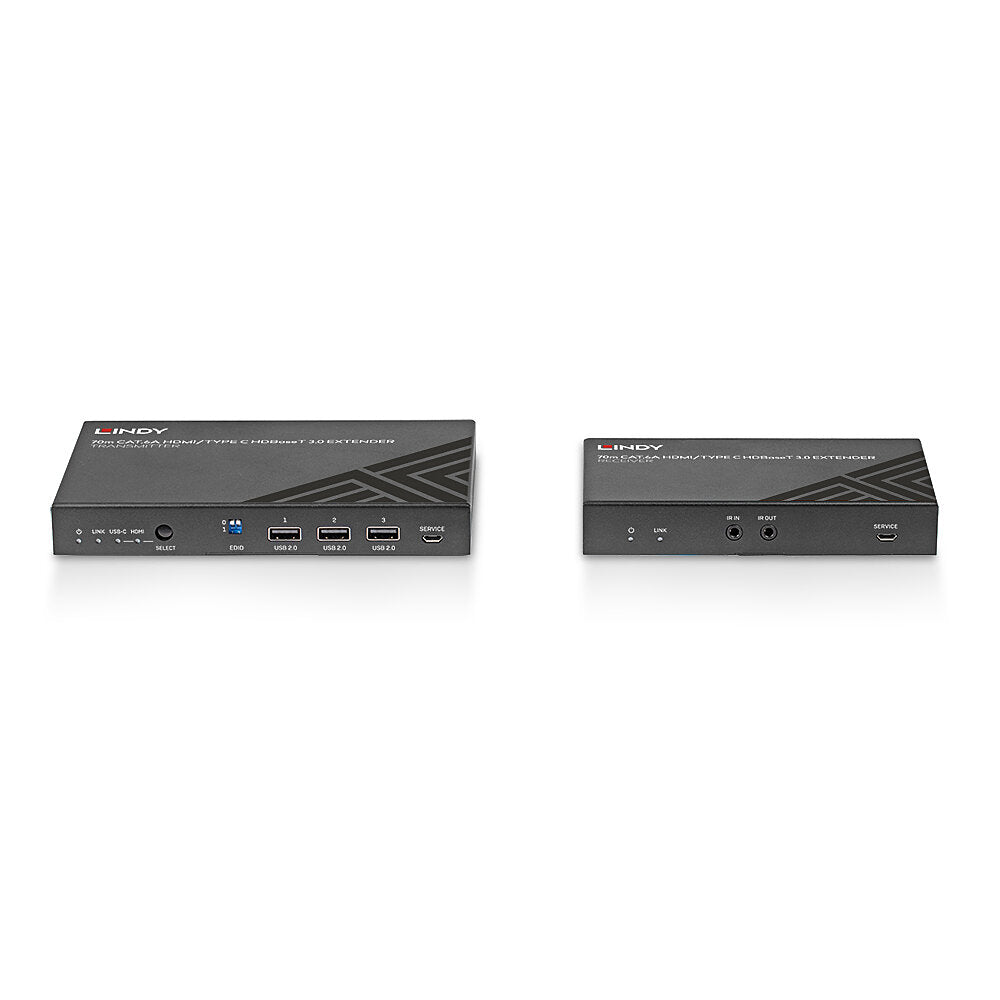

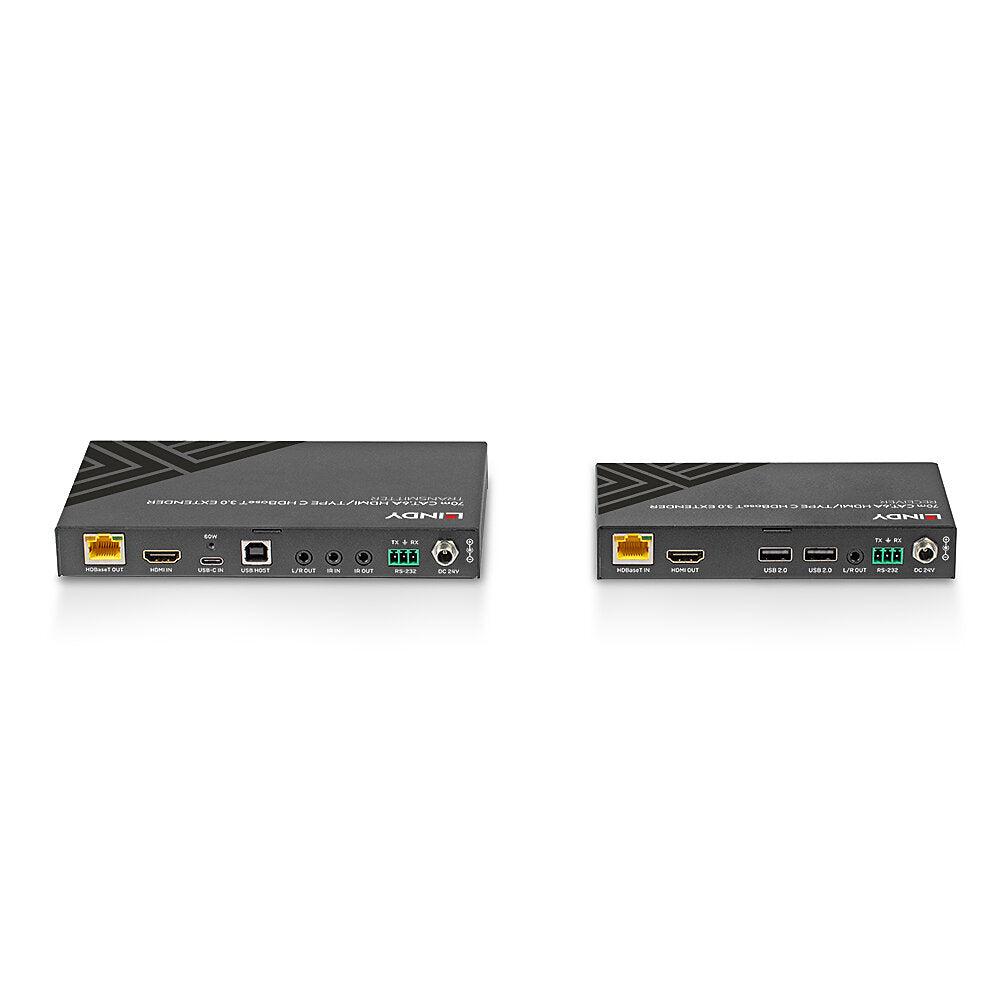

  The Lindy Cat.6A HDMI® 4K60 & Type C HDBaseT 3.0 KVM Extender is a high performance, reliable solution for extending AV and data signals over long distances via Cat.6A network cable.
  The following distance and resolution combinations are possible when using high quality Cat.6A or above U/UTP or F/UTP cable:

  40m: 3840×2160@60Hz 4:4:4 8bit / 4:2:2 12bit

  70m: 3840×2160@30Hz 4:4:4 8bit / 4:2:2 12bit

  Supporting uncompressed resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. 4K to 1080p downscaling function is also supported on HDMI output.

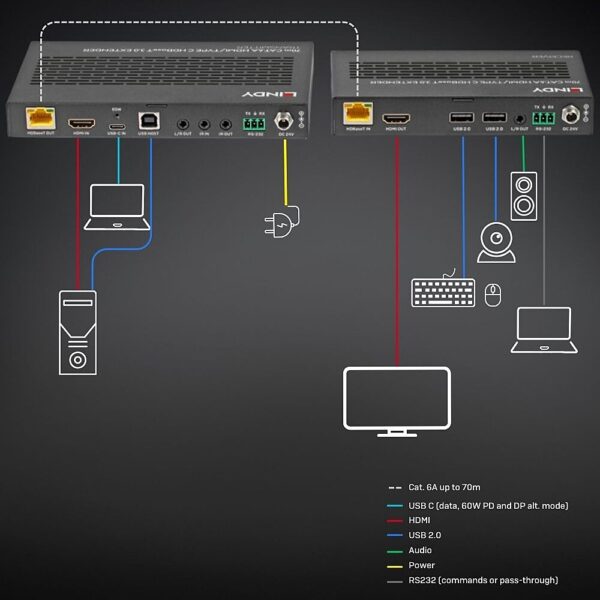

  The user can connect a Type C or HDMI® (with USB) input port in order to control any source such as a PC or Laptop, the Type C port supports also 60W power delivery provided directly from the Transmitter just connecting the included power supply. Switching between the 2 inputs is possible pushing the button on the transmitter unit, auto switch feature is also supported.


  PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6A network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

  Featuring 3.5mm Analog Audio outputs with de-embedding function to connect speakers or amplifier on both units, EDID DIP switch with presets and copy function on the transmitter.

  Bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extennder allows for complete control for the user providing APIs over RS-232 or USB Micro B ports.

  HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

  HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

  Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6A or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.

• Category	Details
  AV Interface	HDMI®, Type C
  Interface Standard	HDMI® 2.0, USB 2.0
  Supported Bandwidth	HDMI® 18Gbps
  Maximum Distance	40m at 3840×2160@60Hz 4:4:4 8bit, 70m at 3840×2160@30Hz 4:4:4 8bit / 4:2:2 12bit
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	2.3
  EDID Pass Through	Dip-switch with presets and copy function
  Supported Audio	Pass Through
  Separate Audio Ports	3.5mm
  IR Support	20 – 60KHz
  CEC Support	Pass Through
  Serial Interface	RS-232 Pass Through
  Transmission Protocol	HDBaseT 3.0
  Transmission Medium	Cat.6A
  Special Features	APIs, 60W PD on Type C port, Bi-directional IR, PoC, Audio de-embedded, 4K to 1080p downscaling
  Connectors	Transmitter Input: HDMI® Type A (Female), USB Type C (Female), USB Type B (Female), 3.5mm IR (Female)
  	Transmitter Output: RJ-45 (Female), 3.5mm IR (Female), 3.5mm Audio (Female), 3x USB Type A (Female)
  	Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  	Receiver Output: HDMI® Type A (Female), 3.5mm IR (Female), 3.5mm Audio (Female), 2x USB Type A (Female)
  	Control Ports: USB Micro B (Female), RS-232 3-Pin Terminal Block
  	Power: 5.5/2.1mm DC socket
  Physical Properties	Dimensions: Tx: 170x102x22mm, Rx: 144x78x23mm
  	Housing Material: Metal
  	Net Weight: 1.9Kg
  	Operating Temperature: 0°C – 40°C
  	Storage Temperature: -20°C – 60°C
  	Humidity: 20 – 90% RH (non-condensing)
  	Power Requirements: 24VDC 3.75A
  	Colour: Black
  Miscellaneous	Packaging Type: Carton Box
  	Packaging Dimensions: 290x75x220mm
  	Gross Weight: 2.18Kg
  	Warranty: 2 Years
  	Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	Transmitter, Receiver, Multi-country Power Supply, IR Emitter/Receiver Cables, Mounting Ears & Screws, Manual
  Purchasing Information	No.: 38346
  	EAN: 4002888383462
