• Lindy 70m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT UK Wall Plate Extender, Transmitter | 38347

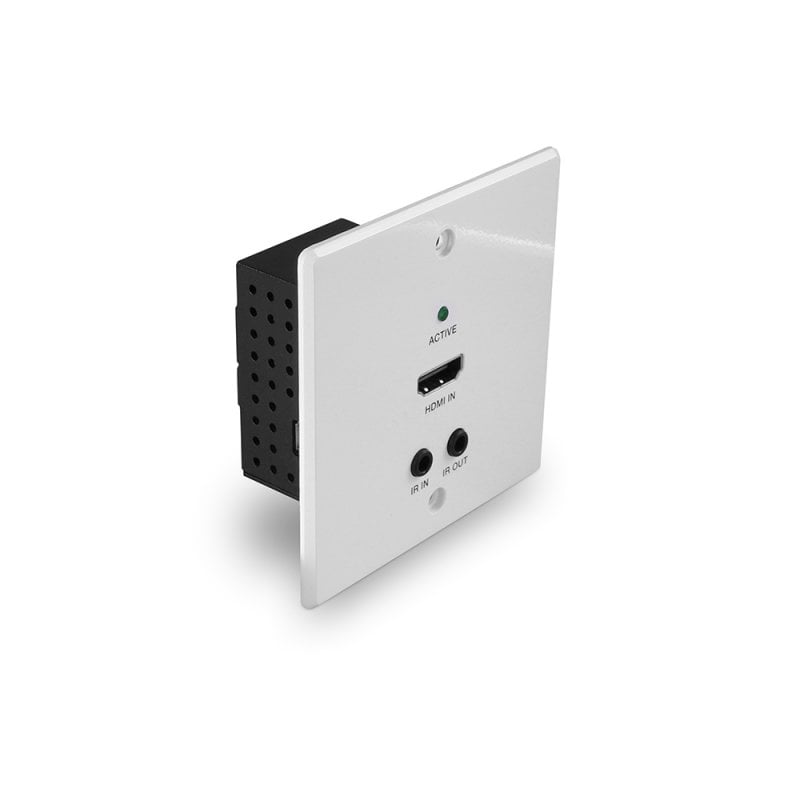

  The Lindy Cat.6 HDBaseT HDMI® 4K60 Wall Plate Transmitter is one part of a high performance, reliable solution for extending HDMI® signals over long distances via Cat.6 network cable.

  By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.

  The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:

  70m: 1920×1080@60Hz 4:4:4 8bit
  40m: 3840×2160@60Hz 4:4:4 8bit / 4:2:2 12bit

  Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

  PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

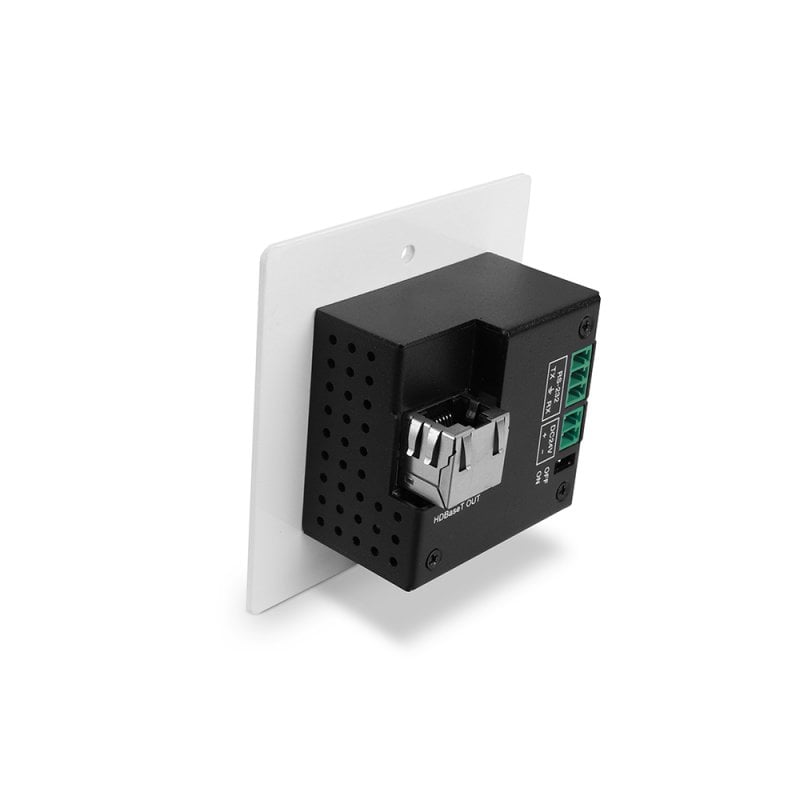

  Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI® source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.

  HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

  HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

  Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.

• Specification Category	Specification Details
  AV Interface	HDMI®
  Interface Standard	HDMI® 2.0
  Supported Bandwidth	18Gbps
  Maximum Distance	40m (4K) / 70m (1080p)
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	2.2
  EDID Pass Through	Yes
  Supported Audio	Pass Through
  IR Support	20 – 60KHz
  Serial Interface	RS-232 Pass Through
  Transmission Protocol	HDBaseT
  Transmission Medium	Cat.6
  Chipset	VS010
  Special Features	Bi-directional IR, PoC
  Connectors	HDMI®, RJ-45, 3.5mm IR
  Physical Properties	86×38.05x86mm, Metal
  Net Weight	0.39kg
  Operating Temperature	0°C – 40°C
  Storage Temperature	-20°C – 60°C
  Humidity	20 – 90% RH
  Power Requirements	24VDC 1A
  Color	White plate
  Packaging Type	Carton Box
  Packaging Dimensions	152x95x133mm
  Gross Weight	0.54kg
  Warranty	2 Years
  Product Compliance	CE, UKCA, FCC, RoHS
  Package Contents	HDMI® Transmitter, Power Supply, IR Cables, Terminal Blocks, Manual
  Purchasing Info	No.: 38347, EAN: 4002888383479
