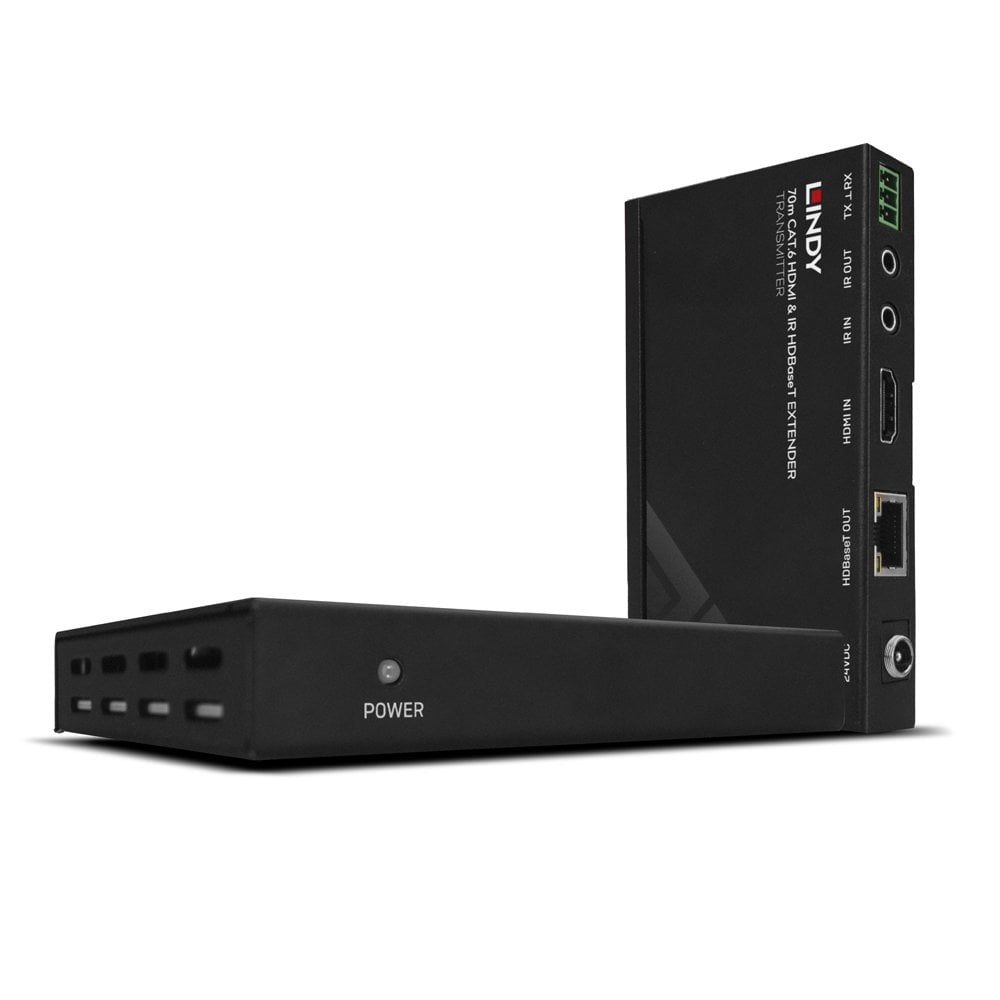

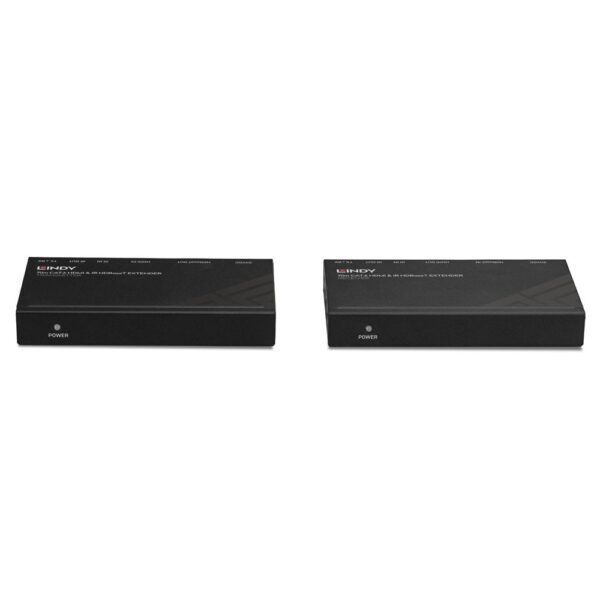

• Lindy 70m Cat.6 HDMI 4K30, IR & RS-232 HDBaseT Extender with PoC – 38139

  Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology
  Supports HDMI 10.2G resolutions up to 4K@30Hz 4:4:4
  CEC pass-through and bi-directional IR for simple control
  Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
  2 year warranty

  The Lindy 70m Cat.6 HDMI & IR HDBaseT Extender with PoC is an end to end solution for extending HDMI signals over long distances via Cat.6 network cable.

  The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:

  70m: 1920×1080@60Hz 4:4:4 8bit
  40m: 3840×2160@60Hz 4:2:0 8bit / 30Hz 4:4:4 8bit
  Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, providing a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

  PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

  Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. RS-232 pass-through also allows for integration into larger control systems.

  In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

  HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

  HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

• Specifications	Details
  AV Interface	HDMI
  Interface Standard	HDMI 1.4
  Supported Bandwidth	10.2 Gbps
  Maximum Distance	70m (229.66ft)
  Maximum Resolution	3840×2160@30Hz 4:4:4 8bit
  HDCP Support	Pass-through
  EDID Pass Through	Pass-through
  Supported Audio	Pass-through
  Separate Audio Ports	–
  IR Support	20-60kHz
  CEC Support	–
  Serial Interface	RS-232
  Transmission Protocol	HDBaseT
  Transmission Medium	1 x Cat.5e/6
  Chipset	VS010
  Special Features	PoC (Power over Cat.6)

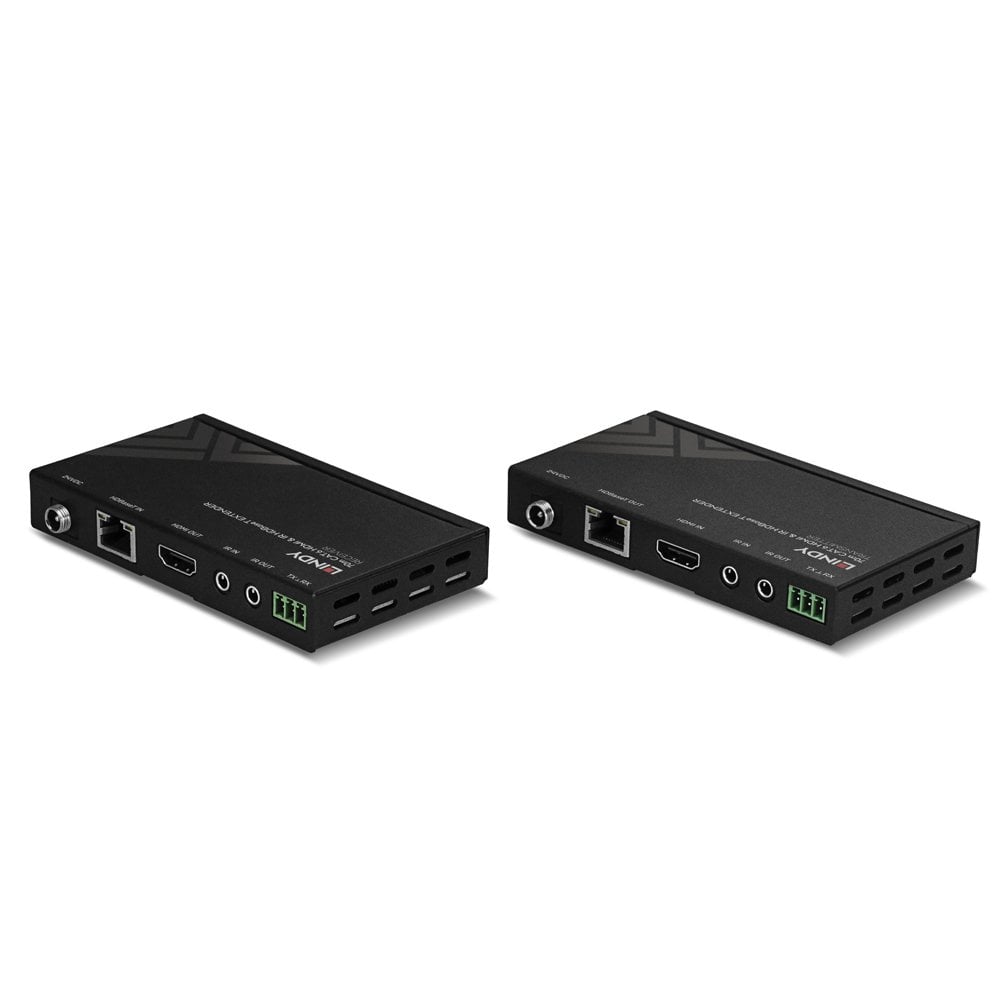

  Connectors
  Transmitter Input	HDMI (Female), IR (Female)
  Transmitter Output	RJ45 (Female), IR (Female)
  Receiver Input	RJ45 (Female), IR (Female)
  Receiver Output	HDMI (Female), IR (Female)
  Bidirectional Ports	RS-232
  Power	5.5/2.1mm DC socket
  Physical Properties
  Dimensions (WxDxH)	65x115x17mm (2.56×4.53×0.67in) per unit
  Housing Material	Metal
  Net Weight	0.2kg (0.44lb) per unit
  Operating Temperature	0°C – 40°C (32°F – 104°F)
  Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  Humidity	20-90% RH (non-condensing)
  Power Requirements	24VDC 1A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	193x191x69mm (7.6×7.52×2.72in)
  Gross Weight	0.84kg (1.85lb)
  Warranty (Years)	2
  Certified	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents
  Transmitter unit
  Receiver unit
  IR emitter cable	2
  IR receiver cable	2
  Mounting kit
  Multi-Country Power Supply	EU, UK, US & AUS
  Lindy manual
  Purchasing Information
  No.	38139
  EAN	4002888381390
