• Lindy 70m Cat.6 DVI-D Single Link Extender – 38300

  Extends DVI-D Single Link Signals up to 70m using a single Cat.6 Cable
  Supports resolutions up to 1920×1200@60Hz
  Minimalist, compact design
  Optional external DC power connection
  2 year warranty

  Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions.

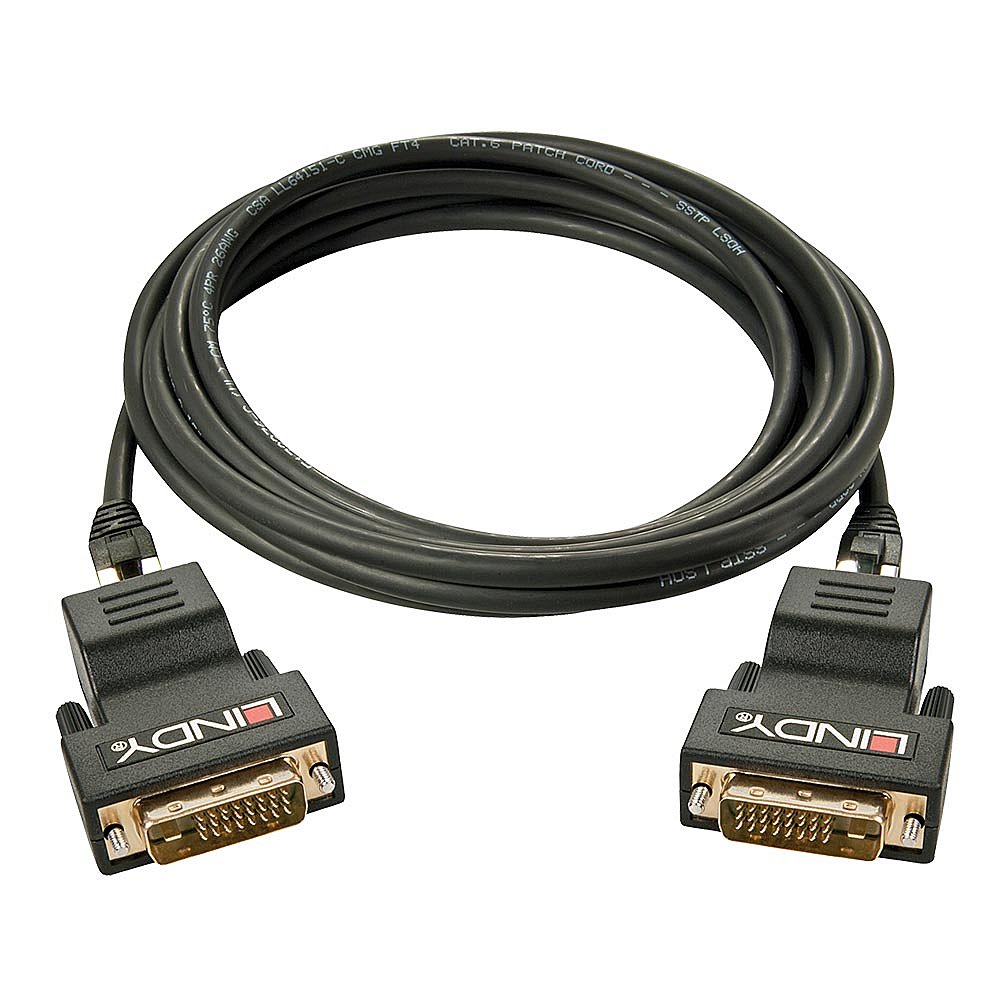

  The Lindy 70m Cat.6 DVI-D Single Link Extender is a simple to use plug and play solution which lets the user extend DVI-D signals up to 70m using a single low cost Cat.6 U/UTP cable (not included).

  Supporting resolutions up to Full HD 1920×1200@60Hz, video content can be seen with incredible clarity and transmitted at distances up to 70m, perfect for use in a variety of AV and IT distribution applications in a range of settings including workplaces, lecture halls and meeting rooms.

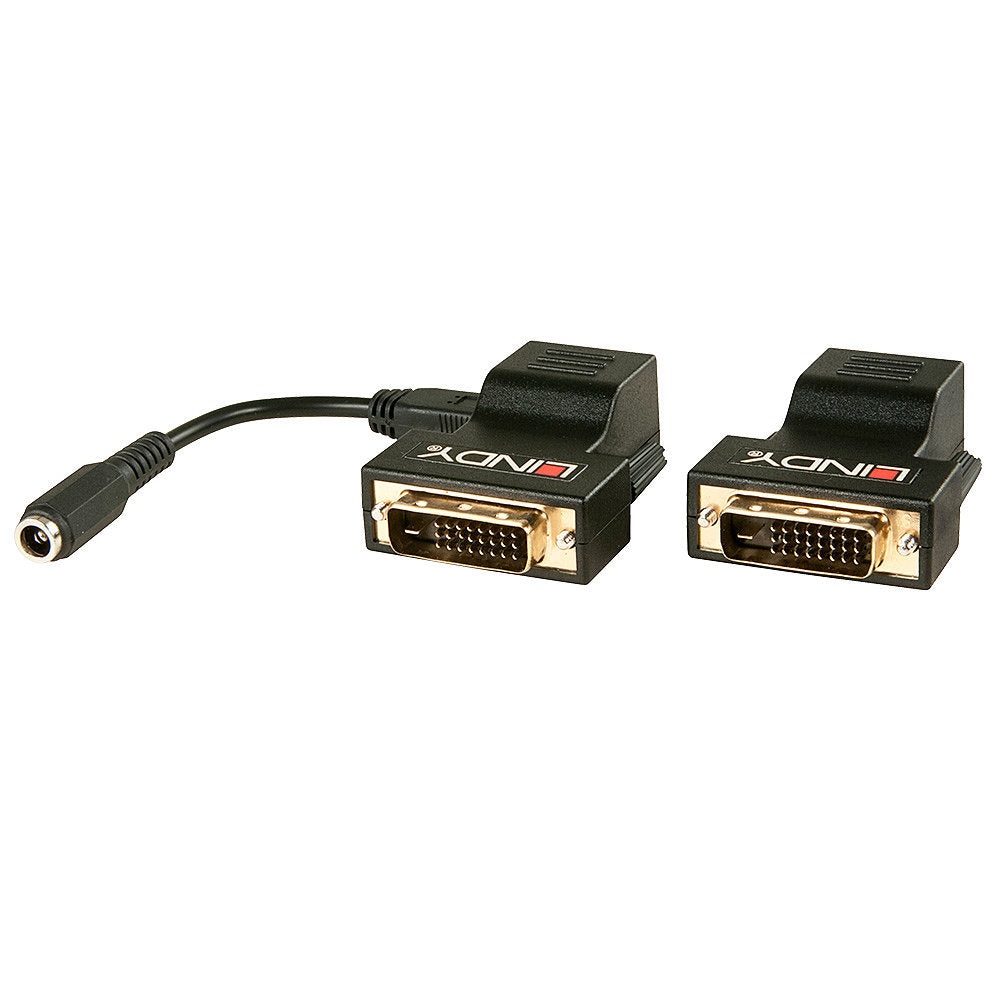

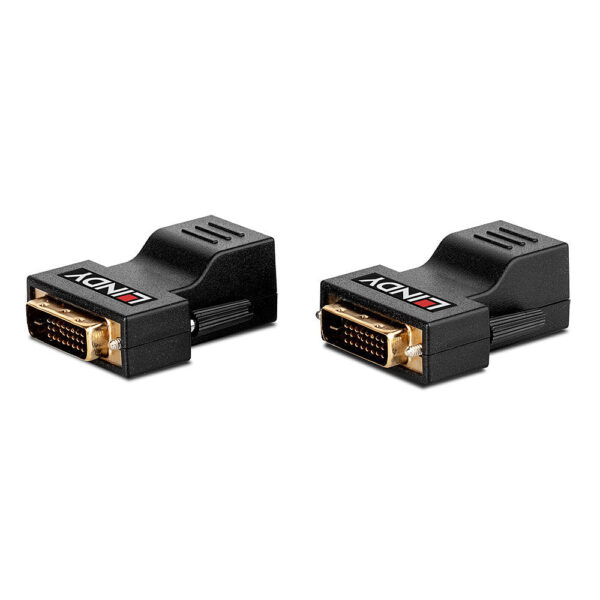

  The extender comprises of small, minimalist transmitter and receiver units which can be directly connected to the source or display device, providing a more flexible and discreet installation. An optional USB to DC adapter is also provided for when the graphics card connected does not provide sufficient power.

• Specifications
  AV Interface	DVI-D
  Interface Standard	DVI-D 1.1 (Single Link)
  Supported Bandwidth	4.95 Gbps
  Maximum Distance
  	70m (229.66ft) – 800×600@60Hz
  	50m (164.04ft) – 1920×1200@60Hz
  Maximum Resolution	1920×1200@60Hz
  HDCP Support	–
  EDID Pass Through	–
  Supported Audio	–
  Separate Audio Ports	–
  IR Support	–
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	–
  Transmission Medium	1 x Cat.5e or Cat.6
  Laser Class (only for Fibre)	–
  Wavelength (only for Fibre)	–
  Chipset	–
  Special Features	–

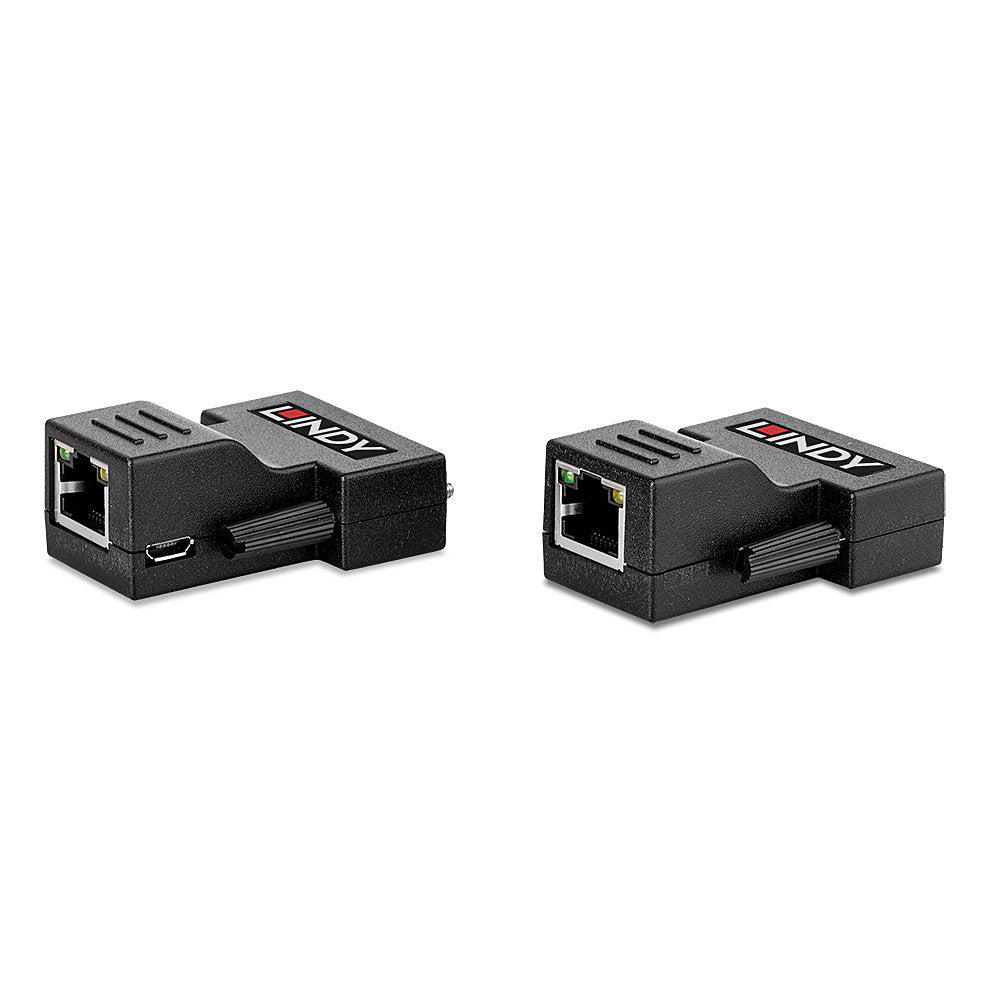

  Connectors
  Transmitter Input	DVI-D (Male)
  Transmitter Output	RJ45 (Female)
  Receiver Input	RJ45 (Female)
  Receiver Output	DVI-D (Male)
  Bidirectional Ports	–
  Power	USB Micro-B socket
  Physical Properties
  Dimensions WxDxH	55x40x22mm (2.17×1.57×0.87in) per unit
  Housing Material	Metal
  Net Weight	0.03kg (0.07lb) per unit
  Operating Temperature	0°C – 55°C (32°F – 131°F)
  Storage Temperature	-20°C – 85°C (-4°F – 185°F)
  Humidity	0 – 95% RH (non-condensing)
  Power Requirements	5VDC <320mA (TX)
  Color	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	110x165x42mm (4.33×6.5×1.65in)
  Gross Weight	0.14kg (0.31lb)
  Warranty (Years)	2
  Certifications	CE, FCC, RoHS & REACH
  Package Contents
  Transmitter unit
  Receiver unit
  Multi-Country Power Supply	EU, UK, US & AUS
  Lindy manual
  Purchasing Information
  No.	38300
  EAN	4002888383004
