Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender | 38262

• Description
• Specifications
• Downloads

• Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender | 38262

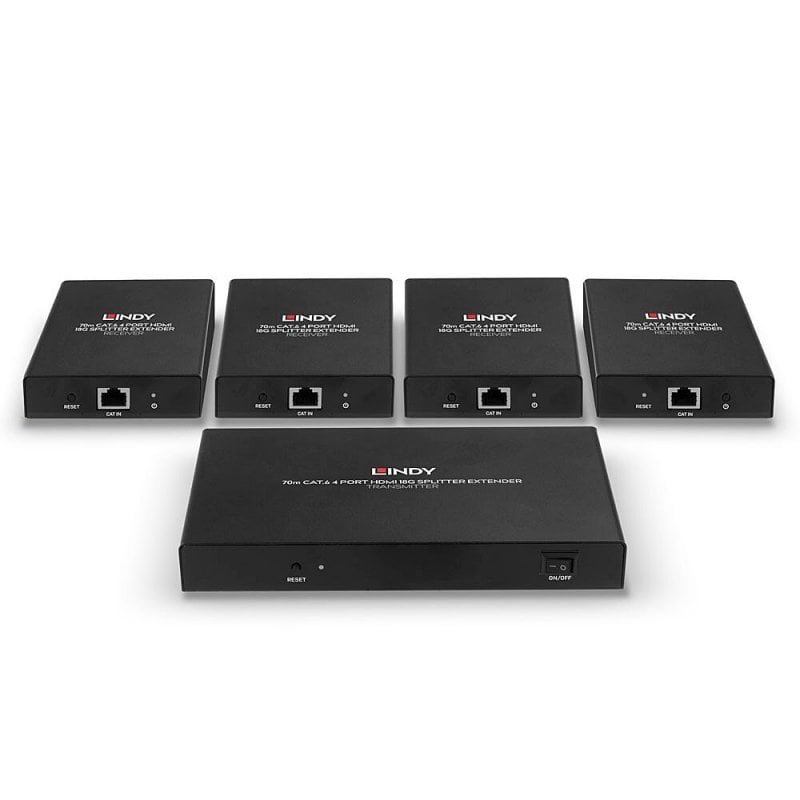

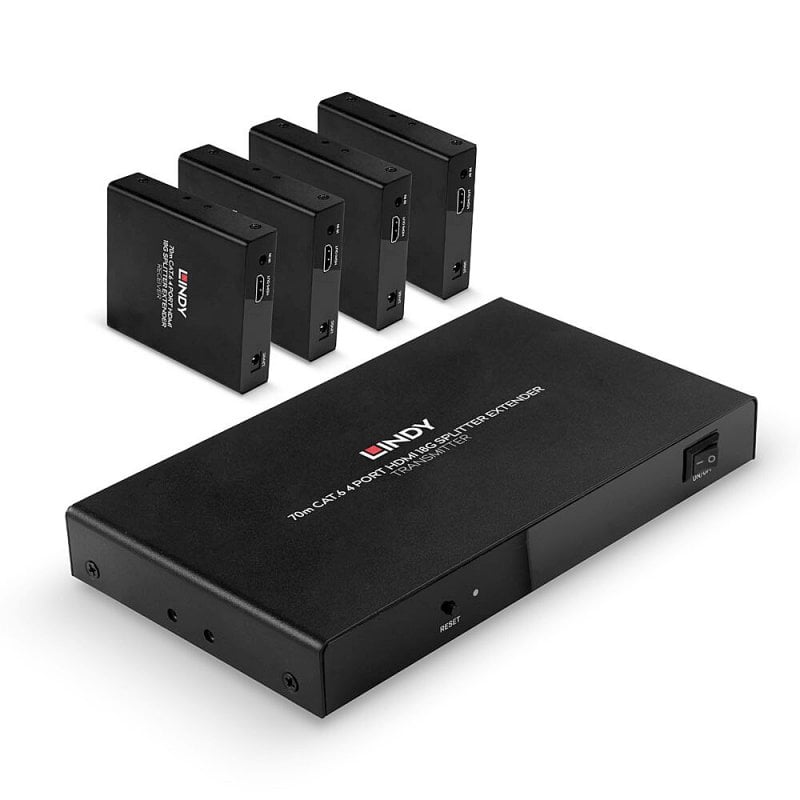

  The Lindy 70m Cat.6 4 Port HDMI® 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI® signals to multiple displays using standard Cat.6 network cables.

  Scalable Content Distribution
  This Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI® output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution.

  Immersive 4K and HDR Support
  With support for resolutions up to 3840×2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.


  Seamless IR Control
  The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.

  Simultaneous PoC Distribution
  The Cat.6 HDMI® 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.

  Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

• Category	Details
  AV Interface	HDMI®
  Interface Standard	HDMI® 2.0
  Supported Bandwidth	18Gbps
  Maximum Distance	70m (229.66ft)
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	2.2
  EDID Management	Default 4K60, downscale to Full HD, copy from loop-out port
  Supported Audio	LPCM 2CH, up to 5.1 copying EDID from loop out port
  IR Support	20-60KHz
  Transmission Medium	1 x Cat.6
  Chipset	GSV2006 & GSV5100
  Special Features	PoC (Power over Cable)
  Connectors	Transmitter Input: HDMI® Type A (Female)
  	Transmitter Output: 4 x RJ-45 (Female), HDMI® Type A (Female), 3.5mm IR (Female)
  	Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  	Receiver Output: HDMI® Type A (Female)
  Physical Dimensions	Transmitter: 180x103x23mm (7.09×4.06×0.91in), Receiver: 100x88x23mm (3.94×3.46×0.91in)
  Housing Material	Metal
  Net Weight	Transmitter: 0.39kg (0.86lb), Receiver: 0.199kg (0.44lb)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-10°C – 80°C (14°F – 176°F)
  Humidity	5 – 90% RH (non-condensing)
  Power Requirements	12VDC 2A
  Colour	Black
  Packaging Type	Carton Box
  Packaging Dimensions	423x60x354mm (16.65×2.36×13.94in)
  Gross Weight	2kg (4.41lb)
  Warranty	2 Years
  Certifications	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	70m Cat.6 4 Port HDMI® 18G Splitter Extender
  	4 x Cat.6 HDMI® 18G Receivers
  	IR Emitter Cable, 1.2m
  	4 x IR Receiver Cable, 1.2m
  	2 x Transmitter Mounting Brackets & Screws
  	8 x Receiver Mounting Brackets & Screws
  	Multi-country Power Supply (UK, EU, US & AUS)
  	Lindy Manual
  Product Number	38262
  EAN	4002888382625
