• Lindy 70m Cat.6 4 Port HDMI 4K30 & IR Splitter Extender with Loop Out | 38155

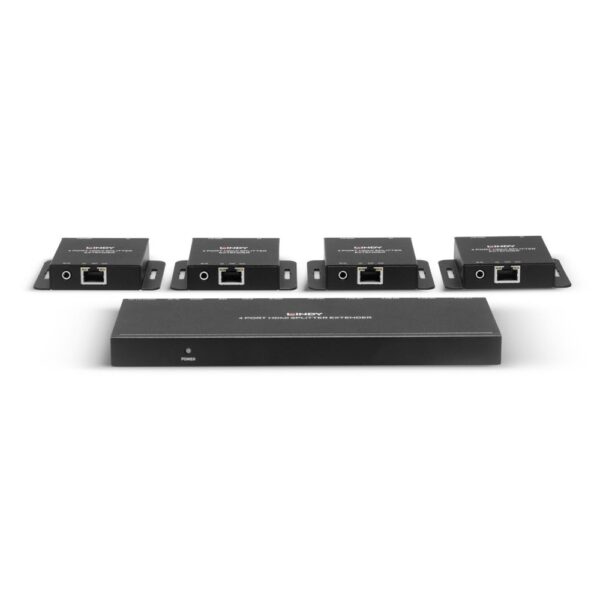

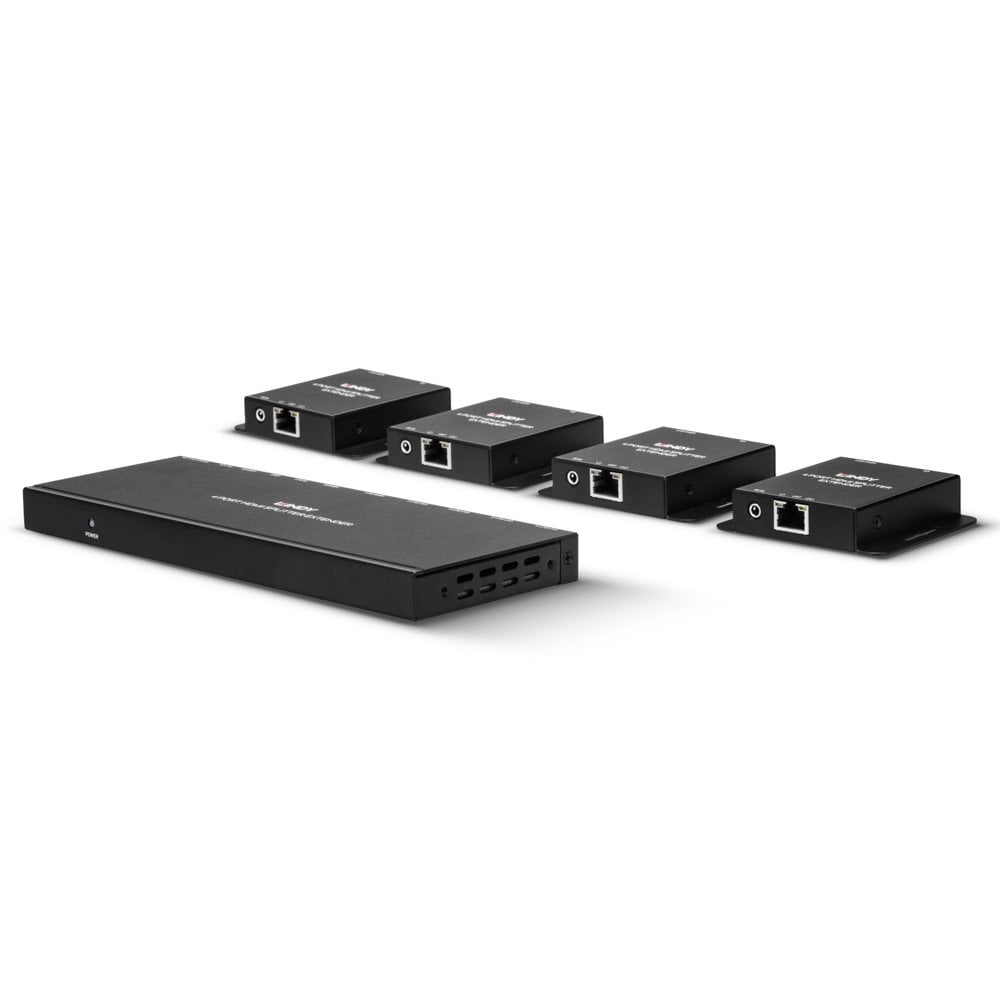

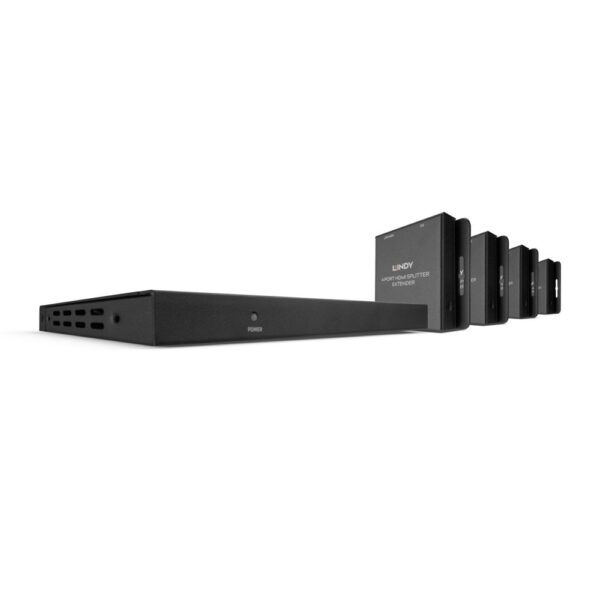

  The Lindy 70m Cat.6 4 Port HDMI® & IR Splitter Extender is a simple to use plug and play solution that allows users to extend an HDMI® signal up to 70m and then distribute that signal to four displays using low cost Cat.6 UUTP cable (not included). For added convenience IR signals (20-60kHz) can also be extended using the supplied IR receiver and emitter cables.

  Supporting resolutions up to 4K30, including 1080p 3D, the Splitter Extender is designed for use in AV and digital signage applications for a variety of settings such as home, education, business, retail and healthcare.

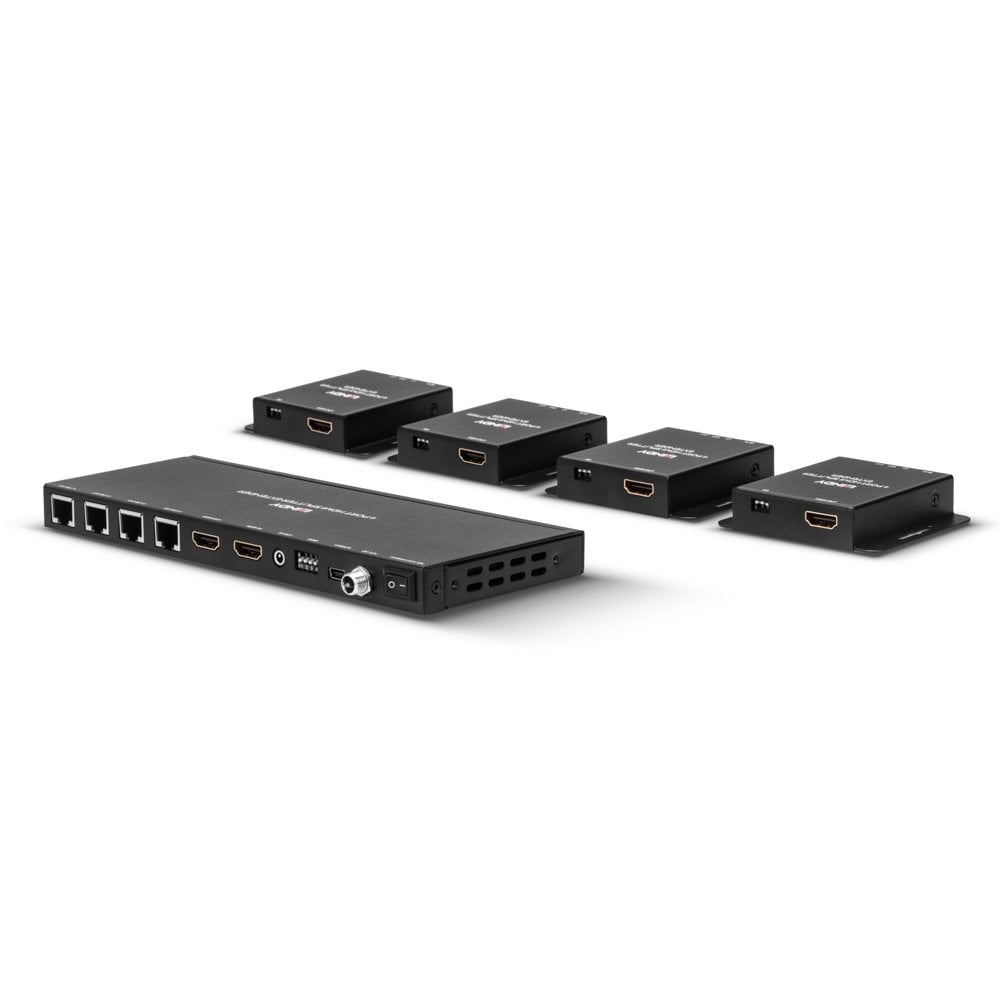

  An integrated HDMI® loop-through output on the transmitter unit enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone. For larger installations, the HDMI® loop-through port can also be used to cascade up to 3 transmitters allowing up to 12 displays to be connected to a single source.

  The HDMI loop-through port also allows the Splitter Extender to clone the EDID of a connected display. An integrated EDID emulation system provides 9 EDID presets for ultimate compatibility with a variety of EDID enabled devices.

  Power over Cable (PoC) functionality provides power for the complete installation using only a single power supply connected to the transmitter – a perfect solution for retro fit installations where receivers may be located away from a mains power supply. The power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur. For added convenience the Splitter Extender’s slim design and integrated mounting brackets make it easy to install in limited spaces behind modern flat screen displays.

  Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

• Category	Feature	Details
  Specifications	AV Interface	HDMI®
  	Interface Standard	HDMI® 1.4
  	Supported Bandwidth	10.2Gbps
  	Maximum Distance	70m (1920×1080@60Hz); 40m (3840×2160@30Hz 4:4:4 8bit)
  	Maximum Resolution	3840×2160@30Hz 4:4:4 8bit
  	HDCP Support	HDCP 1.4
  	EDID Pass Through	Preset, Cloning Function
  	Supported Audio	Up to 7.1 (Pass-through)
  	IR Support	20-60 kHz
  	CEC Support	–
  	Transmission Medium	1 x Cat.6 (per receiver)
  	Special Features	PoC (Power over Cable)
  Connectors	Transmitter Input	HDMI® (Female)
  	Transmitter Output	4 x RJ45 (Female), HDMI® (Female), IR (Female)
  	Receiver Input	RJ45 (Female), IR (Female)
  	Receiver Output	HDMI® (Female)
  	Bidirectional Ports	N/A
  	Power	5.5/2.1mm DC socket
  Physical Properties	Dimensions WxHxD	Transmitter: 210x83x17mm (8.27×3.27×0.67in)
  		Receivers: 79x68x17mm (3.11×2.68×0.67in) (per unit)
  	Housing Material	Metal
  	Net Weight	Transmitter: 0.443kg (0.98lb); Receiver: 0.131kg (0.29lb) per unit
  	Operating Temperature	0°C – 40°C (32°F – 104°F)
  	Storage Temperature	-20°C – 60°C (-4°F – 140°F)
  	Humidity	20-90% RH (non-condensing)
  	Power Requirements	12VDC 2.5A
  	Colour	Black
  Miscellaneous	Packaging Type	Carton Box
  	Packaging Dimensions	310x162x74mm (12.21×6.38×2.91in)
  	Gross Weight	1.516kg (3.34lb)
  	Warranty (Years)	2
  	Certified	CE, UKCA, FCC, RoHS, REACH
  Package Contents	Contents	Splitter transmitter unit, 4 x Receiver unit, IR emitter cable, 4 x IR receiver cable, 2 x Mounting brackets with screws, Multi-Country Power Supply (EU, UK, US & AUS), Lindy manual
  Purchasing Information	No.	38155
  	EAN	4002888381550
