Lindy 7 Port USB 3.2 Gen 2 Metal Hub | 43275

• Description
• Specifications

• Lindy 7 Port USB 3.2 Gen 2 Metal Hub | 43275

  The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.

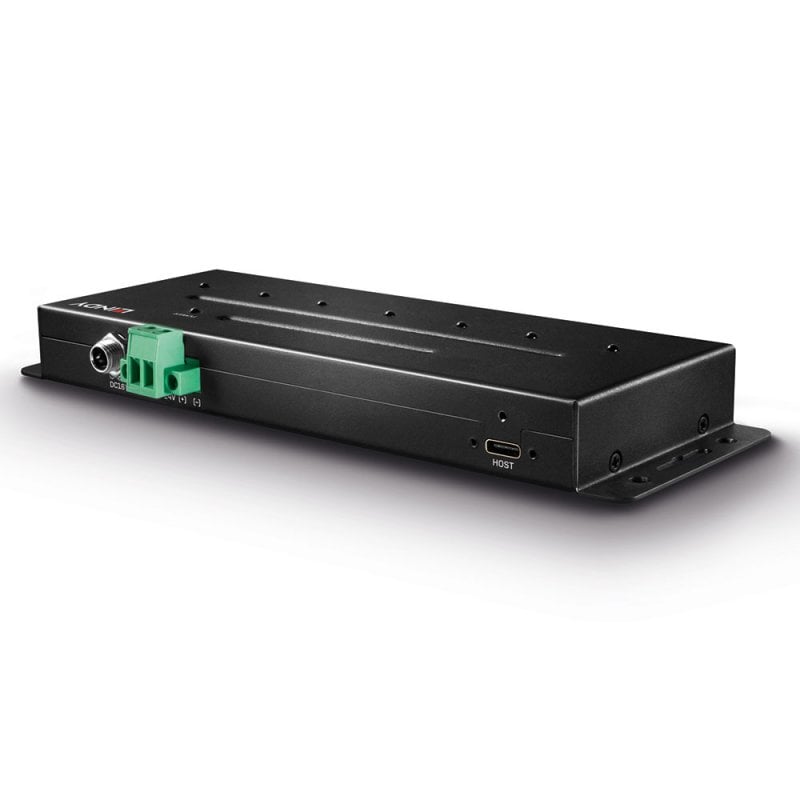

  This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.  With  robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

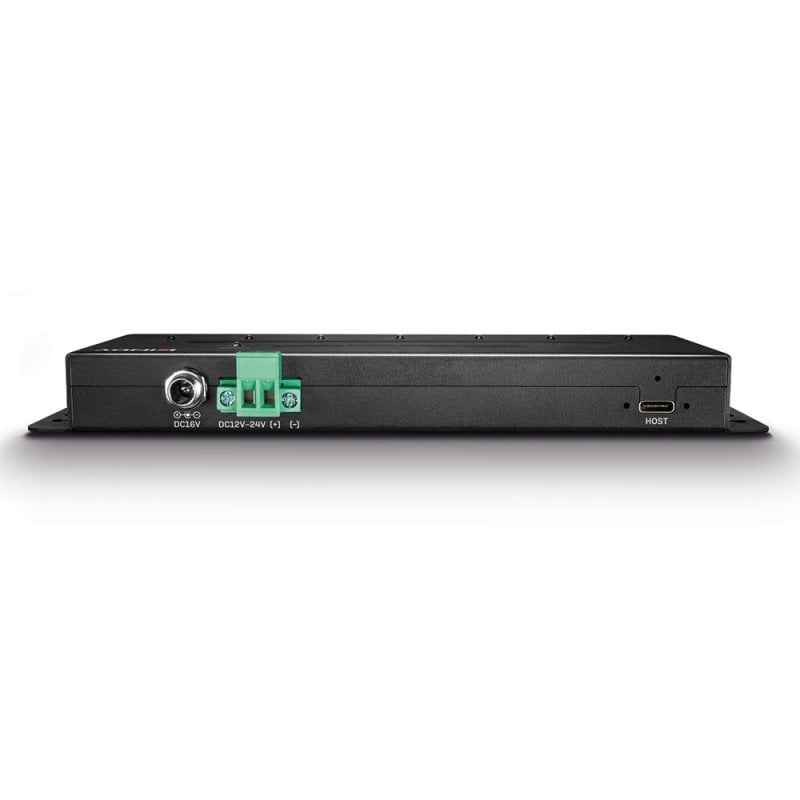

  Each port features individual short circuit protection – and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.

  Information about USB 3.0, 3.1 & 3.2

  USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
  USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
  USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

• Category	Details
  Specifications
  USB Standard	USB 3.2 / 3.1 Gen 2
  Supported Bandwidth	10Gbps
  Chipset	2x VL820
  Compatibility	USB Type C equipped computers, Thunderbolt 3
  Power Delivery	–
  Special Features	Integrated mounting brackets, USB-C locking cable support, Terminal Block
  Connectors
  Inputs	1 x USB Type C (Female)

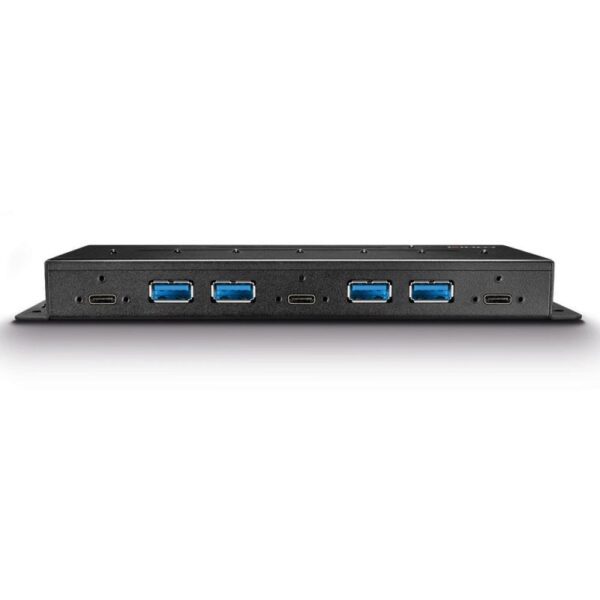

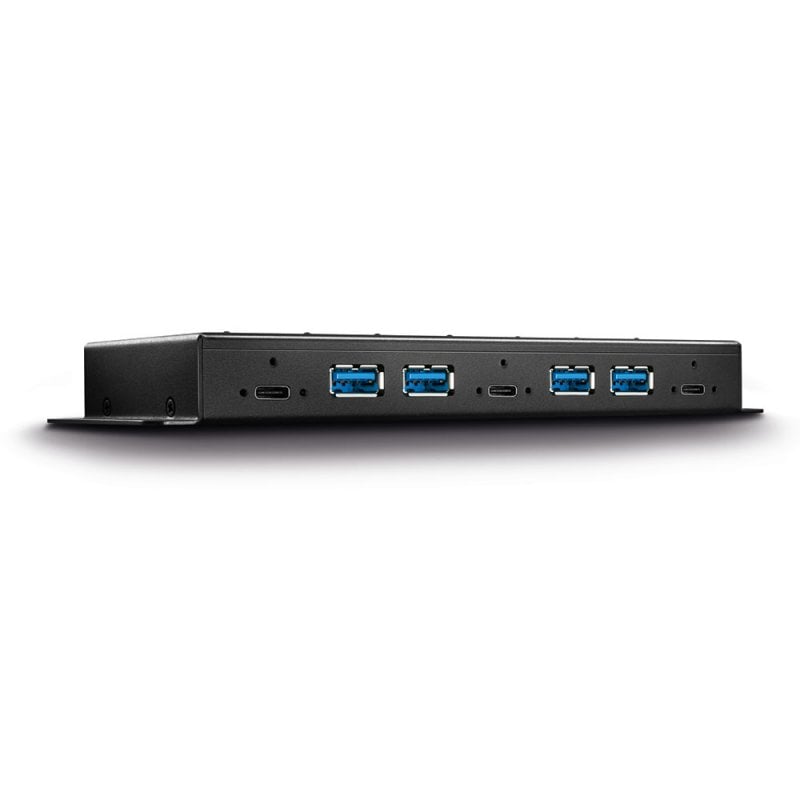

  Outputs	3 x USB Type C (Female), 4 x USB Type A (Female)
  Power	DC screw connector
  Physical Properties
  Dimensions	184.5×64.3x20mm (7.26×2.53×0.79in)
  Cable Length	–
  Housing Material	Metal
  Net Weight	0.3kg (0.66lb)
  Operating Temperature	0°C – 50°C (32°F -122°F)
  Storage Temperature	-20°C – 60°C (-4°F -140°F)
  Humidity	90% RH (non-condensing)
  Power Requirements	16VDC 3A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	260x180x70mm (10.24×7.09×2.76in)
  Gross Weight	0.7kg (1.54lb)
  Warranty	2 years
  Certified	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
  Package Contents	7 Port USB 3.2 Gen 2 Metal Hub, USB Cable, Power Supply, Lindy Manual
  Purchasing Information	No.: 43275, EAN: 4002888432757
