• Lindy 7.5m DVI-D Dual Link Cable, Anthra Line | 36225

  From the Lines cable connectivity concept developed by Lindy, Anthra Line DVI-D Dual Link cables are the professional choice for high resolution connections in commercial AV and IT installations.

  Anthra Line DVI-D Dual Link are premium cables that feature triple shielded construction with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

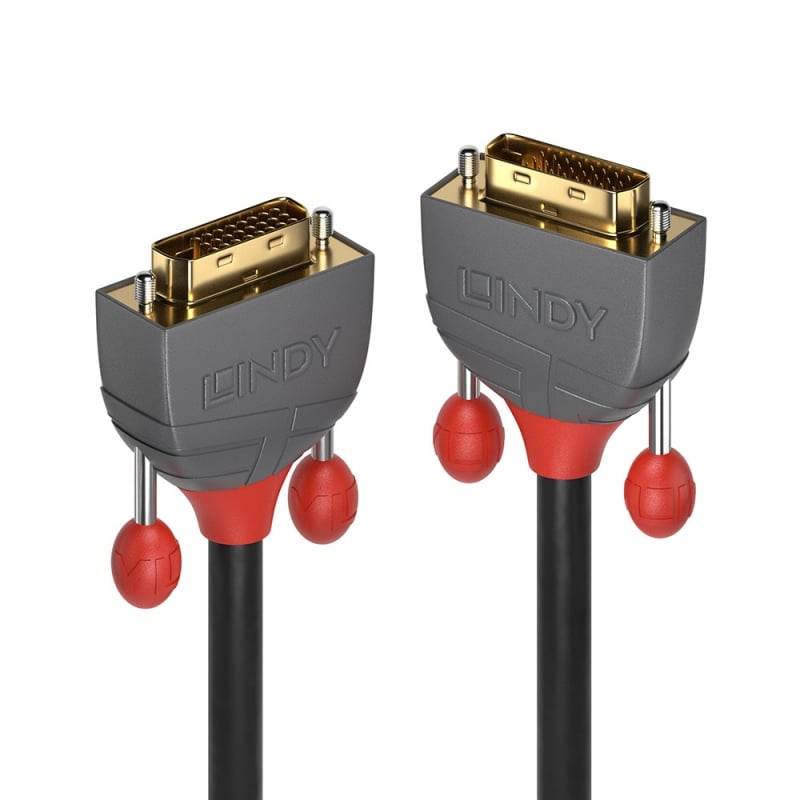

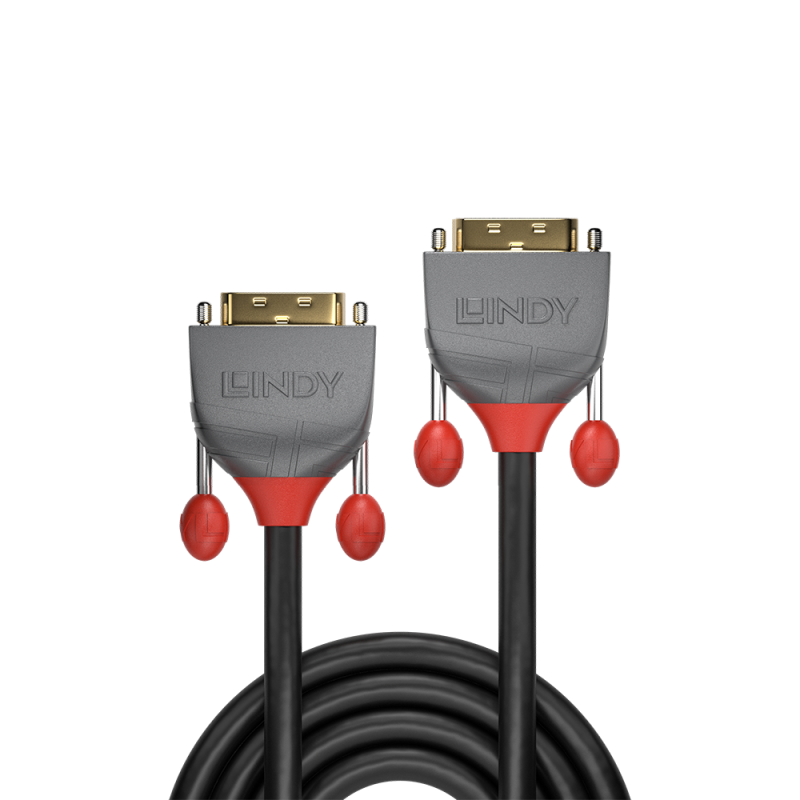

  The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.

  Anthra Line DVI-D Dual Link cables support resolutions up to 2560×1600@60Hz including HDTV resolutions up to 1080p.

  Anthra Line DVI-D Dual Link cables are available in lengths of 0.5m to 20m.

• Category	Details
  Connectors
  Connector A	DVI-D Male (Dual Link)
  Connector B	DVI-D Male (Dual Link)
  Housing Material	PVC
  Connector Plating	24K Gold 1µm
  Pin Construction	Brass
  Pin Plating	24K Gold 1µm
  Dimensions (WxDxH)	39.5×16.5×44.5mm (1.56×0.65×1.75in)
  Cable Construction
  Length	7.5m (24.61ft)
  Standard	DVI-D Dual Link
  Colour	Black
  Type	Round
  Jacket Diameter	8.6mm (0.34in)
  Jacket Material	PVC
  Conductor Material	Tinned Copper
  Conductor Gauge	28AWG
  Shielding	Copper Braid 85%
  Specifications
  Supported Bandwidth	9.9 Gbps
  Maximum Resolution	2560×1600@60Hz
  Nominal Attenuation	1 – 825Mhz < 8dB
  Minimum Bend Radius	86mm (3.39in)
  Operating Temperature	-20°C to 80°C (-4°F to 176°F)
  Storage Temperature	-25°C to 85°C (-13°F to 185°F)
  Miscellaneous
  Packaging Type	Polybag
  Warranty	10 Years
  Certifications	RoHS, REACH, UL
  Purchasing Info
  Part Number	36225
  EAN	4002888362252
  Available Lengths
  36220	0.5m (1.64ft)
  36221	1m (3.28ft)
  36222	2m (6.56ft)
  36223	3m (9.84ft)
  36224	5m (16.44ft)
  36225	7.5m (24.61ft)
  36226	10m (32.81ft)
  36227	15m (49.21ft)
  36228	20m (65.62ft)
