• Lindy 50m Cat.6 DVI-D Single Link, USB & Audio KVM Extender – 39377

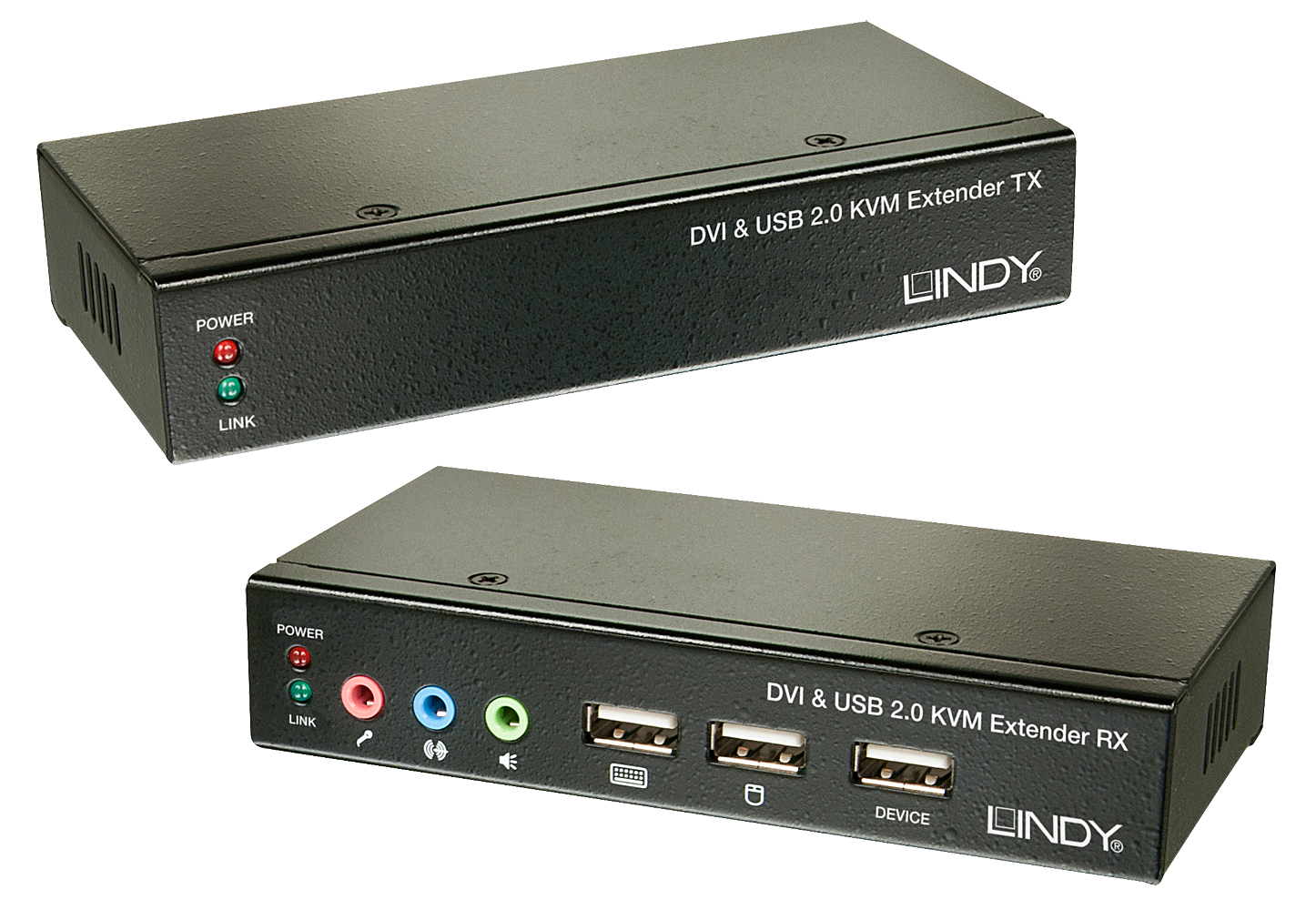

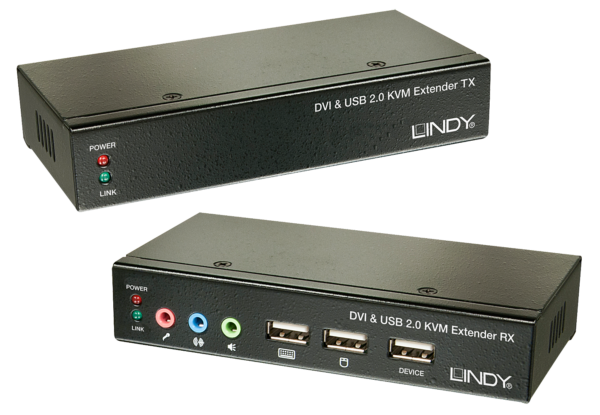

  The Lindy Cat.6 DVI-D Single Link, USB & Audio KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 50m using two Cat.6 RJ45 cables. Supports single link resolutions up to 1920×1200 and HDMI signals including Full HD 1920×1080, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit, the transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver. It’s also possible to connect a USB 2.0 device or add a USB hub to connect additional USB peripherals such as storage or printers.

  To adjust video signal, you can rotate the EQ switch on the rear panel of the receiver unit while an inbuilt USB to Audio converter allows users to connect speakers, microphones and a line-in interface.

  To get the best performances, Lindy suggest using two identical Cat.6 Solid Core cables.

  This extender provides a simple plug & play installation, no additional drivers required, great for both professional and first time users.

  Extends DVI-D, USB and Audio up to 50m using two Cat.6 cables

  Supports DVI Single Link resolutions up to 1920×1200

  Supports USB keyboard and mouse & an additional USB 2.0 device

  Easy, user friendly installation – no software required

  2 year warranty

• Category	Detail
  Specifications
  AV Interface	DVI-I
  Console Interface	USB
  Interfaces Standard	DVI-D Single Link, USB (HID), USB 2.0
  Supported Bandwidth	165MHz
  Maximum Distance	50m (164.04ft)
  Maximum Resolution	1920×1200@60Hz
  HDCP Support	1.4
  Supported Audio	2CH Audio supported over USB converter
  Separate Audio Ports	3 x 3.5mm (Female)
  Transmission Protocol	–
  Transmission Medium	2 x Cat.6
  Laser Class (only for Fibre)	–
  Wavelength (only for Fibre)	–
  Special Features	–
  Connectors

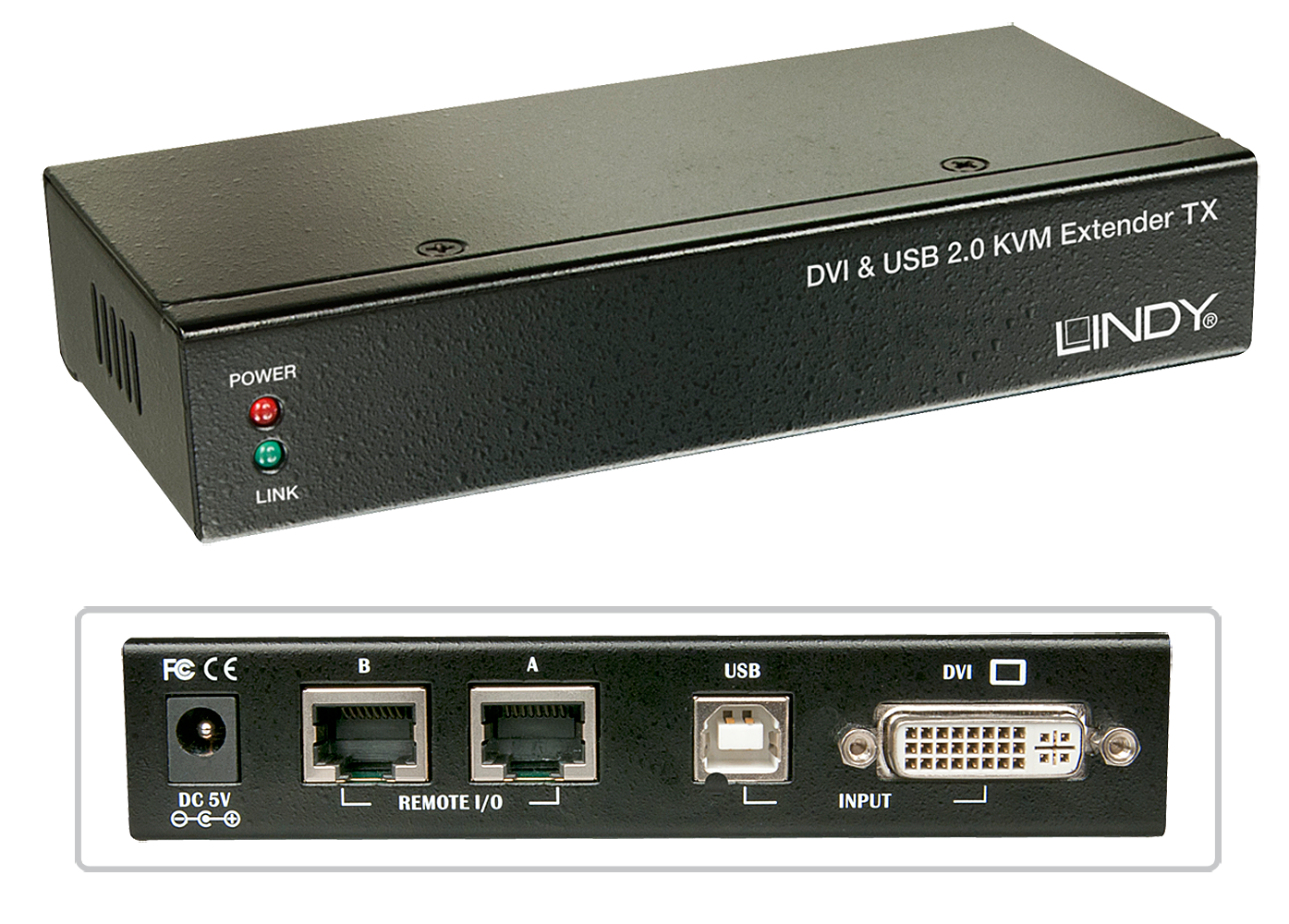

  Transmitter KVM Interfaces	DVI-I (Female), USB Type B (Female)
  Transmitter Extension Port	2 x RJ45

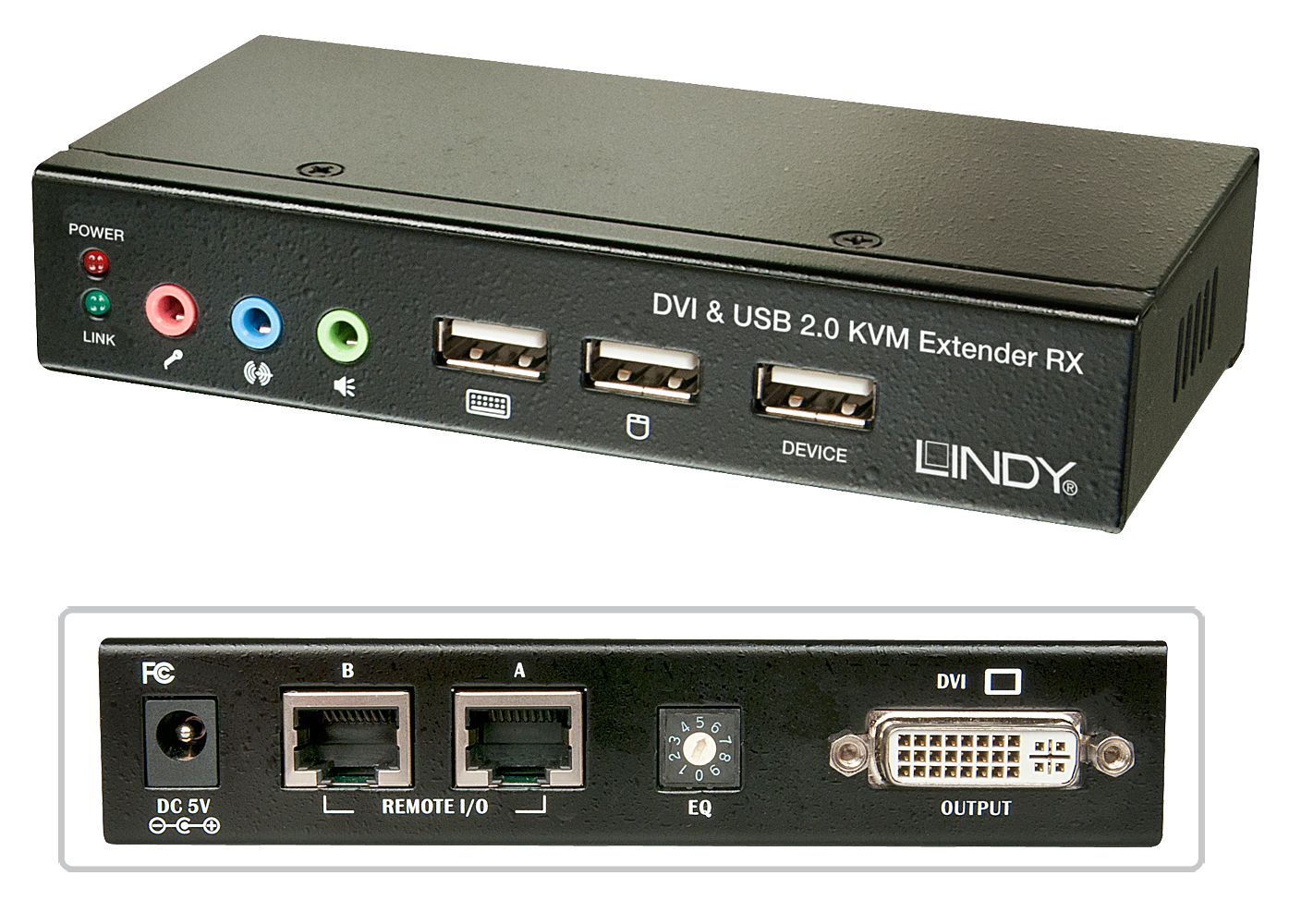

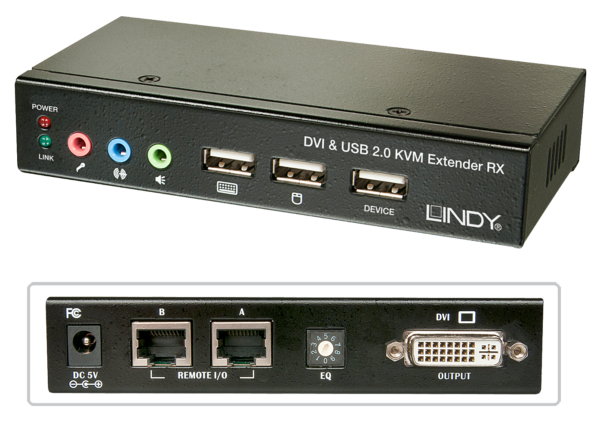

  Receiver Console Interface	DVI-I (Female), 3 x USB Type A (Female), 3 x 3.5mm (Female)
  Receiver Extension Port	2 x RJ45
  Bi-directional Ports	–
  Other Interfaces	–
  Power	5.5/2.5mm DC socket
  Physical Properties
  Dimensions (approx.) WxDxH	130x70x170mm (5.12×2.76×6.69in) (each unit)
  Housing Material	Metal
  Net Weight	0.33kg (0.73lb) (each unit)
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 70°C (-4°F – 158°F)
  Humidity	10 – 80% RH (non-condensing)
  Power Requirements	5VDC 2A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	205x135x180mm (8.07×5.31×7.09in)
  Gross Weight	1.2kg (2.65lb)
  Warranty (Years)	2
  Certification	CE, FCC, RoHS & REACH
  Package Content
  Transmitter Unit
  Receiver Unit
  1 x DVI-D cable, 1.2m
  1 x USB Type A/B cable, 1.2m
  1 x USB DC cable, 1.5m
  1 x Multi-Country Power Supply (EU, UK, US, AUS)
  Lindy Manual
  Purchasing Information
  No.	39377
  EAN	4002888393775
