Lindy 500m Fibre Optic DVI-D Dual Link Extender | 38106

• Description
• Specifications
• Downloads

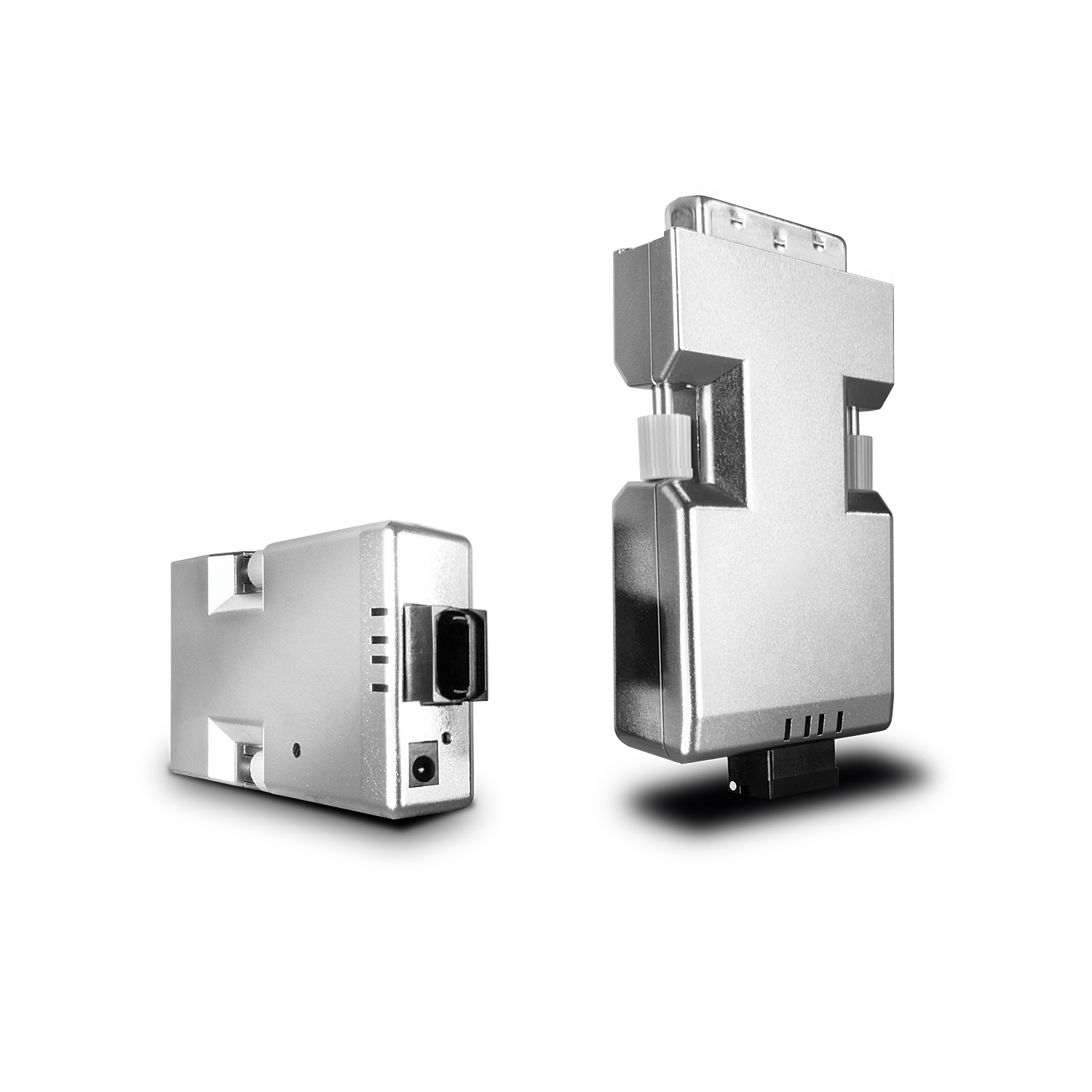

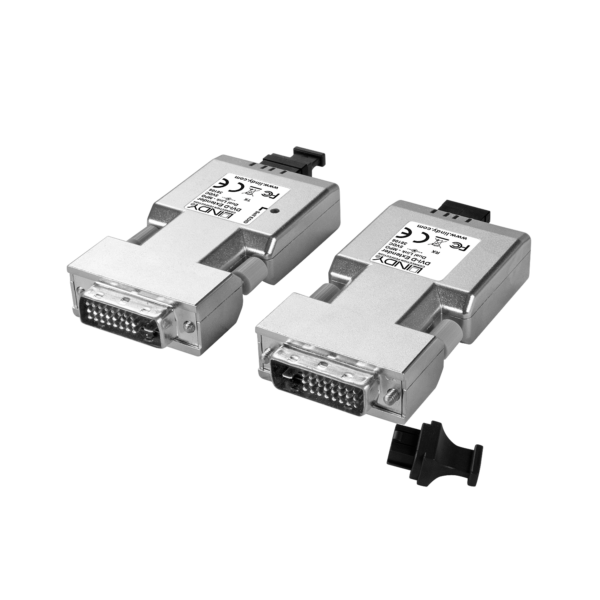

• Lindy 500m Fibre Optic DVI-D Dual Link Extender | 38106

  Easy to set up and install this compact Fibre Optic DVI-D Dual Link Extender is a cost effective, high quality solution for sending DVI-D signals up to 500m without any compression or degradation over MPO Multimode cable.

  Unlike other solutions, this extender uses just a single fibre cable to reach such great lengths. The system comprises of transmitter and receiver modules that connect directly to the digital source & display via DVI-D. The modules are then connected using a single, MPO fibre optic cable (not included).

  Please note – We recommend using 50/125µ or 62.5/125µ MPO multimode fibre cable. Please contact Technical Support for further advice.

  Package Contents
  1 x Transmitter Unit
  1 x Receiver Unit
  2 x multi country 5V 1A power supplies
  LINDY Manual

• Category	Specification
  AV Interface	DVI-D
  Interface Standard	DVI-D 2.0 (Dual Link)
  Supported Bandwidth	9.9 Gbps
  Maximum Distance	500m (1640.4ft)
  Maximum Resolution	2560×1600@60Hz
  HDCP Support	–
  EDID Pass Through	–
  Supported Audio	–
  Separate Audio Ports	–
  IR Support	–
  CEC Support	–
  Serial Interface	–
  Transmission Protocol	–
  Transmission Medium	1 x MPO
  Laser Class	Class 1
  Wavelength	850nm
  Chipset	–
  Special Features	Self-EDID learning
  Connectors
  Transmitter Input	DVI-D (Male)
  Transmitter Output	MPO (Female)
  Receiver Input	MPO (Female)
  Receiver Output	DVI-D (Male)
  Bidirectional Ports	–
  Power	3.5/1.35mm DC socket
  Physical Properties
  Dimensions (WxDxH)	40x70x15mm (1.57×2.76×0.59in) per unit
  Housing Material	Metal
  Net Weight	0.1kg (0.22lb) per unit
  Operating Temperature	0°C – 50°C (32°F – 122°F)
  Storage Temperature	-20°C – 65°C (-4°F – 149°F)
  Humidity	10 – 75% RH (non-condensing)
  Power Requirements	5VDC <150mA (TX) / 5VDC 250mA (RX)
  Colour	Silver
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	260x170x70mm (10.24×6.69×2.76in)
  Gross Weight	0.8kg (1.76lb)
  Warranty (Years)	2
  Certifications	CE, FCC, RoHS & REACH
  Package Contents
  Contents	Transmitter unit, Receiver unit, 2x Multi-Country Power Supplies (EU, UK, US & AUS), Lindy manual
  Purchasing Information
  No.	38106
  EAN	4002888381062

• Description	Downloads
  Manual	Download
