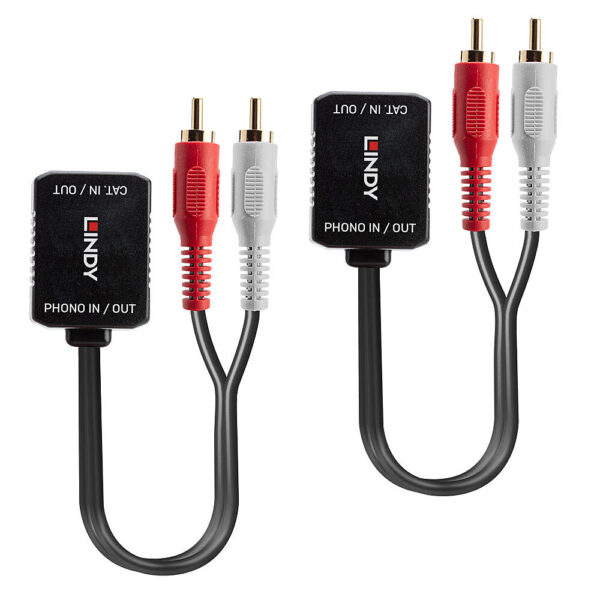

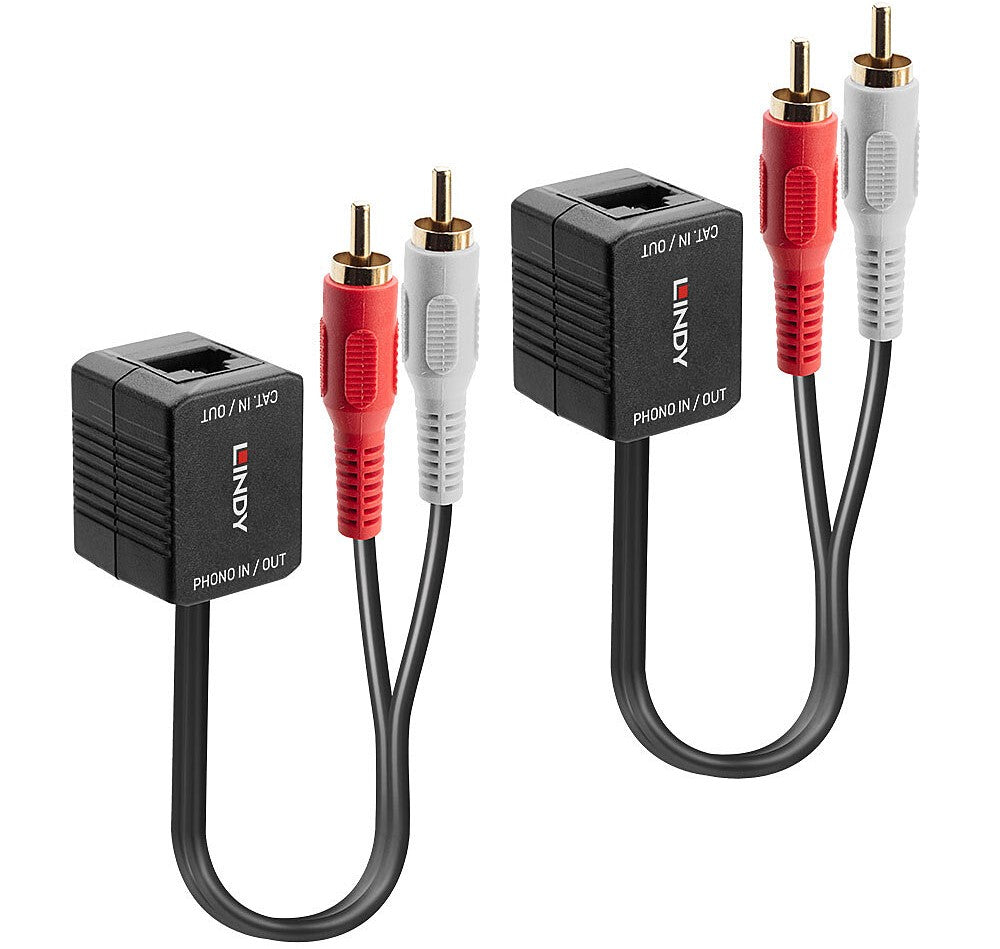

Lindy 500m Cat.6 Phono Analogue Audio Extender – 70460
Extend phono analogue audio up to 500m over standard network cable
Passive extension with no external power required
Pigtail style housing with no requirement for additional audio cables with no requirement for additional audio cables
Interoperable housings – use either unit as a Tx or Rx
2 Year Warranty
The Lindy 500m Cat.6 Phono Analogue Audio Extender is a compact solution for extending stereo audio signals to much longer distances over easily accessible network cable. With a compact pigtail style design and no requirement for additional power, the extender provides a minimalistic extension solution that can be discreetly installed alongside source devices and analogue speakers. The transceiver units provide seamless interoperability, allowing for use of either unit at any side of the setup.
-
Category Details Specifications AV Interface – Interface Standard – Supported Bandwidth – Maximum Distance 500m (1640.4ft) Maximum Resolution – HDCP Support – EDID Pass Through – Supported Audio 2Ch Stereo Audio Separate Audio Ports – IR Support – CEC Support – Serial Interface – Transmission Protocol – Transmission Medium 1 x Cat.5e / 6 Laser Class (only for Fibre) – Wavelength (only for Fibre) – Chipset – Special Features – Connectors Transmitter Input Phono (Male) Transmitter Output RJ-45 (Female) Receiver Input RJ-45 (Female) Receiver Output Phono (Male) Bi-directional Ports – Power – Physical Properties Dimensions (WxDxH) 23x31x25mm (0.91×1.22×0.98in) Housing Material Plastic Net Weight 0.041kg (0.09lb) Operating Temperature 0°C – 55°C (32°F – 131°F) Storage Temperature -20°C – 85°C (-4°F – 185°F) Humidity 0 – 95% RH (non-condensing) Power Requirements – Colour Black Miscellaneous Packaging Type Polybag Packaging Dimensions 174x194mm (6.85×7.64in) Gross Weight 0.05kg (0.11lb) Warranty (Years) 2 Certificated REACH & California Proposition 65 Package Content Included 500m Cat.6 Phono Analogue Audio Extender Purchasing Information No. 70460 EAN 4002888704601
