• Lindy 5 Port HDMI 18G Switch – 38233

  Switches between 5 HDMI source devices when connected to a single display
  Supports 18G resolutions up to 4K@60Hz, with additional support for HDR
  Flexible control via push button, IR remote and auto-switching
  Compact, minimalist design to ensure no distraction from the display or installation
  2 year warranty

  HDMI switches are reliable solutions for controlling and switching multiple HDMI source devices and outputting to a single display.

  The Lindy 5 Port HDMI 18G switch is a compact, high quality solution for effortlessly switching between 5 HDMI source devices when connected to a single display.

  Supporting HDMI 18G signals, this switch allows for the transmission of detailed 4K Ultra HD resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. The switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations. HDCP 2.2 support ensures there are no compatability issues with a variety of 4K content from source devices including set top boxes, Blu-Ray players and 4K HDR media players.

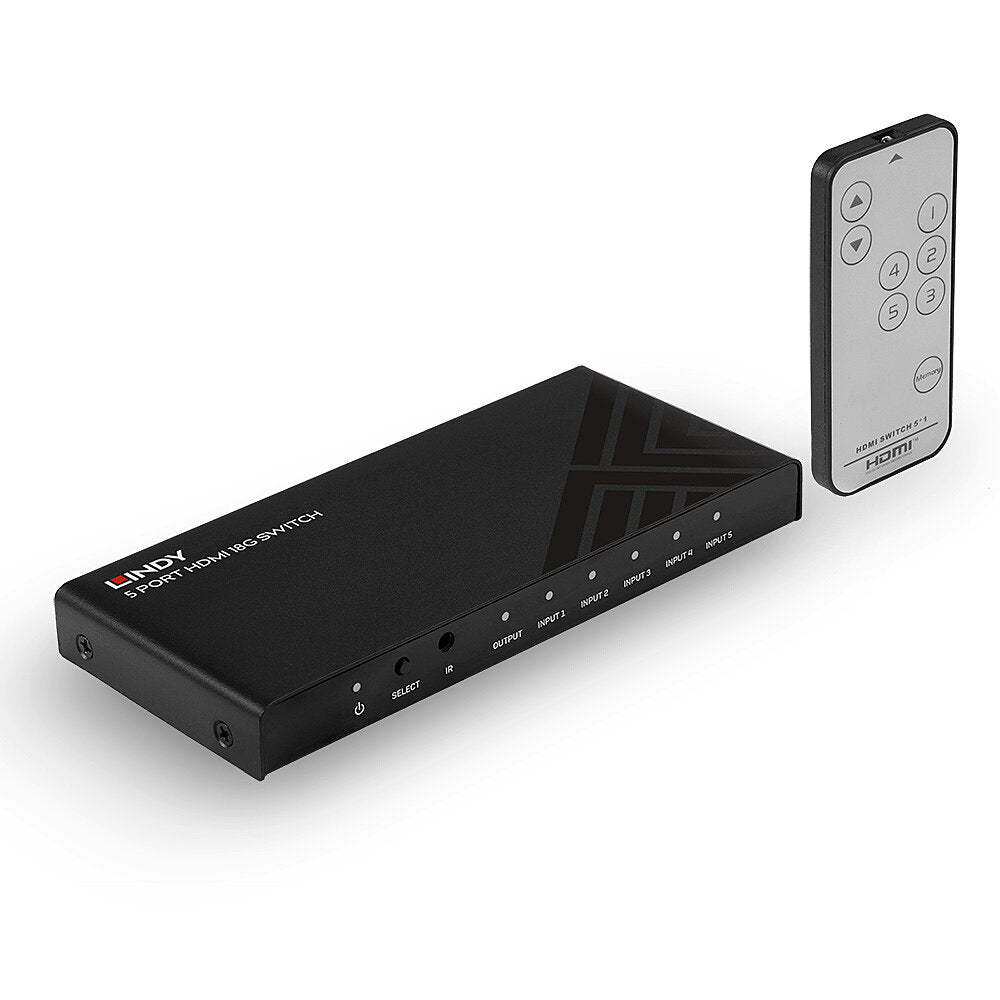

  This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.

• Specifications
  AV Interface	HDMI
  Interface Standard	HDMI 2.0
  Supports Bandwidth	18Gbps
  Maximum Resolution	3840×2160@60Hz 4:4:4 8bit
  HDCP Support	HDCP 2.2
  Supported Audio	Audio Pass-through
  Separate Audio Ports	–
  IR Support	38kHz
  CEC Support	Yes
  Serial Interface	–
  Special Features	HDR10 & Dolby Vision Support
  Connectors
  Input	5 x HDMI Type A (Female)
  Output	HDMI Type A (Female)
  Control	–
  Power	Micro-B (Female)
  Physical Properties
  Dimensions (WxDxH)	154x23x69mm (6.06×0.91×2.72in)
  Housing Material	Metal
  Net Weight	0.25kg (0.55lb)
  Operating Temperature	0°C – 45°C (32°F – 113°F)
  Storage Temperature	-10°C – 80°C (14°F – 176°F)
  Humidity	5 – 90% RH (non-condensing)
  Power Requirements	5VDC 1A
  Colour	Black
  Miscellaneous
  Packaging Type	Carton Box
  Packaging Dimensions	207x56x187mm (8.15×2.2×7.36in)
  Gross Weight	0.46kg (1.01lb)
  Warranty (Years)	2
  Certificated	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package content
  5 Port HDMI Switch
  Multi-country Power Supply (UK, EU, US & AUS)
  USB-A to Micro-B Cable
  Remote Control and CR2025L Battery
  Lindy Manual
  Purchasing Information
  No.	38233
  EAN	4002888382335

• Description	Downloads
  User Manual	Download
