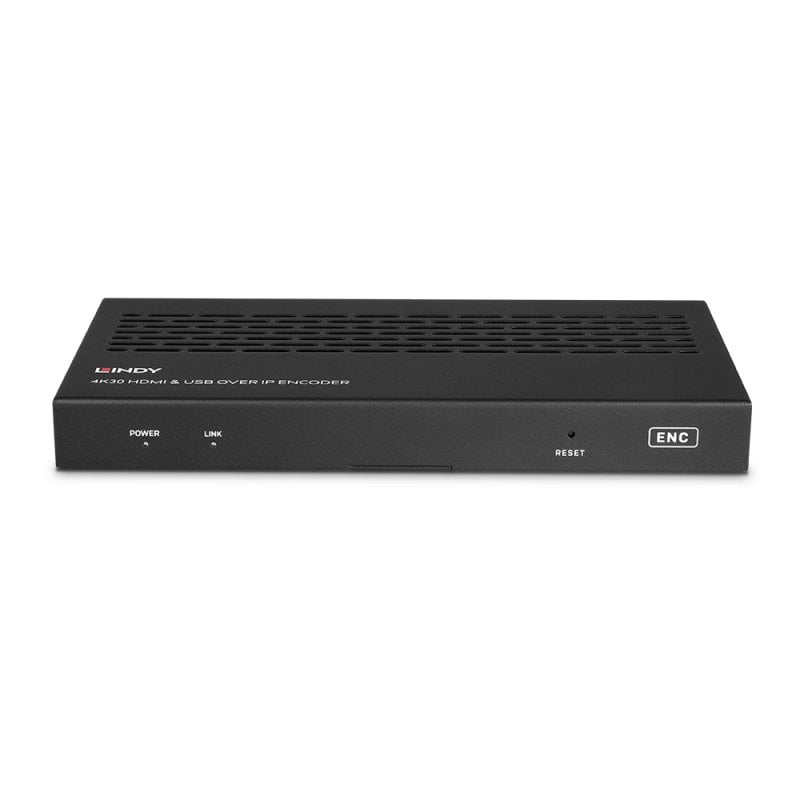

• Lindy 4K30 HDMI & USB over IP System – Encoder | 38396

  The Lindy 4K30 HDMI & USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).

  Please note: All modules are sold separately so you can build and scale according to your requirements.

  One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI® display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.

  Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.

  As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.

  This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.

  The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.

• Category	Specification
  AV Interface	HDMI®
  Interface Standard	HDMI® 2.0
  Supported Bandwidth	18Gbps
  Maximum Distance	100m (328.08ft)
  Maximum Resolution	4K@30Hz 4:4:4
  HDCP Support	2.2
  EDID Pass Through	–
  Supported Audio	Pass Through
  Separate Audio Ports	3-pin
  IR Support	20 – 60KHz
  CEC Support	Pass Through
  Serial Interface	RS-232
  Transmission Protocol	IP
  Transmission Medium	Cat.6
  Special Features	PoE, API support

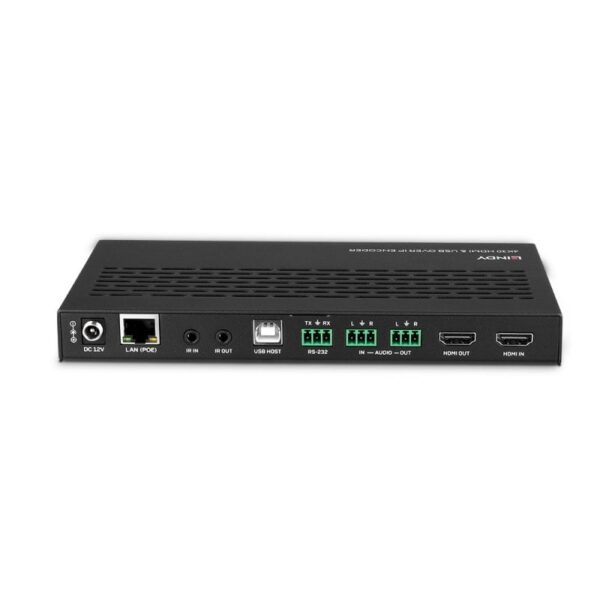

  Transmitter Input	HDMI® (Female), USB Type B (Female), 3-pin Audio (Female), 3.5mm IR (Female)
  Transmitter Output	HDMI® (Female), 3-pin Audio (Female), 3.5mm IR (Female)
  Bi-directional Ports	RS-232 3-Pin Terminal Block
  Power	5.5/2.1mm
  Physical Properties	Dimensions (approx.) WxDxH: 204x134x21.5mm (8.03×5.28×0.85in)
  	Housing Material: Metal
  	Net Weight: 0.78kg (1.72lb)
  	Operating Temperature: 0°C – 40°C (32°F -104°F)
  	Storage Temperature: -20°C – 60°C (-4°F – 140°F)
  	Humidity: 20 – 90% RH (non-condensing)
  	Power Requirements: 12V 1A
  	Colour: Black
  Miscellaneous	Packaging Type: Carton Box
  	Packaging Dimensions: 245x185x75mm (9.65×5.28×2.95in)
  	Gross Weight: 1.02kg (2.25lb)
  	Warranty (Years): 2
  	Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
  Package Contents	4K30 HDMI® & USB over IP Encoder
  	IR Emitter Cable, 1.5m
  	IR Receiver Cable, 1.5m
  	2 x Mounting Ears & 4 x Screws
  	3 x 3-Pin Terminal Block
  	Multi-country Power Supply (UK, EU, US & AUS)
  	Lindy Manual
  Purchasing Information	No.: 38396
  	EAN: 4002888383967
